YANMAR 148616-01420 Cover, Block

Write a Review
$478.87
SKU:
148616-01420
Schematic Object Key:
24

YANMAR 148616-01420 Cover, Block

$478.87

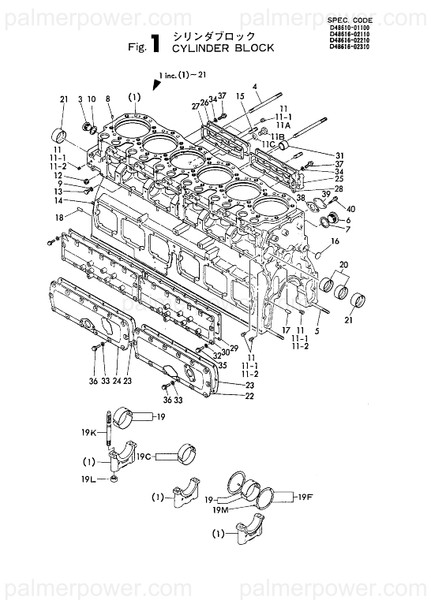

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148616-01420 Cover, Block

Schematic Object Key : 24

Product Description : COVER, BLOCK

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BLOCK ASSY, CYLINDER 748616-01561
3 PLUG 145610-01230
4 STUD, M16X185 148610-01740
5 STUD, M12X115 148616-01750
6 PLUG, SCREW 126650-11750
7 GASKET, 45 126650-11760
8 PIN, PARALLEL M8X10 22312-080100
9 GASKET, 12X1.0 23414-120000
10 GASKET, 33X1.0 23414-330000
11 PLUG, PT1/8 124060-01050
11-1 PLUG, R01 23871-010000
11-2 PLUG, R01 23871-010000
11A PLUG, R02 23871-020000
11B PLUG, 12 23887-120002
11C GASKET, 12X1.0 23414-120000
12 PLUG, R04 23871-040000
13 PLUG, 12 23887-120002
14 STUD M12X 28 26212-120282
15 STUD, M16X 32 26232-160322
16 PLUG, 35 27241-350000
17 PIN, PARALLEL M12X28 22312-120280
18 PIN, PARALLEL M12X28 22312-120280
19 BEARING, MAIN 148616-02300
19C BEARING, MAIN 148616-02320
19F BEARING, THRUST 148616-02230
19K BOLT, METAL CAP 148616-02070
19L NUT 145610-02090
19M PIN, PARALLEL M6X10 22312-060100
20 BEARING, CAMSHAFT 148616-02420
21 BEARING, CAMSHAFT 148616-02400
22 COVER, BLOCK 148616-01400
23 GASKET 148616-01410
23-1 GASKET, COVER 148616-01411
24 COVER, BLOCK 148616-01420
25 COVER 148616-01461
26 COVER 148616-01471
27 GASKET 148616-01481
27-1 GASKET, COVER 148616-01482
28 GASKET 148616-01491
28-1 GASKET, COVER 148616-01492
29 GASKET 148616-01762
29-1 GASKET, COVER 148616-01763
30 COVER 148616-01771
31 COLLAR 148616-01880
32 WASHER, 10 22137-100000
33 WASHER, 10 22137-100000
34 WASHER, 10 22137-100000
35 BOLT, M10X 25 PLATED 26106-100252
36 BOLT, M10X 25 PLATED 26106-100252
37 BOLT, M10X 22 PLATED 26106-100222
38 GASKET 144626-01650
38-1 GASKET 144626-01651
39 FLANGE, 25 23221-250001
40 BOLT, M10X 25 PLATED 26106-100252
