YANMAR 148616-51640 Nut

Write a Review
$45.52
SKU:
148616-51640
Schematic Object Key:
50

YANMAR 148616-51640 Nut

$45.52

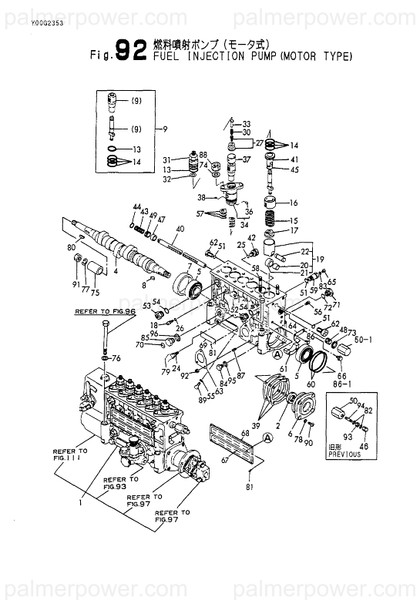

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148616-51640 Nut

Schematic Object Key : 50

Product Description : NUT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748672-51800
1-1 PUMP ASSY, INJECTION 748672-51251
2 OIL SEAL TC304508 136600-42480
4 SHAFT 148687-51030
5 BEARING 144626-51050
6 SUPPORT, CAMSHAFT 148016-51060
7 SUPPORT, CAMSHAFT B 144626-51070
8 KEY, 5X19 144626-51090
9 PLUNGER ASSY 736603-51600
13 O-RING 144626-51360
14 O-RING, S34 144626-51420
15 SPRING, PLUNGER 148616-51160
16 RETAINER, SPRING A 144626-51171
17 RETAINER, SPRING B 144626-51181
18 STOPPER 144626-51191
19 TAPPET ASSY 144626-51200
20 BUSH 144626-51210
21 ROLLER, TAPPET 144626-51220
22 PIN, ROLLER 144626-51230
24 STOPPER 144626-51271
25 O-RING, P9 144626-51281
26 O-RING, P6 144626-51290
27 VALVE ASSY, DELIVERY 148672-51300
27-1 VALVE ASSY, DELIVERY 148606-51300
30 SPRING, DELIV. VALVE 135210-51330
31 HOLDER, DELIVERY 144626-51340
32 PACKING 135210-51351
33 STOPPER, VALVE 145613-51360
34 SUPPORT ASSY, BARREL 148616-51390
36 PIN 144626-51410
37 DEFLECTOR 148616-51420
37-1 DEFLECTOR 148616-51421
38 PIN 144626-51430
39 SHIM SET, CAMSHAFT 144626-51451
40 RACK, CONTROL 144626-51500
41 PINION 144626-51511
42 SCREW 144626-51521
43 SPRING 135410-51530
44 WASHER 135410-51540
45 CIRCLIP 144626-51540
46 NUT 152623-51560
47 BUSH, RACK 144626-51580
48 SCREW 144626-51590
49 SCREW 144626-51600
50 NUT 148616-51640
50-1 NUT, CAP 144626-51641
51 O-RING 144626-51660
52 PLUG 144626-51670
53 PLUG 148616-51671
54 O-RING 144626-51680
55 WASHER, SEAL 144626-51700
56 PLUG 144626-51730
57 SHIM SET, ADJUSTING 144626-51751
58 BOLT 144626-51800
59 PROTECTOR, SPILL 144626-51830
60 O-RING, S71 144626-51840
61 BEARING 144626-51850
62 PROTECTOR, SPILL 148616-51860
63 GASKET 144626-51871
63-1 GASKET 124410-51861
64 POINTER 148687-51881
65 BOLT 122780-51900
66 BOLT 148606-51900
67 NAMEPLATE,CAUTION 148688-51910
68 LABEL 126616-51920
69 LABEL, MODEL NAME 148672-51920
70 LABEL 144626-51930
71 PLUG 144626-51940
72 O-RING, 1016 144626-51950
73 WASHER, SEAL M18 144626-51960
73-1 WASHER, SEAL 18 22190-180002
74 WASHER 144626-54581
75 SPACER, CAMSHAFT 140623-61500
76 WASHER, 10 22117-100000
77 SPRING WASHER 14 22212-140000
78 WASHER, 8 22287-080000
79 WIRE, 0.6 22451-060000
79-1 WIRE, 0.8 22454-080000
80 KEY, 7X 22 22512-070222
81 RIVET, 2.3X 3 22621-230030
82 GASKET, 8X1.0 23414-080012
83 GASKET, 6X1.0 23418-060000
84 PLUG 23881-120002
84-1 PLUG, 12 23887-120002
85 PLUG, 16 23887-160002
86 BOLT, M8X 16 PLATED 26106-080162
86-1 BOLT, M8X 16 PLATED 26106-080162
87 STUD, M6X 12 26226-060122
87-1 STUD, M6X 16 26226-060162
88 NUT, M10 26376-100002
89 BOLT, M6X 16 26450-060162
89-1 BOLT 148688-51840
90 BOLT, M8X 20 26450-080202
91 NUT, M14 26601-140002
92 NUT, M6 26716-060002
93 NUT, LOCK M8 26756-080002
94 SCREW, M8X32 26911-080322
95 SEAL WASHER 12S 43400-500450
95-1 WASHER, SEAL 12 22190-120002
96 SEAL WASHER 16 43400-500500
96-1 WASHER, SEAL 16 22190-160002
