YANMAR 148616-61400 Lever Assy, Control

Write a Review
$147.16
SKU:
148616-61400
Schematic Object Key:
54

YANMAR 148616-61400 Lever Assy, Control

$147.16

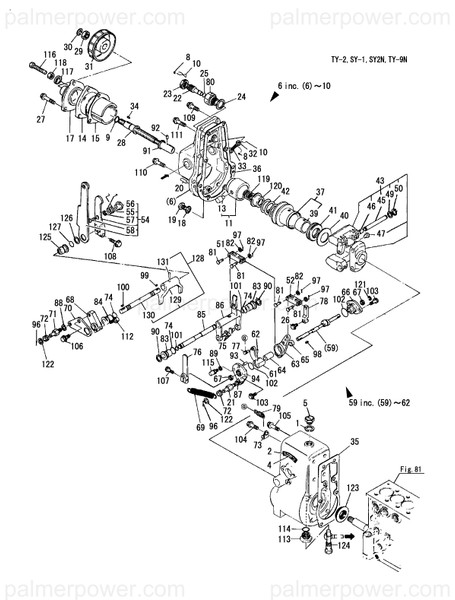

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148616-61400 Lever Assy, Control

Schematic Object Key : 54

Product Description : LEVER ASSY, CONTROL 148616-61400

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 SEAL WASHER 16 43400-500500
2 RIVET 137900-91451
4 PLATE 144626-61840
5 PLUG, 16 23887-160002
6 COVER, GOVERNOR CASE 744676-61641
8 LEAD 135210-61090
9 O-RING, 1AP11.0 24311-000110
10 WIRE 135210-61100
11 RETAINER, SPRING 148616-61361
13 STOPPER 135210-61380
14 GUIDE 144626-61450
15 GASKET 144626-61460
15-1 GASKET, GUIDE 144626-61461
17 BRACKET, HANDLE 148616-61780
18 SEAL WASHER 8 43400-500420
19 PLUG 8 23887-080002
20 PIN, PARALLEL M6X14 22312-060140
21 BOLT, SPRING B 144626-61900
22 BOLT, CONTROL 140673-61940
23 NUT 140673-61950
24 GASKET, 20X1.0 23414-200000
25 O-RING, 2P7.0 24312-000070
26 BOLT, M6X 16 PLATED 26106-060162
27 BOLT, M8X 30 PLATED 26106-080302
28 SHAFT W/BUSH 135600-61481
29 NUT, LOCK M12 26777-120002
30 CIRCLIP (7) 135200-61970
31 HANDLE 135600-61491
32 LOCK NUT 135210-51610
33 SCREW, SPEED ADJUST 135210-61080
34 KEY, 5X 12 22512-050120
35 GASKET 144626-61050
35-1 GASKET, CASE 144626-61051
36 GASKET 144626-61070
36-1 GASKET, CASE COVER 144626-61071
37 SHIFTER ASSY 148609-61330
39 BUSH, RETAINER 140673-61350
40 WASHER 140623-61310
41 THRUST BEARING 135210-61320
42 SPRING, GOVERNOR 148616-61720
43 WEIGHT ASSY,GOVERNOR 144626-61200
45 PIN, GOVERNOR WEIGHT 135210-61221
46 BUSH, WEIGHT PIN 135210-61230
47 RETAINER, WEIGHT 135210-61240
49 WASHER, 10 22117-100000
50 RING, 10 22242-000100
51 LINK, GOVERNOR 140673-61160
52 LINK, L47 144626-61170
54 LEVER ASSY, CONTROL 148616-61400
55 SPRING, LEVER 148616-61410
56 RETAINER, SPRING 148616-61440
57 WASHER, SPRING 5 22217-050000
58 SCREW, M5X16 26567-050162
59 SHAFT 748609-61510
61 LEVER 144626-61820
62 PIN, TAPER 3X18 22322-030180
63 LEVER 148606-61610
63-1 LEVER, 2ND 136603-61590
64 SLEEVE, 2ND LEVER A 144626-61620
65 BEARING, D24L12 136603-61600
66 BEARING, 2ND LEVER B 148616-61640
67 SEAL, VC081404 148616-61650
68 BRACKET, LEVER 144626-61740
69 SPRING 144626-61751
70 LEVER, SPRING 144626-61761
71 BOLT, SPRING A 144626-61771
72 PIECE 144626-61781
73 PLATE, RETURN SPRING 144626-61790
74 O-RING, 1015 144626-61800
75 RETAINER, 1ST LEVER 135210-61540
76 HANDLE, STOP 144626-61830
77 PIN 135210-61850
78 LINK, RACK CONECTING 144626-61850
79 SPRING, HANDLE 144626-61890
80 GUIDE 140673-61960
81 PIN, GOVERNOR LINK 180110-66410
82 WASHER, LEVER 131110-66420
83 BUSH, 1ST LEVER 144626-61431
84 BUSH, LEVER SHAFT 144626-61441
85 SHAFT,GOVERNOR LEVER 144626-61510
86 LEVER, GOVERNOR NO.1 144626-61530
87 WASHER, 8 22117-080000
88 WASHER, SPRING 8 22217-080000
89 WASHER, SPRING 6 22217-060000
90 RING, 11 22242-000110
91 SCREW, ADJUSTING 148616-61761
92 PIN, PARALLEL M6X10 22312-060100
93 PIN, PARALLEL M6X14 22312-060140
94 BEARING, 2ND LEVER A 148616-61570
96 COTTER PIN 1.6X12 22411-160120
97 COTTER PIN 2.0X12 22411-200120
98 KEY, WOODRUFF 3X10 22522-030100
99 KEY, WOODRUFF 4X13 22522-040130
100 KEY, WOODRUFF 4X13 22522-040130
101 O-RING, 1AP8.0 24311-000080
102 O-RING 2 P-20.0 24312-000200
103 BOLT M 6X 18 PLATED 26117-060182
104 BOLT, M8X 22 PLATED 26106-080222
105 BOLT, M8X 25 PLATED 26106-080252
106 BOLT, M8X 18 PLATED 26106-080182
107 BOLT, M6X 16 PLATED 26106-060162
108 BOLT, M6X 22 PLATED 26106-060222
109 BOLT, M8X 22 PLATED 26106-080222
110 BOLT, M8X 28 PLATED 26106-080282
111 BOLT, M8X 30 PLATED 26116-080306
112 BOLT, M6X 22 PLATED 26106-060222
113 PLUG, VALVE 144626-61690
114 O-RING 122710-51360
115 BOLT, LEVER SHAFT A 135210-61590
116 SCREW, ADJUSTING 148616-61800
117 WASHER, SEAL 148616-61810
118 NUT, M6 26716-060002
119 SPRING, IDLE 148616-61730
120 RETAINER, SPRING 148616-61740
121 RING, E- 7 22272-000070
122 WASHER 8 22212-080000
123 SEAL, OIL 144626-61180
124 BOLT, PIPE JOINT 148616-61700
125 BUSH, SHAFT 152623-61430
126 RETAINER, O-RING 152623-61440
127 O-RING 152623-61460
128 LEVER ASSY, CONTROL 152623-61400
129 LEVER ASSY, SPRING 148616-61470
130 SHAFT, CONTROL LEVER 152623-61420
131 PIN, TAPER 148016-61550

YANMAR 148616-61400 Lever Assy, Control
