YANMAR 148616-61730 Spring, Idle

Write a Review
$13.05
SKU:
148616-61730
Schematic Object Key:
60

YANMAR 148616-61730 Spring, Idle

$13.05

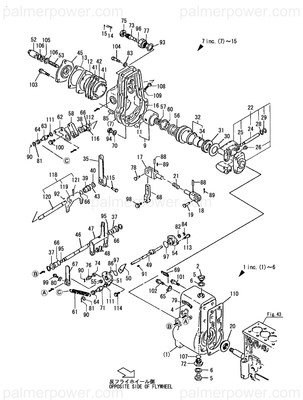

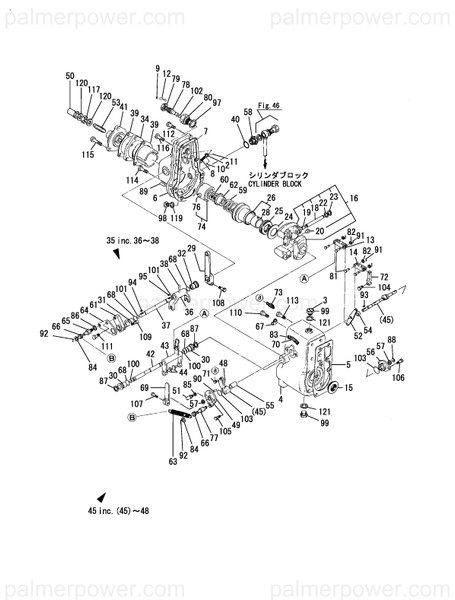

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148616-61730 Spring, Idle

Schematic Object Key : 60

Product Description : SPRING, IDLE 148616-61730

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 O-RING 122710-51360
2 LOCK NUT 135210-51610
3 LABEL 144626-51930
4 CASE, GOVERNOR 144626-61011
5 GASKET 144626-61050
5-1 GASKET, CASE 144626-61051
6 COVER, GOVERNOR CASE 148816-61060
7 GASKET 144626-61070
7-1 GASKET, CASE COVER 144626-61071
8 SCREW, SPEED ADJUST 135210-61080
9 LEAD 135210-61090
10 LEAD 135210-61090
11 WIRE 135210-61100
12 WIRE 135210-61100
13 LINK, GOVERNOR 140673-61160
14 LINK, L47 144626-61170
15 SEAL, OIL 144626-61180
16 WEIGHT ASSY,GOVERNOR 144606-61200
18 PIN, GOVERNOR WEIGHT 135210-61221
19 BUSH, WEIGHT PIN 135210-61230
20 RETAINER, WEIGHT 135210-61240
22 WASHER, 10 22117-100000
23 RING, 10 22242-000100
24 WASHER 140623-61310
25 THRUST BEARING 135210-61320
26 SHIFTER ASSY 148609-61330
28 BUSH, RETAINER 140673-61350
29 LEVER, CONTROL 148816-61420
30 BUSH, 1ST LEVER 144626-61431
31 BUSH, SHAFT 152623-61430
32 BUSH, LEVER SHAFT 144626-61441
33 RETAINER, O-RING 152623-61440
34 GUIDE 144626-61450
35 SHAFT ASSY, LEVER 148816-61450
36 SHAFT, CONTROL LEVER 152623-61420
37 LEVER 135210-61470
38 PIN, TAPER 4X22 22322-040220
38-1 PIN, TAPER 148016-61550
39 GASKET 144626-61460
39-1 GASKET, GUIDE 144626-61461
40 O-RING 152623-61460
41 COVER, SPRING GUIDE 135210-61480
42 SHAFT,GOVERNOR LEVER 144626-61510
43 LEVER, GOVERNOR NO.1 144626-61530
44 RETAINER, 1ST LEVER 135210-61540
45 SHAFT 748609-61510
48 PIN, TAPER 3X18 22322-030180
49 BEARING, 2ND LEVER A 148616-61570
50 NUT, CAP 144626-61580
51 BOLT, LEVER SHAFT A 135210-61590
52 LEVER, 2ND 136603-61590
53 SCREW, IDLE SET 148816-61590
54 BEARING, D24L12 136603-61600
55 SLEEVE, 2ND LEVER A 144626-61620
56 BEARING, 2ND LEVER B 148616-61640
57 SEAL, VC081404 148616-61650
58 PLUG, VALVE 144626-61690
59 SPRING, GOVERNOR 148616-61720
60 SPRING, IDLE 148616-61730
61 BRACKET, LEVER 144626-61740
62 RETAINER, SPRING 148616-61740
63 SPRING 144626-61751
64 LEVER, SPRING 144626-61761
65 BOLT, SPRING A 144626-61771
66 PIECE 144626-61781
67 PLATE, RETURN SPRING 144626-61790
68 O-RING, 1015 144626-61800
69 HANDLE, STOP 144626-61830
70 PLATE 144626-61840
71 PIN 135210-61850
72 LINK, RACK CONECTING 144626-61850
73 SPRING, HANDLE 144626-61890
74 RETAINER, SPRING 125613-61900
76 STOPPER 135210-61380
77 BOLT, SPRING B 144626-61900
78 BOLT, CONTROL 140673-61940
79 NUT 140673-61950
80 GUIDE 140673-61960
81 PIN, GOVERNOR LINK 180110-66410
82 WASHER, LEVER 131110-66420
83 RIVET 137900-91451
84 WASHER 22111-080000
85 WASHER 6 22212-060000
86 RING, 11 22242-000110
87 RING, 11 22242-000110
88 RING, E- 7 22272-000070
89 PIN, PARALLEL M6X14 22312-060140
90 PIN, PARALLEL M6X20 22312-060200
91 COTTER PIN 1.6X12 22411-160120
92 COTTER PIN 1.6X15 22411-160150
93 KEY, WOODRUFF 3X10 22522-030100
94 KEY, WOODRUFF 4X13 22522-040130
95 KEY, WOODRUFF 4X13 22522-040130
96 GASKET, 16X1.0 23414-160000
97 GASKET, 20X1.0 23414-200000
98 PLUG 8 23887-080002
99 PLUG, 16 23887-160002
100 O-RING, 1AP8.0 24311-000080
101 O-RING, 1AP8.0 24311-000080
102 O-RING, 2P7.0 24312-000070
103 O-RING 2 P-20.0 24312-000200
104 BOLT, M6X 16 PLATED 26106-060162
105 BOLT, M6X 16 PLATED 26106-060162
106 BOLT, M6X 16 PLATED 26106-060162
107 BOLT, M6X 16 PLATED 26106-060162
108 BOLT, M6X 22 PLATED 26106-060222
109 BOLT, M6X 22 PLATED 26106-060222
110 BOLT, M8X 18 PLATED 26106-080182
111 BOLT, M8X 22 PLATED 26106-080222
112 BOLT, M8X 22 PLATED 26106-080222
113 BOLT, M8X 25 PLATED 26106-080252
114 BOLT, M8X 28 PLATED 26106-080282
115 BOLT, M8X 32 PLATED 26106-080322
116 BOLT, M8X 30 PLATED 26116-080306
117 NUT, LOCK M12 26756-120002
118 SCREW, M12X45 26921-120452
119 SEAL WASHER 8 43400-500420
119-1 WASHER, SEAL 6 22190-080002
120 SEAL WASHER 12S 43400-500450
120-1 WASHER, SEAL 12 22190-120002
121 SEAL WASHER 16 43400-500500
121-1 WASHER, SEAL 16 22190-160002
