YANMAR 148616-77551 Bracket, Switch

Write a Review
$43.88
SKU:
148616-77551
Schematic Object Key:
3

YANMAR 148616-77551 Bracket, Switch

$43.88

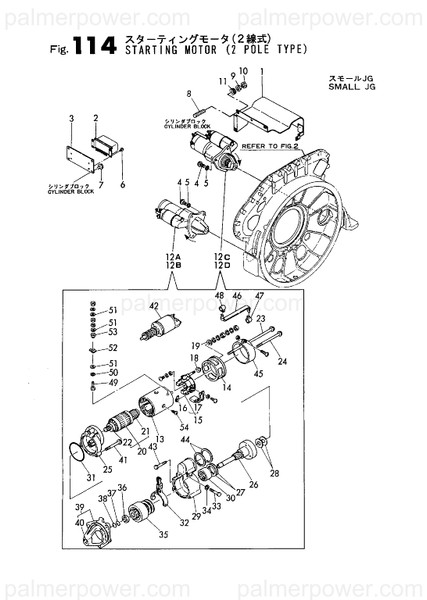

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148616-77551 Bracket, Switch

Schematic Object Key : 3

Product Description : BRACKET, SWITCH

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COVER 148616-77041
2 SWITCH 148616-77500
3 BRACKET, SWITCH 148616-77551
4 BOLT, M12X 30 PLATED 26116-120302
5 WASHER, SPRING 12 22217-120000
6 BOLT, M6X 10 PLATED 26106-060102
7 BOLT, M10X 16 PLATED 26106-100162
8 STUD, M10X 25 26216-100252
9 NUT, M10 26366-100002
10 NUT, LOCK M10 26756-100002
11 GROMET, 12.0X1 29311-121000
12A STARTER 148606-77030
12B STARTING MOTOR (A) 148619-77050
12C STARTER 148606-77040
12D STARTING MOTOR (B) 148619-77060
13 FILD COIL X131607700
14 BRACKET X224013910
15 HOLDER ASSY, BRUSH X1331032000
16 SPRING, BRUSH X525002200
17 BRUSH X266005700
18 IF BUSING X404106000
19 WASHER X403005700
20 ARMATURE ASSY X132006101
21 BALL BEARING X620600500
22 BALL BEARING X620600540
23 BOLT X501021380
24 BOLT X501021370
25 HOUSING, GEARS X224500201
26 SHAFT X244100000
27 SHIM X503105200
28 SHIM X503105100
29 BRACKET X224405000
30 METAL X2620093000
31 O-RING X6414028000
32 LEVER ASSY X137203500
33 BOLT X501021400
34 LOCK PLATE X305102300
35 CLUTCH ASSY, PINION X136103600
36 PINION, STOPPER X366101800
37 RITEANER X522100900
38 RING X505803900
39A HOUSING ASSY, PINION X224601800
39B HOUSING ASSY, PINION X224601700
40 METAL X2620108000
41 BOLT X501021310
42A SWITCH ASSY X135008900
42B ENGAGE SWITCH ASSY. X135008910
43 BOLT X501019020
44 D-PLATE X300111600
45 BAND ASSY X133801600
46A BAR ASSY X242514300
46B BAR ASSY X242514300
47 CAP X410103000
48 CAP X410105900
49 BOLT X501018700
50 NUT X502200600
51 WASHER X503002110
52 IF BUSING X404104600
53 IF BUSING X404104700
54 SCREW X500008300
