YANMAR 148633-52053 Shaft

Write a Review
$1,570.69
SKU:
148633-52053
Schematic Object Key:
9-2

YANMAR 148633-52053 Shaft

$1,570.69

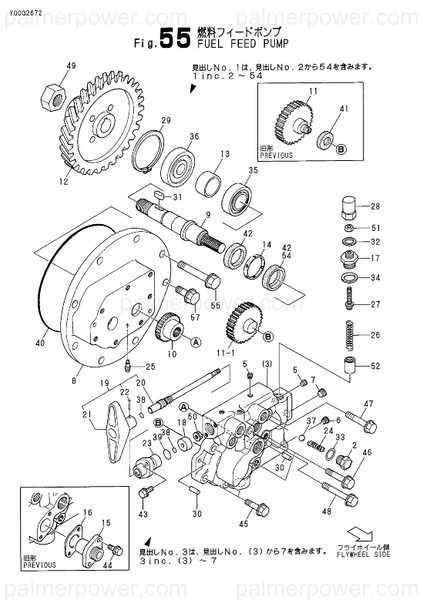

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148633-52053 Shaft

Schematic Object Key : 9-2

Product Description : SHAFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, FUEL FEED 748633-52701
1-1 PUMP ASSY, FUEL FEED 748633-52702
1-2 PUMP ASSY, FUEL FEED 748633-52703
2 RETAINER 135602-34390
3 BODY ASSY, FUEL FEED 148633-52011
3-1 BODY ASSY, FUEL FEED 148633-52012
3-2 BODY ASSY, FUEL FEED 148633-52013
5 PLUG, R005 23871-005000
5-1 PLUG, R005 23876-005000
6 PLUG, R01 23871-010000
6-1 PLUG, R01 23876-010000
7 PLUG, R02 23871-020000
7-1 PLUG, R02 23876-020000
7A SCREW, M4X 5 26911-040052
8 BRACKET 148633-52030
8-1 BRACKET 148633-52031
8-2 BRACKET 148633-52032
8-3 BRACKET 148633-52033
9 SHAFT, L=176 148633-52051
9-1 SHAFT, L=181 148633-52052
9-2 SHAFT 148633-52053
10 GEAR, PUMP 148633-52071
11 GEAR, PUMP 148633-52081
11-1 GEAR, PUMP 148633-52082
12 GEAR, PUMP 148633-52110
13 SPACER 148633-52150
14 SPACER 148633-52160
15 RETAINER 138613-52230
16 PACKING 138613-52240
17 RETAINER 139653-52260
18 PISTON, PUMP 148633-52320
18-1 PISTON, PUMP 148633-52321
18-2 PISTON, PUMP 148633-52320
19 ROD ASSY, PISTON 148633-52350
20 ROD, PISTON 148633-52360
20-1 ROD, PISTON 148633-52361
20-2 ROD, PISTON 148633-52360
21 HANDLE, PRIMING 148633-52370
21-1 HANDLE, PRIMING 128633-52370
21-2 HANDLE, PRIMING 148633-52370
22 PIN, SPRING 3.0X16 22351-030016
23 FLANGE 148633-52400
23-1 FLANGE 148633-52401
23-2 FLANGE 148633-52400
24 SPRING 148633-52410
25 JOINT 148616-52420
26 SPRING, CONTROL 138613-52570
27 SCREW, CONTROL 137603-52750
28 CAP NUT 137603-52760
29 RING, 62 22252-000620
30 PIN, PARALLEL M6X16 22312-060160
31 KEY, 7X 20 22512-070200
32 GASKET, 14X1.0 23414-140000
33 GASKET, 14X1.0 23414-140000
34 GASKET, 18X1.0 23414-180000
35 BEARING, BALL 6205 24101-062054
36 BEARING, BALL 6305 24101-063054
37 BALL, STEEL 5/16 24190-100001
38 O-RING, 1AP8.0 24311-000080
39 O-RING, 1AP16.0 24311-000160
40 O-RING, 1AG190.0 24321-001900
41 SEAL, OIL TC122207 24421-122207
42 SEAL, OIL TC254008 24421-254008
42-1 SEAL, OIL TC254008 24421-254008
43 BOLT, M6X 18 PLATED 26106-060182
44 BOLT, M6X 18 PLATED 26106-060182
45 BOLT, M8X 35 PLATED 26106-080352
45-1 BOLT, M8X 30 PLATED 26106-080302
46 BOLT, M8X 45 PLATED 26106-080452
46-1 BOLT, M8X 40 PLATED 26106-080402
47 BOLT, M8X 50 PLATED 26106-080502
47-1 BOLT, M8X 45 PLATED 26106-080452
48 BOLT, M8X 60 PLATED 26106-080602
48-1 BOLT, M8X 55 PLATED 26106-080552
49 NUT, M20 26356-200002
50 NUT, M6 26366-060002
51 NUT, LOCK M6 26756-060002
52 VALVE 43600-010470
53 GASKET, 6X1.0 23414-060000
53-1 GASKET, 6X1.0 23414-060000
54 SEAL, OIL TC304508 24421-304508
55 BOLT, M10X 70 PLATED 26106-100702
55-1 BOLT, M10X 70 PLATED 26106-100702
56 NUT, M10 26366-100002
57 BOLT, M10X 30 PLATED 26106-100302
