YANMAR 148640-61150 Link, B

Write a Review
$165.55
SKU:
148640-61150
Schematic Object Key:
12

YANMAR 148640-61150 Link, B

$165.55

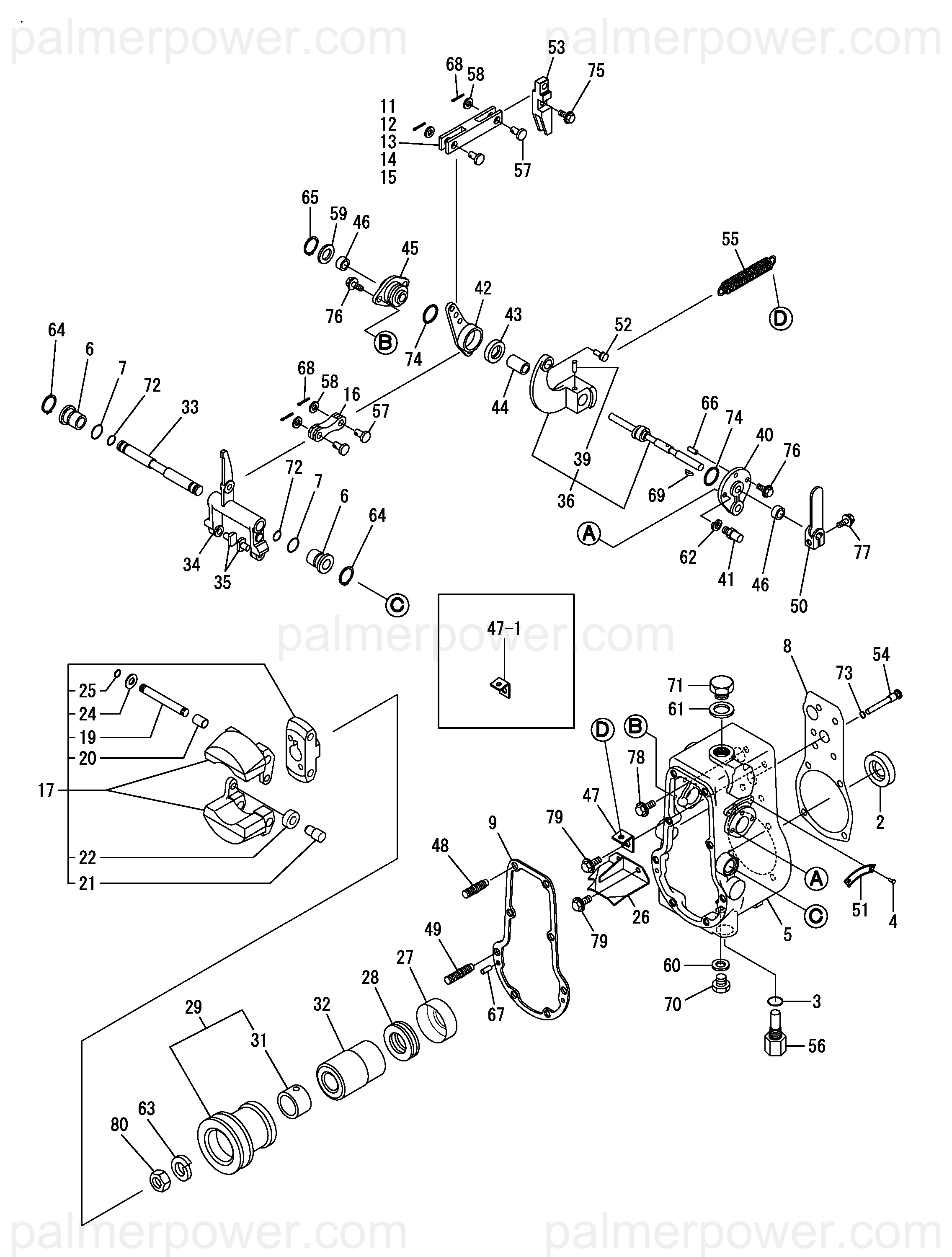

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148640-61150 Link, B

Schematic Object Key : 12

Product Description : LINK 148640-61150

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 SEAL, OIL 135210-51080
3 O-RING 122710-51360
4 RIVET 124220-51890
5 CASE 148640-61010
6 BUSH, 1ST LEVER 144626-61431
7 O-RING, 1015 144626-61800
8 GASKET, CASE 152623-61051
9 GASKET 148640-61070
11 LINK 148640-61140
12 LINK 148640-61150
13 LINK 148640-61160
14 LINK 148640-61170
15 LINK 148640-61180
15A LINK 148640-61870
15A-1 LINK, L50 144626-61140
15B LINK 148640-61880
15B-1 LINK, L51 144626-61150
15C LINK, B 148691-61140
15D LINK, B 148691-61150
15E LINK, B 148691-61160
16 LINK, GOVERNOR 140673-61160
17 WEIGHT ASSY,GOVERNOR 148640-61200
19 PIN, GOVERNOR WEIGHT 135210-61221
20 BUSH, WEIGHT PIN 135210-61230
21 PIN 148640-61240
22 ROLLER 148640-61250
24 WASHER, 10 22117-100000
25 RING, 10 22242-000100
26 PLATE 148640-61270
27 WASHER 140623-61310
28 THRUST BEARING 135210-61320
29 SHIFTER ASSY 148609-61330
31 BUSH, RETAINER 140673-61350
32 SPACER, CAMSHAFT 140623-61500
33 SHAFT,GOVERNOR LEVER 144626-61510
34 LEVER 136603-61530
34-1 LEVER, GOVERNOR NO.1 144626-61530
35 RETAINER, 1ST LEVER 135210-61540
36 SHAFT 748609-61510
36-1 SHAFT ASSY 148609-61550
39 PIN, TAPER 3X18 22322-030180
40 BEARING, 2ND LEVER A 148616-61570
41 BOLT, LEVER SHAFT A 135210-61590
42 LEVER, 2ND 136603-61590
43 BEARING, D24L12 136603-61600
44 SLEEVE, 2ND LEVER A 144626-61620
45 BEARING, 2ND LEVER B 148616-61640
46 SEAL, VC081404 148616-61650
47 PLATE, RETURN SPRING 144626-61790
47-1 BRACKET 148640-61790
48 STUD 148640-61800
49 STUD 148640-61810
50 HANDLE,FUEL SHUT-OFF 135210-61830
51 PLATE 144626-61840
52 PIN 135210-61850
53 LINK 148640-61850
54 GUIDE 136603-61860
55 SPRING, HANDLE 144626-61890
56 BUSH 152623-61910
57 PIN, GOVERNOR LINK 180110-66410
58 WASHER, LEVER 131110-66420
59 WASHER, 8 22117-080000
60 WASHER, SEAL 12 22190-120002
61 WASHER, SEAL 22 22190-220002
61-1 GASKET, 22X1.0 23414-220029
62 WASHER, SPRING 6 22217-060000
63 WASHER, SPRING 14 22217-140000
64 RING, 11 22242-000110
65 RING, E- 7 22272-000070
65-1 RING, 7 22276-000070
66 PIN, PARALLEL M6X14 22312-060140
67 PIN, PARALLEL M6X14 22312-060140
68 PIN, COTTER 1.6X12 22417-160120
69 KEY, WOODRUFF 3X10 22522-030100
70 PLUG, 12 23887-120002
71 PLUG, G1/2 23897-040002
72 O-RING, 1AP8.0 24311-000080
73 O-RING, 2P5.0 24312-000050
74 O-RING 2 P-20.0 24312-000200
75 BOLT, M6X 16 PLATED 26106-060162
76 BOLT, M6X 16 PLATED 26106-060162
77 BOLT, M6X 18 PLATED 26106-060182
78 BOLT, M8X 22 PLATED 26106-080222
79 BOLT, M8X 32 PLATED 26106-080322
80 NUT, M14 26601-140002
