YANMAR 148665-51601 Plunger Assy

Write a Review
$416.27
SKU:
148665-51601
Schematic Object Key:
47

YANMAR 148665-51601 Plunger Assy

$416.27

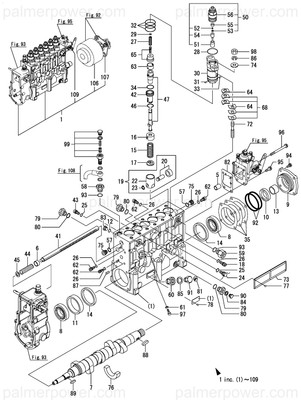

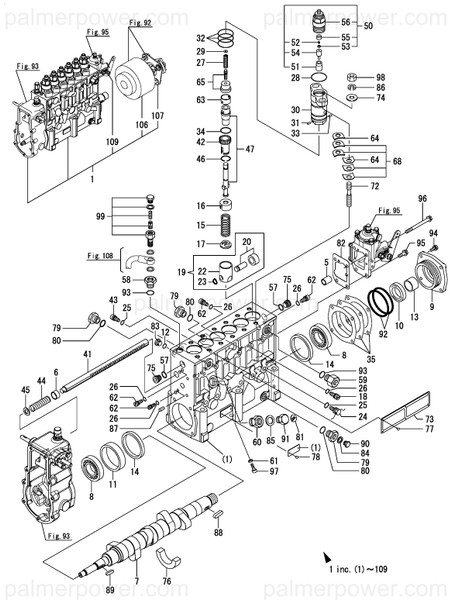

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148665-51601 Plunger Assy

Schematic Object Key : 47

Product Description : PLUNGER ASSY 148665-51601

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748965-51800
5 BUSH 130605-51580
6 BUSH 140623-51580
7 CAMSHAFT 148965-51840
8 BEARING 152696-51050
9 SUPPORT 148665-51060
10 SEAL, OIL 148665-51070
11 COLLAR 152623-51070
12 O-RING, 4D P11.0 148620-51080
13 SLEEVE 148665-51090
14 COLLAR 152696-51090
15 SPRING, PLUNGER 148665-51160
16 RETAINER, SPRING A 148665-51170
17 RETAINER, SPRING 148665-51180
18 SCREW 152623-51190
19 TAPPET ASSY 148665-51200
20 TAPPET ASSY 148665-51220
22 TAPPET 148665-51240
23 CIRCLIP 152673-51250
24 SCREW 152623-51270
25 O-RING, P9 144626-51281
26 O-RING, P6 144626-51290
27 SPRING, DELIVERY 137600-51332
28 O-RING 152673-51360
29 GASKET, DELIVERY 152673-51390
30 SUPPORT ASSY, BARREL 148665-51400
31 PIN 144626-51410
32 O-RING 152673-51420
33 PIN 144626-51430
34 O-RING 152673-51430
35 SHIM SET, CAMSHAFT 152623-51450
41 RACK, CONTROL 130605-51500
42 PINION 148665-51510
43 SCREW 144626-51521
44 SPRING, RACK 140623-51530
45 WASHER 140623-51540
46 CIRCLIP 152623-51540
47 PLUNGER ASSY 148665-51601
50 HOLDER ASSY,DELIVERY 148665-51641
51 PIECE 130618-51370
52 SPRING, VALVE 148691-51370
53 VALVE, CHECK 152696-51370
54 STOPPER, VALVE 130618-51380
55 RETAINER 148691-51380
56 HOLDER, DELIVERY 148665-51650
57 O-RING 152673-51660
58 PLUG 144626-51670
59 PLUG 148616-51671
60 PLUG, M16 L17 136603-51690
61 WASHER, SEAL 144626-51700
62 PLUG 144626-51730
63 DEFLECTOR 148665-51750
64 SHIM, T=1.0 152623-51750
65 VALVE ASSY, DELIVERY 148665-51760
68 SHIM SET, ADJUSTING 152623-51760
72 STUD, M12 148665-51800
73 LABEL, CAUTION 148665-51810
74 WASHER 152623-51810
75 PROTECTOR 130605-51830
76 BEARING, CAMSHAFT 152696-51850
77 RIVET 124220-51890
78 RIVET 124220-51890
79 PLUG 144626-51940
80 O-RING, 1016 144626-51950
81 LABEL 124610-51970
82 GASKET 130605-61510
83 PLUG, G1/4 158805-85900
84 WASHER, SEAL 12 22190-120002
85 WASHER, SEAL 16 22190-160002
86 WASHER, SPRING 12 22217-120000
87 PIN, SPRING 5.0X10 22351-050010
88 KEY, 7X 20 22512-070200
89 KEY, 7X 22 22512-070222
90 PLUG, 12 23887-120002
91 PLUG, 16 23887-160002
92 O-RING, 1AS90.0 24341-000900
93 O-RING, 4D19018 24356-190180
94 BOLT, M8X 30 26013-080302
95 BOLT, M8X 22 PLATED 26106-080222
96 BOLT, M8X 90 PLATED 26106-080902
97 BOLT, M6X 25 26450-060252
98 NUT, M12 26736-120002
99 VALVE ASSY, OVERFLOW 148620-51950
99-1 VALVE ASSY,OVER FLOW 148620-51951
106 JOINT ASSY 148691-54500
107 COUPLING ASSY 148965-54690
109 COMPENSATER, BOOST 148691-61490
