YANMAR 148672-18021 Turbine Assy

Write a Review
$15,450.05
SKU:
148672-18021
Schematic Object Key:
1B-3

YANMAR 148672-18021 Turbine Assy

$15,450.05

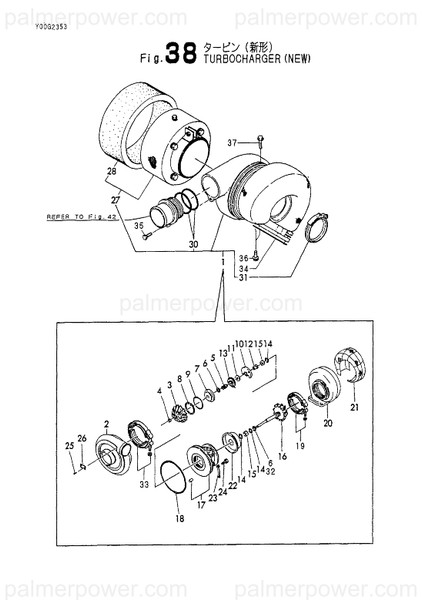

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148672-18021 Turbine Assy

Schematic Object Key : 1B-3

Product Description : TURBINE ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A TURBINE ASSY 148609-18030
1A-1 TURBINE ASSY 148672-18010
1A-3 TURBINE ASSY 148672-18011
1B TURBINE ASSY 148609-18040
1B-1 TURBINE ASSY 148672-18020
1B-3 TURBINE ASSY 148672-18021
2 COVER, COMPRESSOR X4918152300
2-1 TURBOCHARGER(RU110) X4913250630
3 WHEEL COMPRESSOR X4918143310
3-1 WHEEL X4913240630
4 NUT, LOCK X4918142200
4-1 NUT, LOCK X4913242200
4-3 LOCK NUT X4913242210
5 SLEEVE, FLINGER X4918142100
5-1 SLEEVE X4913242100
6 RING, PISTON X4918123100
6-1 RING X4917823100
7 INSERT X4918122500
7-1 INSERT X4913222500
8 RING SNAP X4916223200
8-1 RING, SNAP X4917423200
9 O-RING X4918122600
9-1 O-RING X4917422600
10 BEARING X4918121600
10-1 BEARING, THRUST X4913221600
11 RING, THRUST X4918142300
11-1 RING X4913242400
12 RING, THRUST X4918142400
12-1 RING, THRUST X4913242300
13 DEFLECTOR, OIL X4918122200
13-1 DEFLECTOR X4913222200
14 RING SNAP X4918122300
14-1 RING, SNAP X4916223100
15 BEARING X4918121100
15-1 BEARING X4913221100
16 SHAFT & TURBO.WHEEL X4918130200
16-1 SHAFT& TURBINE WHEEL X4913230100
16-3 SHAFT, SPIRAL PINION X4913230130
17 BEARING HOUSING ASSY X4918125300
17-1 HOUSING X4913225300
18 O-RING X4918122700
18-1 O-RING X4918122700
19 V-CLAMP X4918114003
19-1 CLAMP 148672-18370
20 HOUSING, TURBINE X4918111400
20-1 CASING ASSY, TURBIN X4913213550
21 LAGGING 126616-18470
21-1 LAGGING 148672-18350
21-2 LAGING X4918114410
22 PLATE (TD13 X4918119300
22-1 PLATE BACK TURBINE X4913219200
23 PLATE X4918123500
23-1 PLATE X4918123500
24 BOLT X4918123700
24-1 BOLT X4918123700
25 RIVET X0066502048
26 PLATE, NAME X4917452100
26-1 PLATE, NAME X4916954200
27 SILENCER 148688-18350
27-1 SILENCER 128633-18270
28 CLEANER, PRE 125X910 148616-18360
28-1 PRE-CLEANER 128633-18280
30 O-RING 144626-18150
30-1 O-RING 128634-18350
31 V-CLAMP 126616-18390
31-1 V-CLAMP 126616-18390
32 RING, PISTON X4916423700
33 CLAMP 148672-18360
34 GASKET, TURBINE 148816-18402
34-1 GASKET, TURBINE 148816-18403
34-2 GASKET 148816-18404
35 BOLT, M10X 30 PLATED 26106-100302
36 BOLT, M10X 30 PLATED 26106-100302
37 BOLT, M10X 45 PLATED 26106-100452
38 STUD, M12X 40 26213-120402
39 NUT, M12 26706-120002
40 NUT, LOCK M12 26793-120002
