YANMAR 148688-42520 Plate

Write a Review
$2,431.90
SKU:
148688-42520
Schematic Object Key:
35

YANMAR 148688-42520 Plate

$2,431.90

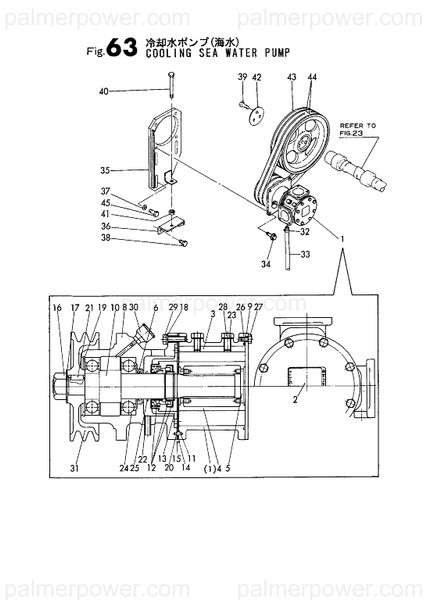

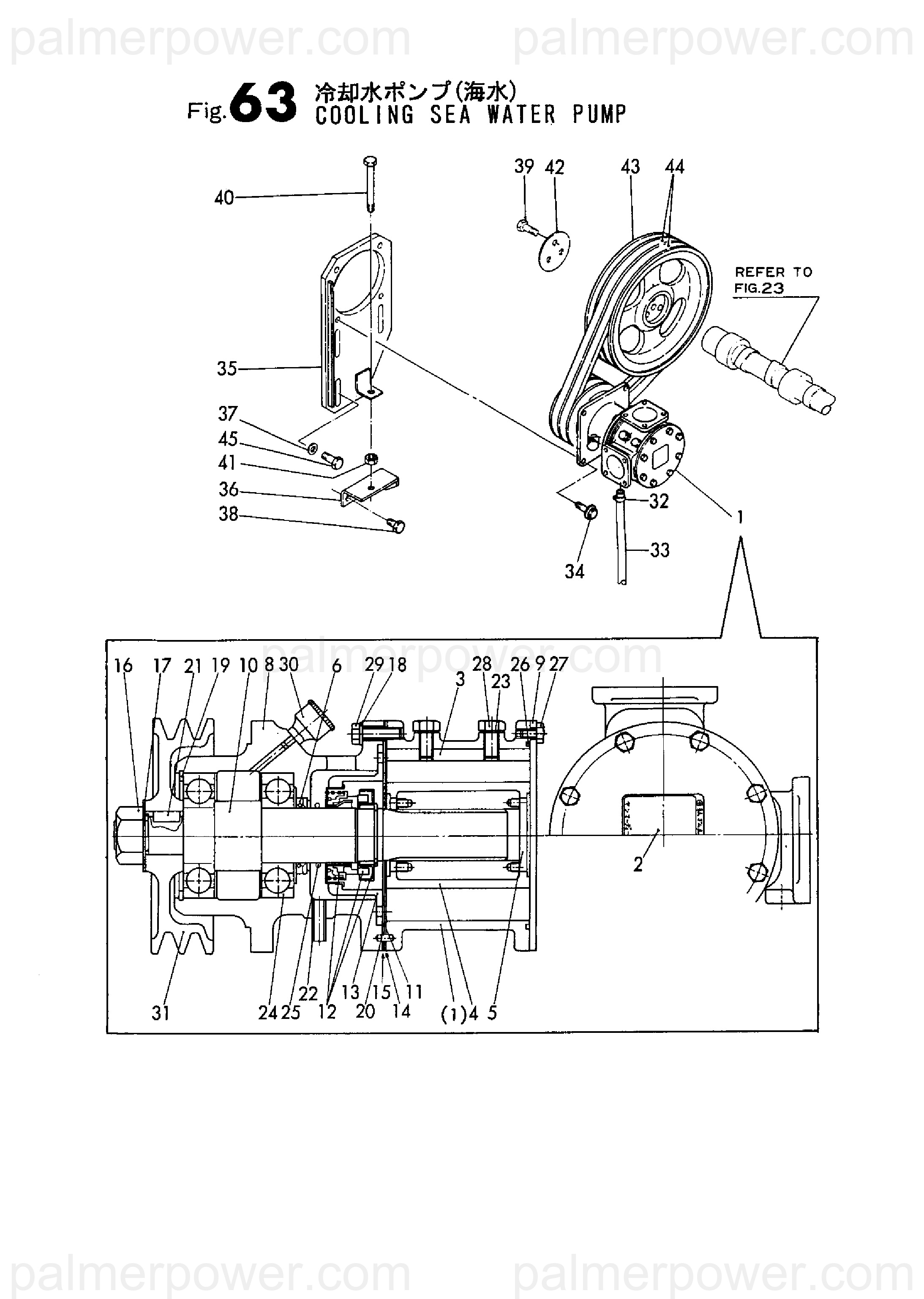

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148688-42520 Plate

Schematic Object Key : 35

Product Description : PLATE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, WATER 148688-42010
2 LABEL, CAUTION 135665-07200
3 CAM, C.S.W. PUMP 148816-42020
4 IMPELLER, C. WATER 148816-42030
5 COVER, IMPELLER 148816-42040
6 SEAL, OIL 148816-42090
8 CASE, BEARING 148688-42120
9 COVER, PUMP 148816-42170
10 SHAFT, IMPELLER 148816-42281
11 PLATE 148816-42340
12 SEAL, MECHANICAL 148816-42350
13 BUSH 148816-42360
14 GASKET 148816-42370
15 GASKET 148816-42380
16 NUT 148816-42420
17 WASHER 148816-42431
18 WASHER, SPRING 8 22213-080000
19 RING, 90 22252-000900
20 PIN, SPRING 4.0X10 22351-040010
21 KEY, 7X 20 22512-070200
22 PIPE, 10X1.0X 30 23051-100030
23 GASKET, 10X1.0 23414-100000
24 BEARING, BALL 6308U 24102-063084
25 O-RING, 1AG40.0 24321-000400
26 O-RING, 1AG130.0 24321-001300
27 BOLT M 8X 12 26113-080122
28 BOLT, M10X 20 26153-100202
29 BOLT M 8X 30 26113-080302
30 CUP, GREASE 25X1/8 24754-250010
31 V-PULLEY 148688-42900
32 CLAMP, 14 23010-014000
33 PIPE, 10X 400 23061-100400
34 BOLT, M12X 30 PLATED 26106-120302
35 PLATE 148688-42520
36 ADJUSTER 148616-42540
37 WASHER, 12 22137-120000
38 BOLT, M12X 22 PLATED 26116-120222
39 BOLT, M12X 30 PLATED 26116-120302
40 BOLT, M12X105 PLATED 26116-121054
41 NUT, M12 26716-120002
42 WASHER 148616-42620
43 V-PULLEY 148619-42900
44 V-BELT, B46 25133-004600
44-1 V-BELT, B44 25133-004400
45 BOLT, M12X 30 PLATED 26116-120302
