YANMAR 148816-02250 Bolt

Write a Review
$44.57
SKU:
148816-02250
Schematic Object Key:
26

YANMAR 148816-02250 Bolt

$44.57

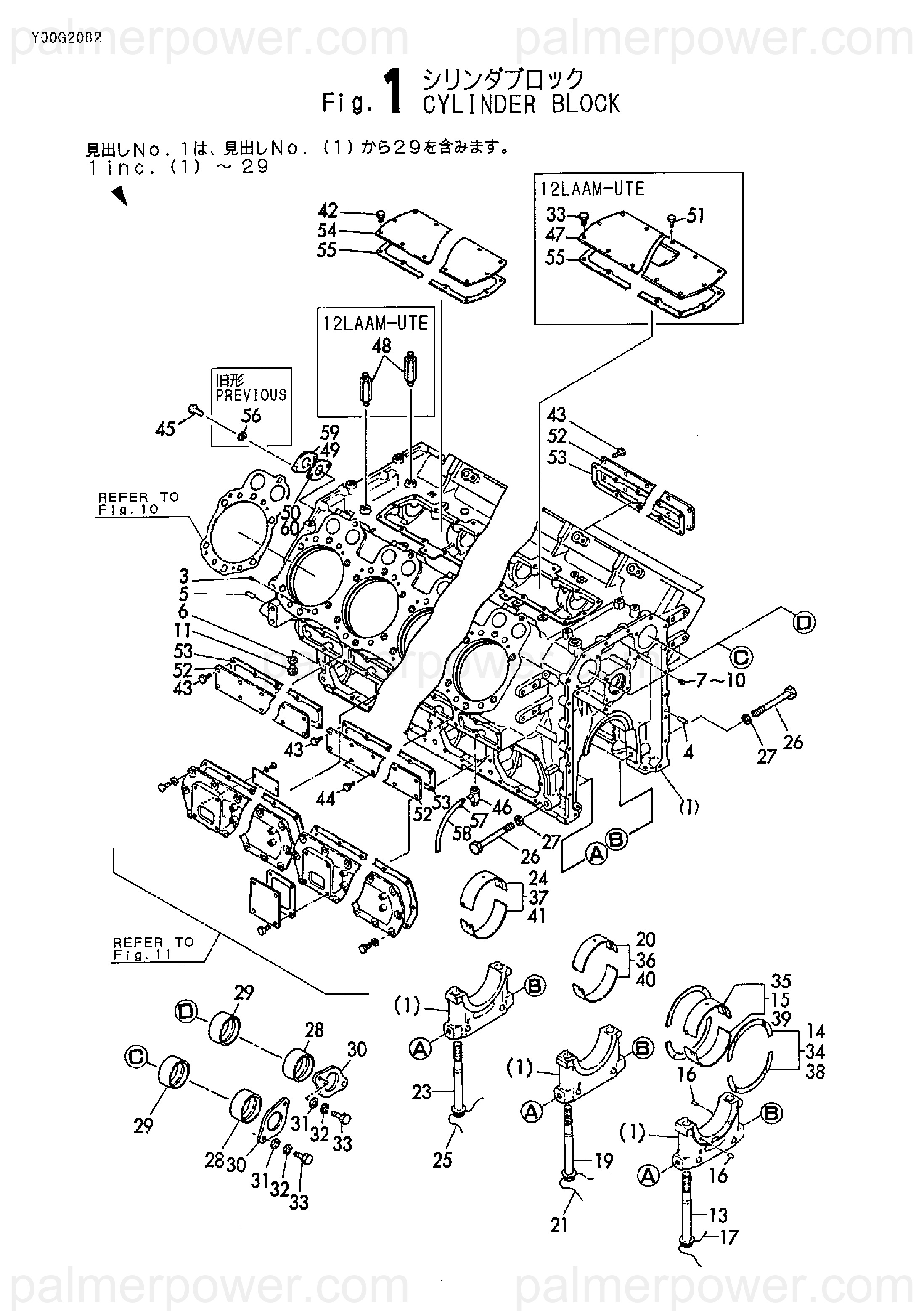

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 148816-02250 Bolt

Schematic Object Key : 26

Product Description : BOLT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-3 BLOCK ASSY, CYLINDER 748016-01562-A
3 PIN, PARALLEL M8X10 22312-080100
4 PIN, PARALLEL M12X28 22312-120280
5 PIN, PARALLEL M12X28 22312-120280
6 GASKET, 17X1.0 23414-170000
7 PLUG, R01 23871-010000
8 PLUG, R01 23871-010000
9 PLUG, R01 23871-010000
10 PLUG, R01 23871-010000
11 PLUG G3/8,HEX. 23897-030002
13B BOLT 148816-02081
14B BEARING,THRUST 148218-02230
15B METAL ASSY,MAIN 148633-02651
16 PIN, PARALLEL M6X10 22312-060100
17 WIRE, 2.0 22451-200000
19B BOLT 148816-02081
20 MAIN METAL 148816-02320
21 WIRE, 2.0 22451-200000
23B BOLT 148816-02081
24 MAIN BEARING 148816-02300
25 WIRE, 2.0 22451-200000
26 BOLT 148816-02250
26-1 BOLT 148816-02251
27 WASHER, 16 22137-160000
28 BUSH, CAMSHAFT 148016-02400
29 BUSH, CAMSHAFT 148016-02420
30 BEARING, CAMSHAFT 148616-02480
31 WASHER, 12 22137-120000
32 WASHER, SPRING 12 22217-120000
33 BOLT, M12X 28 PLATED 26116-120282
34 METAL, THRUST 0.25 148816-02960
35 MAIN METAL 148816-02900
36B MAIN METAL 0.25 148816-02930
37 MAIN METAL 148816-02900
38B THRUST BEARING 148218-02970
39 MAIN METAL 148816-02910
40 MAIN METAL 0.5 148816-02940
41 MAIN METAL 148816-02910
42 BOLT, M10X 16 PLATED 26106-100162
43 BOLT, M10X 20 PLATED 26106-100202
44 BOLT, M10X 25 PLATED 26106-100252
45 BOLT, M10X 28 PLATED 26106-100282
46-1 COCK ASSY, 3/8 43600-500311
47 COVER 148016-01771
48 BOLT 148016-01990
49 FLANGE, 30 23221-300001
49-1 FLANGE, 34 23221-340001
50-1 PACKING 36 23424-360000
51 BOLT, M8X 16 PLATED 26106-080162
52 COVER 148006-01460
53 GASKET, COVER 148016-01470
53-1 GASKET, COVER 148016-01471
54 COVER 148016-01750
55 GASKET, COVER 148016-01760
55-1 GASKET, COVER 148016-01761
55-2 GASKET, COVER 148016-01762
57 CLAMP, 15 23010-015000
58 PIPE, 12X 500 23061-120500
