YANMAR 152623-51150 Deflector

Write a Review
$18.30
SKU:
152623-51150
Schematic Object Key:
13

YANMAR 152623-51150 Deflector

$18.30

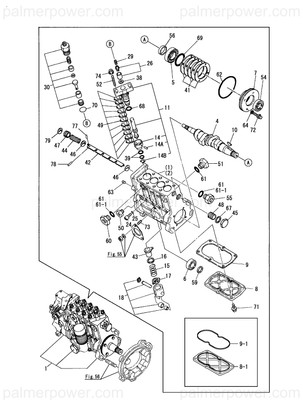

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 152623-51150 Deflector

Schematic Object Key : 13

Product Description : DEFLECTOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, INJECTION 748640-51310
4 CAMSHAFT 148620-51030
5 BEARING, HR32307J 152623-51050
6 SUPPORT A 148620-51060
7 SEAL, OIL 148620-51071
8 COLLAR 152623-51070
9 O-RING, 4D P11.0 148620-51080
10 PLUNGER ASSY 130605-51101
13 DEFLECTOR 152623-51150
14 SPRING, PLUNGER 148620-51160
15 RETAINER, SPRING A 152623-51170
16 RETAINER, SPRING B 152623-51181
17 SCREW 152623-51190
18 TAPPET ASSY 148691-51200
19 TAPPET ASSY 148691-51250
23 TAPPET 152673-51240
24 CIRCLIP 152673-51250
25 SCREW 152623-51270
26 O-RING, P9 144626-51281
27 O-RING, P6 144626-51290
28 O-RING, P6 144626-51290
29 VALVE ASSY, DELIVERY 148620-51320
32 SPRING, DELIVERY 137600-51332
33 HOLDER, DELIVERY 148640-51340
34 RETAINER, SPRING 137600-51362
35 O-RING 152673-51360
36 GASKET, DELIVERY 152673-51390
37 SUPPORT ASSY, BARREL 152679-51390
39 PIN 144626-51410
40 O-RING 152673-51420
41 PIN 144626-51430
42 O-RING 152673-51430
43 SHIM SET, CAMSHAFT 152623-51450
49 RACK, CONTROL 148621-51500
50 PINION 152623-51510
51 SCREW 144626-51521
52 SPRING, RACK 140623-51530
53 WASHER 140623-51540
54 CIRCLIP 152623-51540
55 PROTECTOR 152623-51551
56 NUT 152623-51560
57 COVER 152623-51570
58 BUSH 140623-51580
59 GASKET 152623-51580
60 GASKET 152623-51591
61 PLUG 148616-51671
62 O-RING 152673-51660
63 PLUG 144626-51670
64 O-RING, 4D19018 24356-190180
65 PLUG, M16 L17 136603-51690
66 WASHER, SEAL 144626-51700
67 PLUG 144626-51730
68 PLUG 144626-51730
69 SHIM, T=1.0 152623-51750
70 SHIM SET, ADJUSTING 152623-51760
74 STUD, M12 152623-51800
75 WASHER 152623-51810
76 PROTECTOR 130605-51830
77 BEARING, CAMSHAFT 152623-51850
78 NUT, M6 26716-060002
79 RIVET 124220-51890
80 WASHER, 8 22287-080000
81 LABEL 130605-51910
82 NUT, M12 26736-120002
83 LABEL 124610-51970
84 PLUG 144626-51940
85 PLUG 144626-51940
86 O-RING, 1016 144626-51950
87 O-RING, 1016 144626-51950
88 NUT, LOCK M8 26757-080002
89 PLUG, G1/4 158805-85900
90 SCREW, M8X32 26911-080322
91 WASHER, SEAL 12 22190-120002
92 WASHER, SEAL 16 22190-160002
93 WASHER, SPRING 5 22217-050000
94 WASHER, SPRING 6 22217-060000
95 WASHER, SPRING 12 22217-120000
96 O-RING, 1AS90.0 24341-000900
97 KEY, 7X 22 22512-070222
98 KEY, 10X 34 22512-100340
99 GASKET, 8X1.0 23414-080012
100 GASKET 124410-51861
101 GASKET, 12X1.0 23414-120016
102 RIVET 124220-51890
103 PLUG, 12 23887-120002
104 PLUG, 12 23887-120002
105 PLUG, 16 23887-160002
106 BOLT, M8X 30 26013-080302
107 BOLT, M8X 50 PLATED 26106-080502
108 BOLT, M8X 22 PLATED 26116-080226
109 STUD, M6X 16 26226-060162
110 BOLT, M6X 25 26450-060252
111 SCREW, M5X12 26557-050122
111-1 SCREW, M5X12 26022-050122
113 VALVE ASSY, OVERFLOW 148620-51950
113-1 VALVE ASSY,OVER FLOW 148620-51951
119 PUMP ASSY, FUEL FEED 148620-52000
120 JOINT ASSY 130605-54500
121 COUPLING ASSY 148620-54690
121-1 COUPLING ASSY 148965-54690
122 SLEEVE 148620-51090
