YANMAR 158510-61310 Spring, Governor

Write a Review
$9.25
SKU:
158510-61310

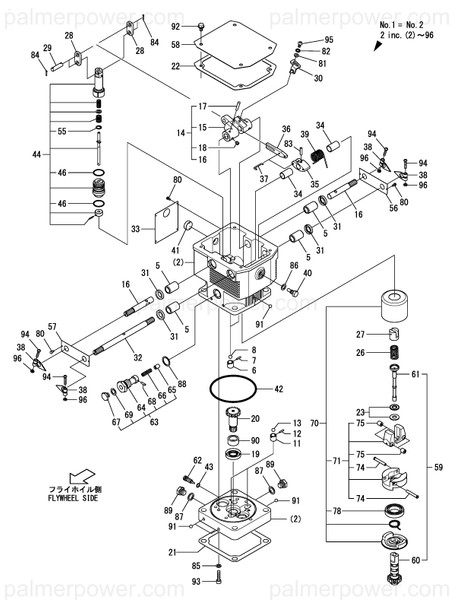

Schematic Object Key:
26

YANMAR 158510-61310 Spring, Governor

$9.25

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 158510-61310 Spring, Governor

Schematic Object Key : 26

Product Description : SPRING, GOVERNOR 158510-61310

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 GOVERNOR ASSY, HYD. (758510-61163)
2 GOVERNOR ASSY 758510-61163
5 BUSH 158510-61390
6 CASE, VALVE 158510-61850
7 PIN 158510-61860
8 BALL, STEEL 9/32 24190-090003
11 CASE, VALVE 158510-61850
12 PIN 158510-61860
13 BALL, STEEL 9/32 24190-090003
14 ARM ASSY, TERMINAL 158510-61150
15 ARM 158512-61351
16 SHAFT 158510-61360
17 PIN, TAPER 4X25 22322-040250
18 SCREW 26979-050062
19 SEAL, OIL 158510-61030
20 SHAFT, GEAR 158510-61041
21 GASKET 158510-61061
22 GASKET, HOUSING 158510-61071
23 BEARING ASSY 758510-61180
26 SPRING, GOVERNOR 158510-61310
27 FORK, SPRING 158510-61320
28 LEVER, GUIDE 158512-61330
29 PIN, GUIDE LEVER 158510-61340
30 ADJUSTER, DROOP 158510-61370
31 SEAL, OIL 158510-61380
32 SHAFT, CONTROL 158510-61400
33 LABEL 158512-61400
34 COLLAR 158510-61410
35 FORK 158510-61420
36 LEVER, FLOATING 158512-61430
37 WIRE 158510-61440
38 POINTER 158510-61450
39 SPRING, SHAFT 158510-61460
40 STOPPER, FORK 158510-61480
41 GAUGE, OIL 158510-61490
42 O-RING 158510-61610
43 O-RING, 1A P 7.0 158510-61620
44 PISTON ASSY 158510-61681
46 O-RING 158510-61591
55 RING, 12 22252-000120
56 LABEL, SHAFT L 158512-61930
57 LABEL, SHAFT R 158512-61940
58 COVER, BODY 158510-61990
59 VALVE ASSY, PILOT 158510-66051
60 BUSH, PILOT VALVE 158510-66121
61 VALVE, PILOT 158510-66220
62 VALVE, NEEDLE 158510-66700
63 VALVE ASSY, CONTROL 158510-66801
64 BODY, VALVE 158510-66810
65 PISTON 158510-66820
66 SPRING, VALVE 158510-66831
67 PLUG, VALVE 158510-66841
68 PIN, SPRING 3.0X12 22351-030012
69 GASKET, 10X1.0 23414-100000
70 WEIGHT ASSY,GOVERNOR 158510-66931
71 SUPPORT ASSY, WEIGHT 158510-66300
74 PIN, GOVERNOR WEIGHT 158510-66420
75 BEARING, FJ-59 158510-66430
78 BEARING, BALL 6905 158510-66460
80 RIVET 102210-07990
81 WASHER, 5 22117-050000
82 WASHER, SPRING 5 22222-050000
83 PIN, SPRING 4.0X18 22351-040018
84 PIN, COTTER 2.0X16 22417-200160
85 GASKET, 6X1.0 23414-060000
86 GASKET, 8X1.0 23414-080000
87 GASKET, 12X1.0 23414-120000
88 GASKET, 18X1.0 23414-180023
89 PLUG, 12 23887-120002
90 BEARING, 182412 24162-182412
91 BALL, STEEL 1/4 24190-080002
92 BOLT, M6X 10 PLATED 26106-060102
93 BOLT, M6X 25 26450-060252
94 SCREW, M4X20 26557-040202
95 SCREW, M5X10 26557-050102
96 NUT, LOCK M4 26757-040002
