YANMAR 158510-61400 Shaft, Control

Write a Review
$146.20
SKU:
158510-61400

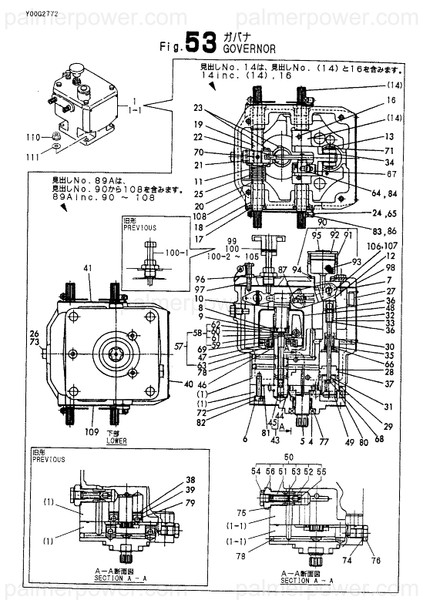

Schematic Object Key:
19

YANMAR 158510-61400 Shaft, Control

$146.20

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 158510-61400 Shaft, Control

Schematic Object Key : 19

Product Description : SHAFT, CONTROL 158510-61400

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-2 BODY ASSY, GOVERNOR 758512-61020
4 SEAL, OIL 158510-61030
5 SHAFT, GEAR 158510-61040
6 GASKET 158510-61061
7 GASKET, HOUSING 158510-61071
8 BEARING, NEEDLE 158510-61180
9 BEARING, RING 158510-61190
10-1 SPRING, GOVERNOR 158512-61311
11 FORK, SPRING 158510-61320
12-1 LEVER, GUIDE 158512-61330
13 PIN, GUIDE LEVER 158510-61340
14 ARM ASSY, TERMINAL 758510-61590
16 PIN, TAPER 4X25 22322-040250
17 SEAL, OIL 158510-61380
18 BUSH 158510-61390
19 SHAFT, CONTROL 158510-61400
20 COLLAR 158510-61410
21 FORK 158510-61420
22 LEVER, FLOATING 158512-61430
23 WIRE 158510-61440
24-1 POINTER 158510-61450
25 SPRING, SHAFT 158510-61460
26 STOPPER, FORK 158510-61480
27 GAUGE, OIL 158510-61490
28-1 BUSH, COMPENSATOR 158512-61500
29 PISTON 158510-61510
30 SPRING, COMPENSATOR 158512-61520
31 ROD, COMPENSATOR 158510-61530
32-1 PISTON, POWER 158512-61540
33 SPRING, COMPENSATOR 158512-61550
35 SPACER 158510-61570
36 SEAT, SPRING 158510-61580
40 NAMEPLATE 158512-61900
41-1 LABEL, SHAFT L 158512-61930
43 VALVE ASSY, PILOT 158510-66090
44 BUSH 158510-66130
45 VALVE, PILOT 158510-66230
46 BASE 158510-66450
47 BEARING, BALL 6905 158510-66460
48 COVER 158510-66480
49 VALVE, NEEDLE 158510-66700
50 VALVE ASSY, CONTROL 158510-66801
51 BODY, VALVE 158510-66810
52 PISTON 158510-66820
53 SPRING, VALVE 158510-66831
54 PLUG, VALVE 158510-66841
55 PIN, SPRING 3.0X12 22351-030012
56 GASKET, 10X1.0 23414-100000
57 WEIGHT ASSY,GOVERNOR 158510-66910
58 WEIGHT COMP,GOVERNOR 158510-66400
59 WEIGHT,GOVERNOR 158510-66410
60 PIN, GOVERNOR WEIGHT 158510-66420
61 BEARING, FJ-59 158510-66430
62 SUPPORT, WEIGHT 158510-66440
63 SPRING 158510-66570
64 WASHER, 5 22117-050000
65 WASHER, SPRING 5 22222-050000
66 RING, 12 22252-000120
67 ADJUSTER, DROOP 158510-61370
68 PIN, SPRING 2.0X16 22351-020016
70 PIN, SPRING 4.0X18 22351-040018
71 PIN, COTTER 2.0X16 22417-200160
72 GASKET, 6X1.0 23414-060000
73 GASKET, 8X1.0 23414-080000
74 GASKET, 12X1.0 23414-120000
75 GASKET, 18X1.0 23414-180023
76 PLUG, 12 23887-120002
77 BEARING, 182412 24162-182412
78 BALL, STEEL 1/4 24190-080002
80 O-RING, 1A P 7.0 158510-61620
81 O-RING 158510-61610
82 BOLT, M6X 25 26450-060252
83-1 SCREW, M4X20 26557-040202
84 SCREW, M5X10 26557-050102
86-1 NUT, LOCK M4 26757-040002
87 SCREW 26979-050062
89 SCREW, M6X6 137600-53900
89A-1 COVER ASSY 158512-67000
90 BREATHER 140673-51800
91 CASE,BREATHER 140673-51810
92 COVER, BREATHER 140673-51820
93 ELEMENT 140673-51830
94 GASKET 140673-51840
95 LABEL 144626-51930
96 NUT, M6 124550-66370
97 SCREW 106150-66520
98 COVER 158512-67090
99-1 KNOB, CONTROL 158510-67400
100-2 BOLT 158510-67410
101 SCREW 158510-67420
102 NUT 158510-67430
103-1 LABEL, CONTROL KNOB 158510-67450
104-1 PIN, SPRING 3.0X20 22351-030020
105 GASKET, 14X1.0 23414-140018
106 PLATE, BREATHER 158510-67850
107 SCREW, M4X 8 26022-040082
108 BOLT, M6X 20 PLATED 26106-060202
110 NUT, M10 26366-100002
111 WASHER, 10 22117-100000
