YANMAR 158512-61330 Lever, Guide

Write a Review
$15.77
SKU:
158512-61330
Schematic Object Key:
15

YANMAR 158512-61330 Lever, Guide

$15.77

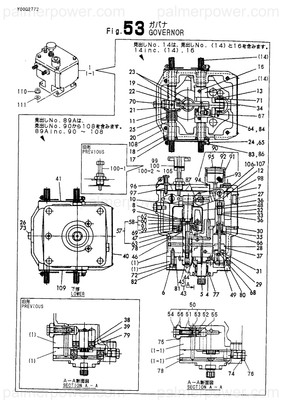

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 158512-61330 Lever, Guide

Schematic Object Key : 15

Product Description : LEVER, GUIDE 158512-61330

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HYDRAULIC GOVERNOR 758512-61301
6 SEAL, OIL 158510-61030
7 SHAFT, GEAR 158510-61040
8 GASKET 158510-61061
9 GASKET, HOUSING 158510-61071
10 BEARING ASSY 758510-61180
13 SPRING, GOVERNOR 158512-61311
14 FORK, SPRING 158510-61320
15 LEVER, GUIDE 158512-61330
16 PIN, GUIDE LEVER 158510-61340
17 ARM 158512-61351
18 SHAFT 158510-61360
19 ADJUSTER, DROOP 158510-61370
20 SEAL, OIL 158510-61380
21 BUSH 158510-61390
22 SHAFT, CONTROL 158510-61400
23 LABEL 158512-61400
24 COLLAR 158510-61410
25 FORK 158510-61420
26 LEVER, FLOATING 158512-61430
27 WIRE 158510-61440
28 POINTER 158510-61450
29 SPRING, SHAFT 158510-61460
30 STOPPER, FORK 158510-61480
31 GAUGE, OIL 158510-61490
32 O-RING 158510-61610
33 O-RING, 1A P 7.0 158510-61620
34 PISTON ASSY 158510-61681
36 O-RING 158510-61591
41 SPRING, COMPENSATOR 158510-61720
42 SPRING, COMPENSATOR 158510-61750
43 SPACER 158510-61780
44 PIN 158510-61790
45 RING, 12 22252-000120
46 CASE, VALVE 158510-61850
47 PIN 158510-61860
48 LABEL, SHAFT L 158512-61930
49 LABEL, SHAFT R 158512-61940
50 VALVE ASSY, PILOT 158510-66050
51 BUSH 158510-66120
52 VALVE, PILOT 158510-66220
53 VALVE, NEEDLE 158510-66700
54 VALVE ASSY, CONTROL 158510-66801
55 BODY, VALVE 158510-66810
56 PISTON 158510-66820
57 SPRING, VALVE 158510-66831
58 PLUG, VALVE 158510-66841
59 PIN, SPRING 3.0X12 22351-030012
60 GASKET, 10X1.0 23414-100000
61 WEIGHT ASSY,GOVERNOR 158510-66900
62 WEIGHT COMP,GOVERNOR 158510-66400
64 PIN, GOVERNOR WEIGHT 158510-66420
65 BEARING, FJ-59 158510-66430
68 BEARING, BALL 6905 158510-66460
71 RIVET 102210-07990
72 WASHER, 5 22117-050000
73 WASHER, SPRING 5 22222-050000
74 PIN, TAPER 4X25 22322-040250
75 PIN, SPRING 4.0X18 22351-040018
76 PIN, COTTER 2.0X16 22417-200160
77 GASKET, 6X1.0 23414-060000
78 GASKET, 8X1.0 23414-080000
79 GASKET, 12X1.0 23414-120000
80 GASKET, 18X1.0 23414-180023
81 PLUG, 12 23887-120002
82 BEARING, 182412 24162-182412
83 BALL, STEEL 1/4 24190-080002
84 BALL, STEEL 9/32 24190-090003
85 BOLT, M6X 25 26450-060252
86 SCREW, M4X20 26557-040202
87 SCREW, M5X10 26557-050102
88 NUT, LOCK M4 26757-040002
89 SCREW 26979-050062
91 BREATHER 140673-51800
95 GASKET 140673-51840
96 LABEL 124610-51970
97 NUT, M6 124550-66370
98 SCREW 106150-66520
99 COVER 158512-67090
100 KNOB, CONTROL 158510-67400
101 BOLT 158510-67410
102 SCREW 158510-67420
103 NUT 158510-67430
104 LABEL, CONTROL KNOB 158510-67450
105 PLATE, BREATHER 158510-67850
106 PIN, SPRING 3.0X20 22351-030020
107 GASKET, 14X1.0 23414-140018
108 SCREW, M4X 8 26022-040082
109 BOLT, M6X 20 PLATED 26106-060202
