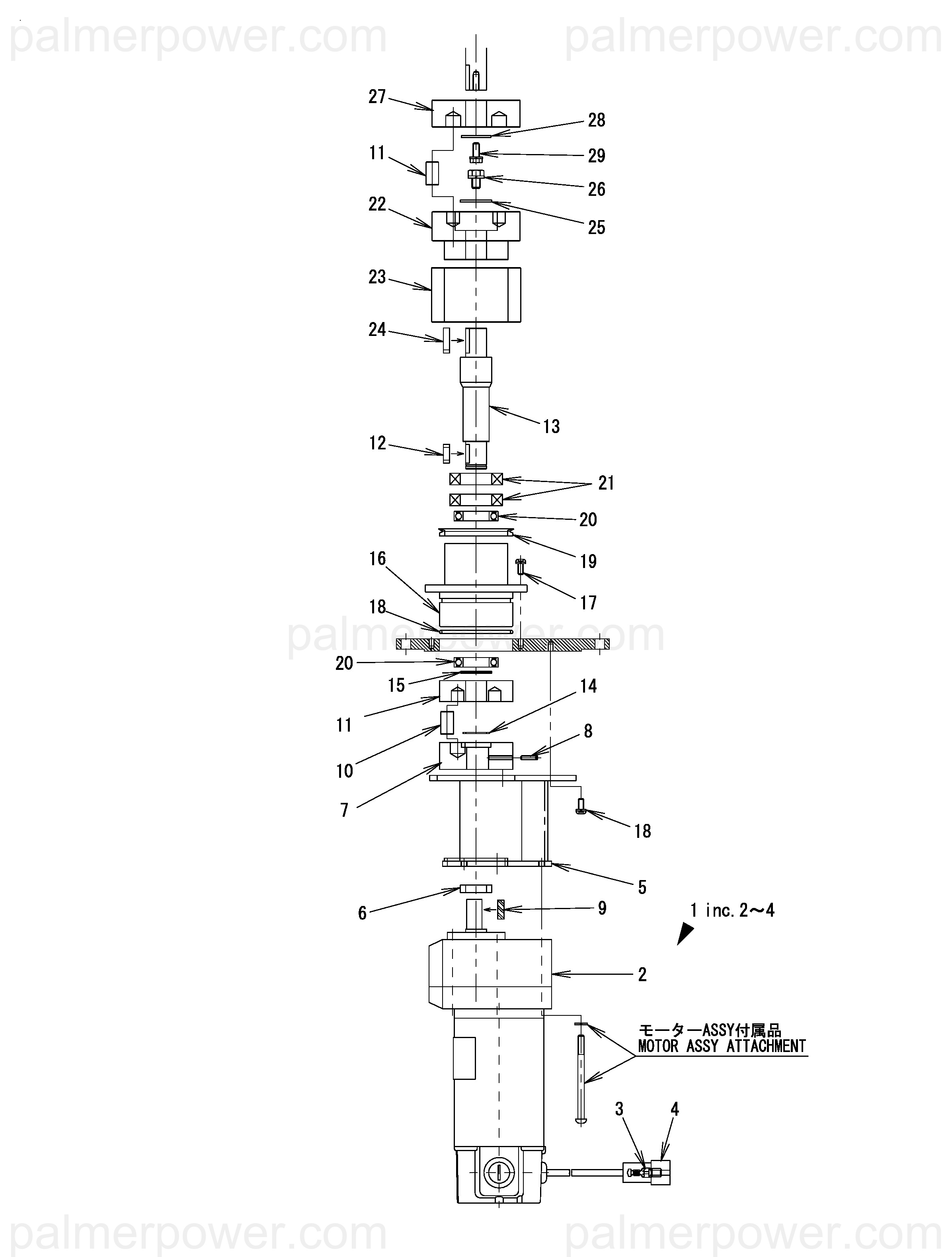

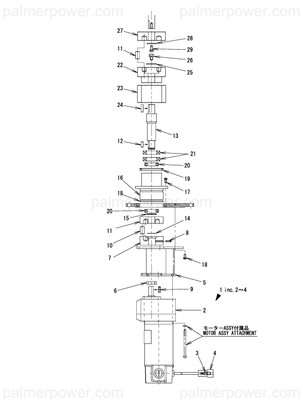

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 7
Product Description : MOTOR SIDE COUPLING 15T709-51420
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
| Ref | Description | Part No. |
|---|---|---|
| 1 | MOTOR ASSY | 15T709-20390 |
| 2 | MOTOR 48V150W | 15T709-51370 |
| 3 | M TERMINAL | 15T709-52210 |
| 4 | M HOUSING | 15T709-52220 |
| 5 | METAL FITTINGS | 15T709-51400 |
| 6 | COLOR(MOTOR AXIS | 15T709-53190 |
| 7 | MOTOR SIDE COUPLING | 15T709-51420 |
| 8 | SOCKETSETSCR M4X16 | 15T709-89370 |
| 9 | KEY 6X6 18L | 15T709-52540 |
| 10 | COUPLING PIN A | 15T709-53220 |
| 11 | MOTOR SIDE COUPLING | 15T709-53200 |
| 12 | KEY(6X6 18L) | 15T707-51370 |
| 13 | OUTPUT SHAFT ASSY | 15T707-51330 |
| 14 | SNAP RING | 15T707-51300 |
| 15 | SPACER | 15T707-51310 |
| 16 | BEARING CASE | 15T707-51320 |
| 17 | BUTTONCAP M5X12 S | 15T707-80010 |
| 17A | BUTTONCAP M5X12 | 15T707-89020 |
| 17B | SPRING ROCK WASHERS | 15T707-89030 |
| 18 | O-RING, 1AG65.0 | 24321-000650 |
| 19 | V PACKING | 15T707-51410 |
| 20 | BEARING | 15T707-51270 |
| 21 | OIL SEAL | 15T707-51420 |
| 22 | WHEEL SIDE COUPLING | 15T709-53210 |
| 23 | COUPLING COVER | 15T709-51470 |
| 24 | KEY(6X6-24L) | 15T707-51380 |
| 25 | SUPPRESSION BOARD | 15T709-51480 |
| 26 | BOLT M8X12 S | 15T707-80180 |
| 26A | SPRING ROCK WASHERS | 15T707-89100 |
| 26B | BOLT M8X12 | 15T707-89250 |
| 27 | WHEEL SIDE COUPLING | 15T709-51490 |
| 28 | SUPPRESSION BOARD | 15T709-51090 |
| 29 | BOLT M6X15 S | 15T707-80290 |
| 29A | SPRING ROCK WASHERS | 15T707-89180 |
| 29B | BOLT M6X15 | 15T707-89350 |
