YANMAR 170904-79831 Wire

Write a Review
$42.43
SKU:
170904-79831
Schematic Object Key:
64

YANMAR 170904-79831 Wire

$42.43

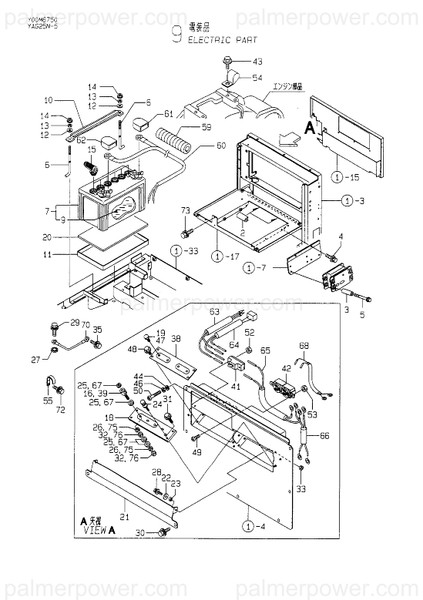

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 170904-79831 Wire

Schematic Object Key : 64

Product Description : WIRE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BAND, 140 121750-59890
2 GUIDE, HOSE 198230-61560
3 SPACER 170903-78351
4 BOLT, M8X 20 26014-080202
5 BOLT, M6X 95 PLATED 26106-060952
6 ROD, BATTERY CLAMP 194440-61741
7 BATTERY ASSY, N70Z 170903-77200
9 ELECTROLYTE, BATTERY 183650-79530
10 CLAMP, BATTERY 170903-77790
11 BRACKET 170905-77820
12 WASHER, 6 22137-060000
13 WASHER, SPRING 6 22217-060000
14 NUT, M6 26366-060002
15 CATALYER 46120-551770
16 TERMINAL 170903-79300
17 PIN, PARALLEL M3X 8 22312-030080
18 PLATE, TERMINAL 170903-79321
19 BOLT 170903-79330
20 SEAT, RUBBER 170904-79380
21 COVER, TERMINAL 170904-79390
22 PLATE, RUBBER 170903-79600
23 COLLAR 170903-79610
24 TERMINAL 183860-91420
25 WASHER, 8 22133-080000
26 WASHER, SPRING 8 22213-080000
27 WASHER, SPRING 6 22232-060000
28 BOLT, M6X 20 26014-060202
29 BOLT, M6X 20 26014-060202
30 BOLT, M8X 30 26014-080302
31 BOLT, M6X 25 PLATED 26106-060252
32 NUT, M8 26713-080002
33 NUT, M6 26716-060002
34 NUT, LOCK M5 26753-050002
35 BOLT M 8X 20 26014-080204
36 BOLT, M8X 16 PLATED 26106-080162
37 BOLT, M8X 16 PLATED 26106-080162
38 PLATE, TERMINAL 170903-79340
39 TERMINAL 170903-79300
40 PIN, PARALLEL M3X 8 22312-030080
41 BREAKER 170904-79420
42 SOCKET, 125VX2 183920-91320
43 BOLT, M10X 12 PLATED 26106-100122
44 WASHER, 4 22137-040000
45 NUT, M6 26366-060002
46 WASHER, SPRING 4 22217-040000
47 BOLT 170903-79330
48 BOLT, M6X 25 PLATED 26106-060252
49 SCREW, M4X16 26557-040162
50 SCREW, M4X50 26557-040502
51 NUT, M8 26366-080002
52 NUT, M4 26716-040002
53 NUT, M4 26716-040002
54 RETAINER 144676-39440
55 RETAINER, PIPE 121575-49310
56 BAND, 140 121750-59890
57 CLAMP, CORD 105430-67110
58 CLAMP, CORD 105430-67110
59 TUBE, CORRUGATED 170903-77450
60 CABLE ASSY, BATTERY 170904-79240
61 CAP, BATTERY 170903-79270
62 CAP, BATTERY 170903-79280
63 WIRE 170904-79820
64 WIRE 170904-79831
65 WIRE 170901-79851
66 WIRE 170904-79880
67 WASHER, 8 22133-080000
68 WIRE 170904-79891
69 HARNESS ASSY, WIRE 170903-79901
70 CABLE, EARTH 170903-79970
71 PIN, COTTER 2.0X25 22417-200250
72 BOLT, M6X 20 26014-060202
73 BOLT, M6X 20 26014-060202
74 BOLT, M8X 20 26014-080202
75 WASHER, SPRING 8 22213-080000
76 NUT, M8 26713-080002
