YANMAR 177005-02550 Shim Set

Write a Review
$17.33
SKU:
177005-02550
Schematic Object Key:
11

YANMAR 177005-02550 Shim Set

$17.33

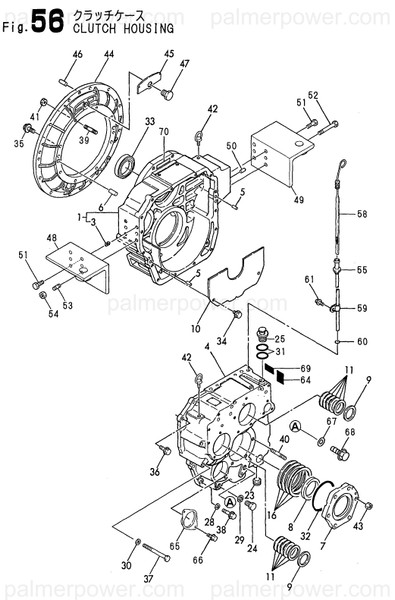

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177005-02550 Shim Set

Schematic Object Key : 11

Product Description : SHIM SET 177005-02550

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BODY ASSY, CASE 177560-02020
3 INSERT, 12X1.5D 26273-120151
4 COVER, CASE 177560-02061
5 PIN, PARALLEL 177099-02130
6 PIN, PARALLEL 177099-02130
7 COVER 177560-02200
8 SEAL, OIL 177560-02230
9 BUSH 177061-02250
10 PLATE, BAFFLE 177560-02501
11 SHIM SET 177005-02550
16 SHIM SET 177030-02860
23 PLUG, PT3/4 177040-02910
24 PLUG, MAGNET M16X1.5 177035-02920
25 BREATHER ASSY 177560-02960
28 WASHER, 10 22133-100000
29 WASHER, SEAL 16 22190-160003
30 WASHER, 10 22287-100000
31 O-RING, 1AP25.0 24311-000250
32 O-RING, 1AG115.0 24321-001150
33 SEAL, OIL TC709212 24423-709212
34 BOLT, M10X 20 PLATED 26106-100202
35 BOLT, M10X 30 PLATED 26106-100302
36 BOLT, M10X 35 PLATED 26106-100352
37 BOLT, M10X135 PLATED 26116-101352
38 BOLT, M10X 40 PLATED 26203-100402
39 STUD, M10X 22 26226-100222
40 STUD, M12X 30 26226-120302
41 NUT, M10 26366-100002
42 EYE BOLT M12 26610-120002
43 NUT, M12 26716-120002
44 FLANGE, MOUNTING 177068-02101
45 COVER 177059-02381
46 PIN, PARALLEL 177099-02130
47 PLUG, 18 23887-180002
48 FOOT, MOUNTING 177560-02280
49 FOOT, MOUNTING 177560-02290
50 PIN, PARALLEL M12X25 22312-120250
51 BOLT, M12X 30 PLATED 26116-120302
52 BOLT, M12X 30 PLATED 26116-120302
53 STUD, M12X 30 26226-120302
54 NUT, M12 26716-120002
55 BRACKET 177560-02651
58 DIPSTICK 177560-02660
59 CLAMP, A10X12 23297-100121
60 GASKET, 16X1.0 23414-160000
61 BOLT, M10X 20 PLATED 26106-100202
64 LABEL 177050-02811
65 COVER 177010-02430
66 BOLT, M10X 14 PLATED 26106-100142
67 WASHER, SEAL 16 22190-160003
68 PLUG, 16 23887-160002
69 LABEL,CLUTCH OIL 177551-02951
70 LABEL, YANMAR 104507-07190
