YANMAR 177010-05322 Gasket, Valve

Write a Review
$7.02
SKU:
177010-05322
Schematic Object Key:
14-1

YANMAR 177010-05322 Gasket, Valve

$7.02

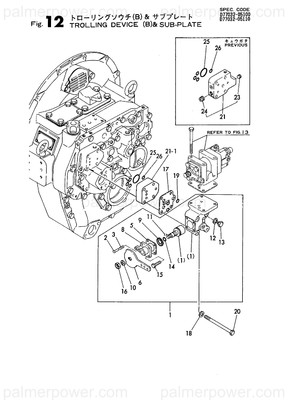

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177010-05322 Gasket, Valve

Schematic Object Key : 14-1

Product Description : GASKET, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY 777010-05610
3 PLUG, M6 177010-05470
4 COVER 177010-05241
5 GASKET 177010-05251
5-1 GASKET 177010-05252
6 CLAW 122117-03670
7 SPRING 122117-03680
8-1 PIN, SPRING 4.0X16 22351-040016
9 BOLT, M8X 20 PLATED 26106-080202
10 BOLT, M8X 30 PLATED 26106-080302
11 BODY ASSY, VALVE 177010-05290
13 PLUG, R01 23871-010000
14 GASKET, VALVE 177010-05321
14-1 GASKET, VALVE 177010-05322
15 BOLT, M8X 40 PLATED 26106-080402
17 PIN, PARALLEL M4X14 22312-040140
18 VALVE 177010-05371
19 RETAINER, SPRING 177010-05380
20 SPRING 177010-05430
21 SPRING, VALVE 177010-05420
22 SPACER 177010-05400
23 CASE, SPRING 196101-00890
24 GASKET, 24X1.0 23414-240031
25 NUT, CAP 125310-34160
26 GASKET, 14X1.0 23414-140000
27 SCREW 196101-00900
28 SHOE, SPRING 196101-00910
29 NUT, LOCK M6 26756-060002
30 SPRING, VALVE 177010-05351
31 SHAFT, LEVER 177010-05221
32 O-RING, 1AP9.0 24311-000090
33 RING, 12 22242-000120
34 PIN, PARALLEL M4X 8 22312-040080
35 LEVER 177010-05490
36 NUT, LOCK M8 26756-080002
37 WASHER 8 22212-080000
38 GASKET 177010-05211
38-1 GASKET 177010-05212
39 BOLT, M8X 95 PLATED 26106-080952
40 VALVE ASSY, SWITCH 777010-05590
40-1 VALVE ASSY, SWITCH 777010-05951
43-1 PLUG, 12 23887-120002
43-2 PLUG, 12 23887-120002
44 GASKET, 12X1.0 23414-120000
44-1 GASKET, 12X1.0 23414-120000
45 COVER, VALVE 123672-84311
46 GASKET, COVER 177001-04320
46-1 GASKET, COVER 177001-04321
47 CLAW 122117-03670
48 SPRING 122117-03680
49 BOLT, M6X 16 PLATED 26106-060162
51 BEARING, TP-0303 123672-84340
52 O-RING, 1AP11.0 24311-000110
53 PIN, PARALLEL M4X 6 22312-040060
54 LEVER 177001-04330
55 NUT, LOCK M10 26756-100002
56 SPRING WASHER 10 22212-100000
57 GASKET, VALVE 177010-05110
57-1 GASKET, VALVE 177010-05111
58 O-RING, 1AS9.0 24341-000090
59 BOLT, M8X150 PLATED 26116-081502
59-1 BOLT, M8X160 PLATED 26116-081602
60 WASHER, 8 22137-080000
61 PLATE ASSY 177011-15010
63 PLUG, R02 23871-020000
64 PLUG, R01 23871-010000
65 O-RING, 1AS9.0 24341-000090
66 O-RING, 1AP35.0 24311-000350
