YANMAR 177020-02251 Cover

Write a Review
$339.42
SKU:
177020-02251
Schematic Object Key:
16-1

YANMAR 177020-02251 Cover

$339.42

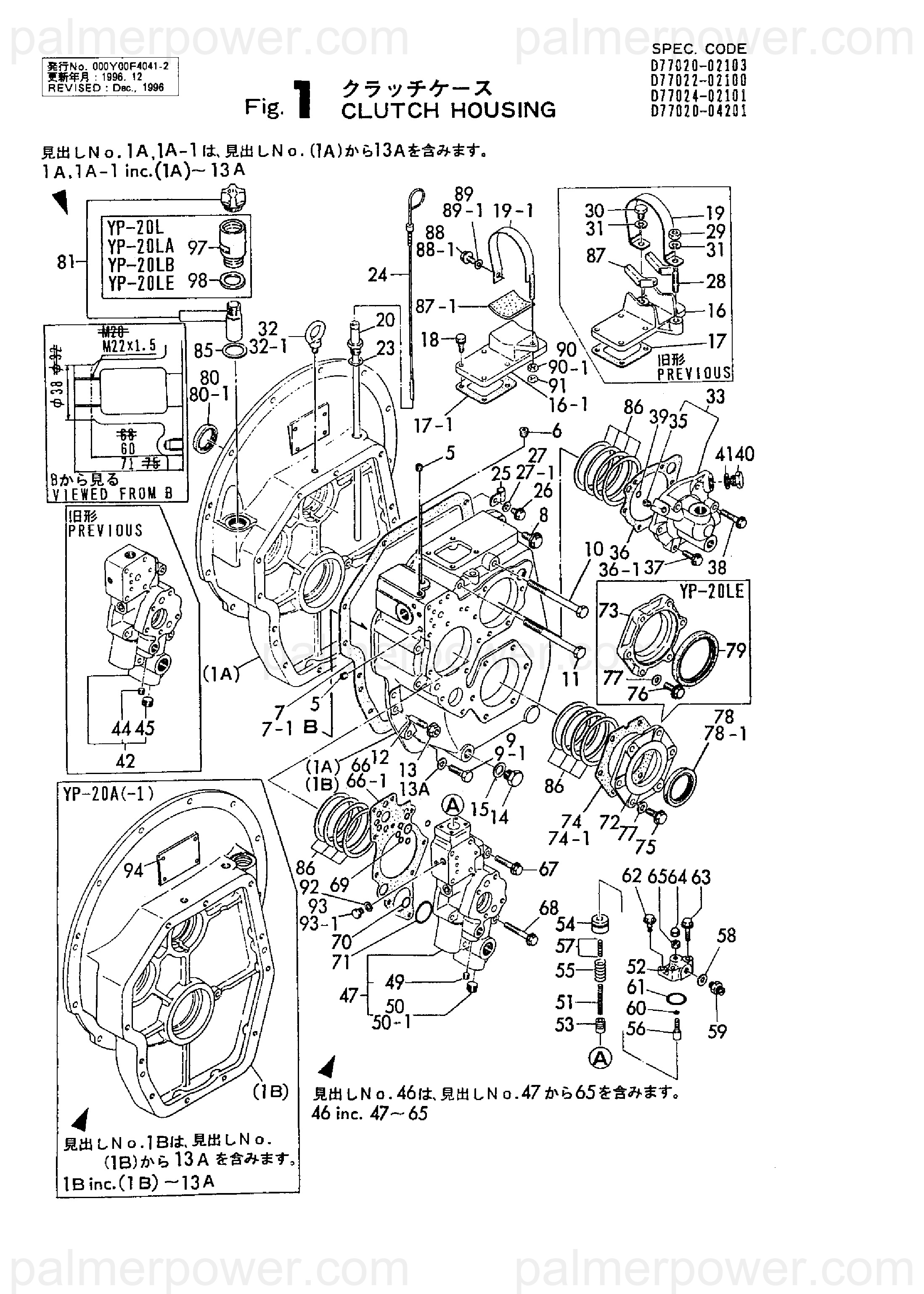

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177020-02251 Cover

Schematic Object Key : 16-1

Product Description : COVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A-2 BODY ASSY, CASE 177020-02002
5 PLUG, R01 23871-010000
6 PLUG, R02 23871-020000
7 GASKET 177020-02040
7-1 GASKET 177020-02041
8 BOLT, M10X 25 PLATED 26106-100252
9 BOLT, M10X 35 PLATED 26106-100352
9-1 BOLT, M10X 35 PLATED 26203-100352
10 BOLT, M10X115 PLATED 26116-101152
11 BOLT, M10X120 PLATED 26116-101202
12 PIN, TAPER 10X 22 22333-100220
13 NUT, M10 26366-100002
13A WASHER, 10 22137-100000
14 PLUG 23881-160002
15 GASKET, 16X1.0 23414-160000
16-1 COVER 177020-02251
17 GASKET 177020-02260
17-1 GASKET 177020-02261
18 BOLT, M8X 22 26013-080222
19-1 RETAINER 177010-04912
20 BRACKET ASSY 177020-02601
23 GASKET, 16X1.0 23414-160000
24 DIPSTICK 177020-02650
25 RETAINER 177020-02630
26 BOLT, M8X 16 PLATED 26106-080162
27 WASHER, SPRING 8 22217-080000
27-1 WASHER 8 22212-080000
32 EYEBOLT 26610-100002
32-1 EYE BOLT M12 26610-120002
33 COVER ASSY 177020-02090
35 PLUG, R01 23871-010000
36 GASKET 177020-02110
36-1 GASKET 177020-02111
37 BOLT, M8X 28 PLATED 26106-080282
38 BOLT, M8X 45 PLATED 26106-080452
39 O-RING, 1AS9.0 24341-000090
40 PLUG 23881-160002
41 GASKET, 16X1.0 23414-160000
42 COVER ASSY 177020-02140
44 PLUG, R01 23871-010000
45 PLUG, R03 23873-030000
46 COVER ASSY 777020-02610
47 COVER ASSY 177020-02141
49 PLUG, R01 23871-010000
50 PLUG, R03 23873-030000
50-1 PLUG, R03 23871-030000
51 SPRING 177020-04050
52 COVER 177032-04111
53 VALVE, CONTROL 177032-04121
54 VALVE 177032-04131
55 SPRING 177032-04150
56 SCREW 177032-04160
57 SHIM SET 177032-04170
58 GASKET, 12X1.0 23414-120000
59 UNION, 6 23831-060000
60 O-RING, 1AS8.0 24341-000080
61 O-RING, 1AS34.0 24341-000340
62 BOLT, M8X 20 PLATED 26106-080202
63 BOLT, M8X 35 PLATED 26106-080352
64 NUT, CAP M8 26667-080002
65 NUT, LOCK M8 26756-080002
66 GASKET 177020-02160
66-1 GASKET 177020-02161
67 BOLT, M8X 45 PLATED 26106-080452
68 BOLT, M8X 60 PLATED 26106-080602
69 O-RING, 1AS9.0 24341-000090
70 O-RING, 1AP14.0 24311-000140
71 O-RING, 1AG35.0 24321-000350
73 COVER 177024-02330
74 GASKET 177020-02340
74-1 GASKET 177020-02341
76 BOLT, M10X 35 PLATED 26106-100352
77 WASHER, 10 22287-100000
79 SEAL, OIL TC7510013 24421-750013
80 SEAL SC35 50 8,OIL 125600-54800
80-1 SEAL, OIL TC355008 24421-355008
81 PLUG ASSY, M30X1.5 123672-82850
85 WASHER, SEAL 30 43400-500610
86 SHIM SET 177005-02550
87-1 RUBBER 177020-04611
88 BOLT, M8X 16 PLATED 26106-080162
88-1 BOLT, M8X 16 26013-080162
89 WASHER, SPRING 8 22217-080000
89-1 WASHER 8 22131-080000
90 NUT, M8 26716-080002
90-1 NUT, M8 26712-080002
91 NUT, LOCK M8 26756-080002
92 GASKET, 12X1.0 23414-120000
93 PLUG, 12 23887-120002
93-1 PLUG 23881-120002
94 RIVET 2.5X 4 22624-250040
97 SPACER 123672-82910
98 GASKET, 30X1.0 23414-300000
