YANMAR 177040-03272 Seal, Ring A

Write a Review
$23.14
SKU:
177040-03272
Schematic Object Key:
2

YANMAR 177040-03272 Seal, Ring A

$23.14

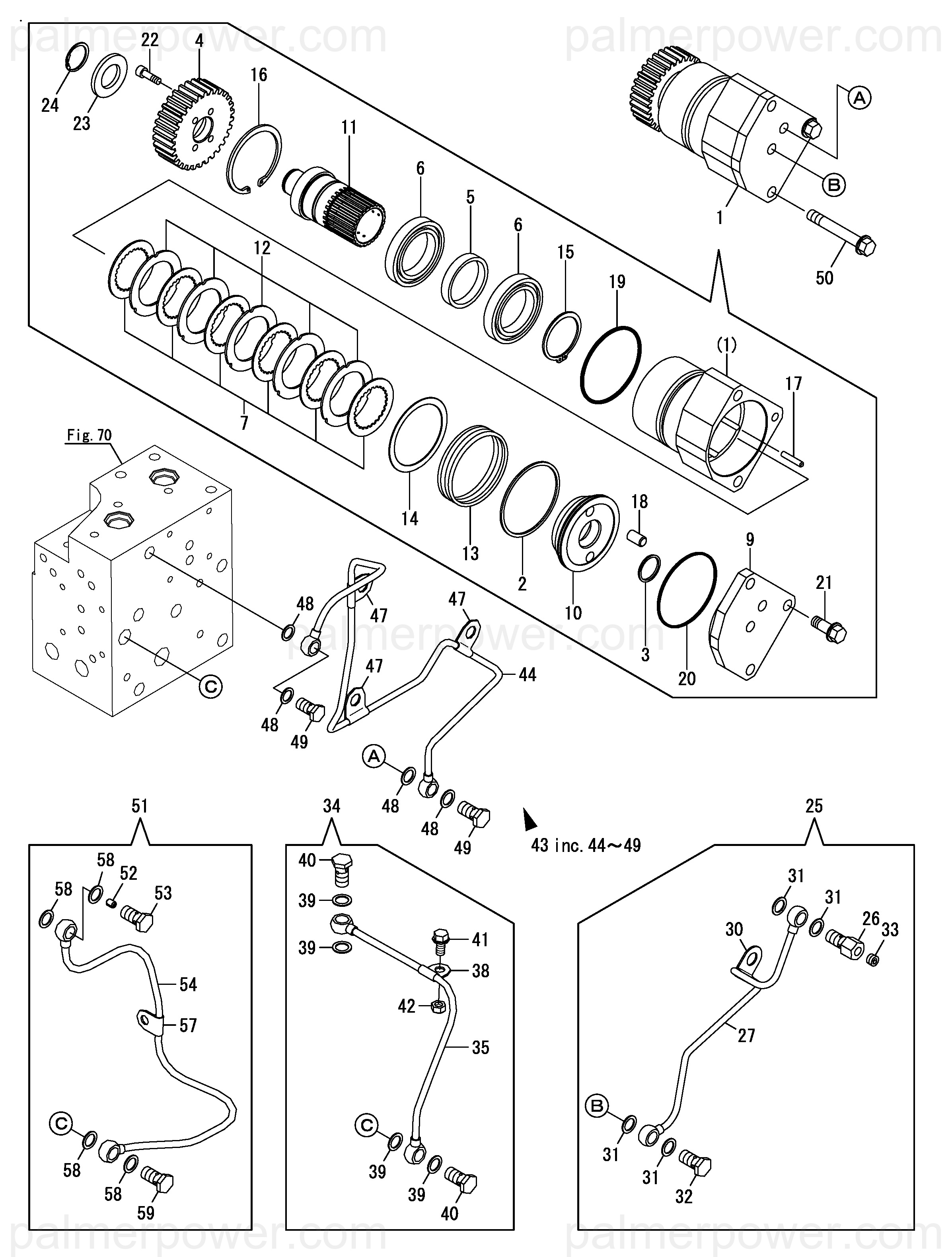

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177040-03272 Seal, Ring A

Schematic Object Key : 2

Product Description : SEAL, RING A 177040-03272

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BRAKE ASSY 177517-04923
2 SEAL, RING A 177040-03272
3 RING 177040-03281
4 GEAR, GOVERNOR Z=30 177068-04392
5 PEACE, BRAKE 177517-04861
6 BEARING, BALL 177503-04870
7 DISK, FRICTION 177517-04910
9 COVER 177517-04941
10 PISTON, BRAKE 177517-04951
11 SHAFT, BRAKE 177517-04962
12 PLATE, STEEL 177517-04971
13 SPRING, RETURN 177517-04981
14 RETAINER, SPRING 177517-04990
15 RING, 45 22242-000450
16 RING, 68 22252-000680
17 PIN, PARALLEL M5X25 22312-050250
18 PIN, PARALLEL M10X16 22312-100160
19 O-RING, 1AG75.0 24321-000750
20 O-RING, 1AS75.0 24341-000750
21 BOLT, M10X 25 PLATED 26106-100252
22 BOLT, M6X 20 26450-060202
23 WASHER, 24 22137-240000
24 RING, S-25 22292-000250
25 PIPE ASSY, BRAKE LO 177507-07430
26 BOLT 177511-07110
27 PIPE, BRAKE LO 177507-07440
30 CLAMP, A6X12 23297-060121
31 GASKET, 12X1.0 23414-120000
32 BOLT, JOINT 6 23857-060000
33 PLUG, R01 23871-010000
34 PIPE KIT, BRAKE HO-P 177507-07700
35 PIPE ASSY, BRK HO-P 177507-07710
38 CLAMP, A6X 8 23297-060081
39 GASKET, 12X1.0 23414-120000
40 BOLT, JOINT 6 23857-060000
41 BOLT, M8X 16 PLATED 26106-080162
42 NUT, M8 26716-080002
43 PIPE KIT, BRAKE HO-A 177507-07730
44 PIPE ASSY, BRK HO-A 177507-07740
47 CLAMP, A6X12 23297-060121
48 GASKET, 12X1.0 23414-120000
49 BOLT, JOINT 6 23857-060000
50 BOLT, M10X 70 PLATED 26106-100702
51 PIPE KIT, BRAKE HO-P 177515-07700
52 ORIFICE, 0.8 177515-04530
53 BOLT, PIPE JOINT 177515-04540
54 PIPE ASSY, BRK HO-P 177515-07710
57 CLAMP, A6X 8 23297-060081
58 GASKET, 12X1.0 23414-120000
59 BOLT, JOINT 6 23857-060000
