YANMAR 177055-02001 Body Assy, Case

Write a Review
$9,990.33
SKU:
177055-02001
Schematic Object Key:
1

YANMAR 177055-02001 Body Assy, Case

$9,990.33

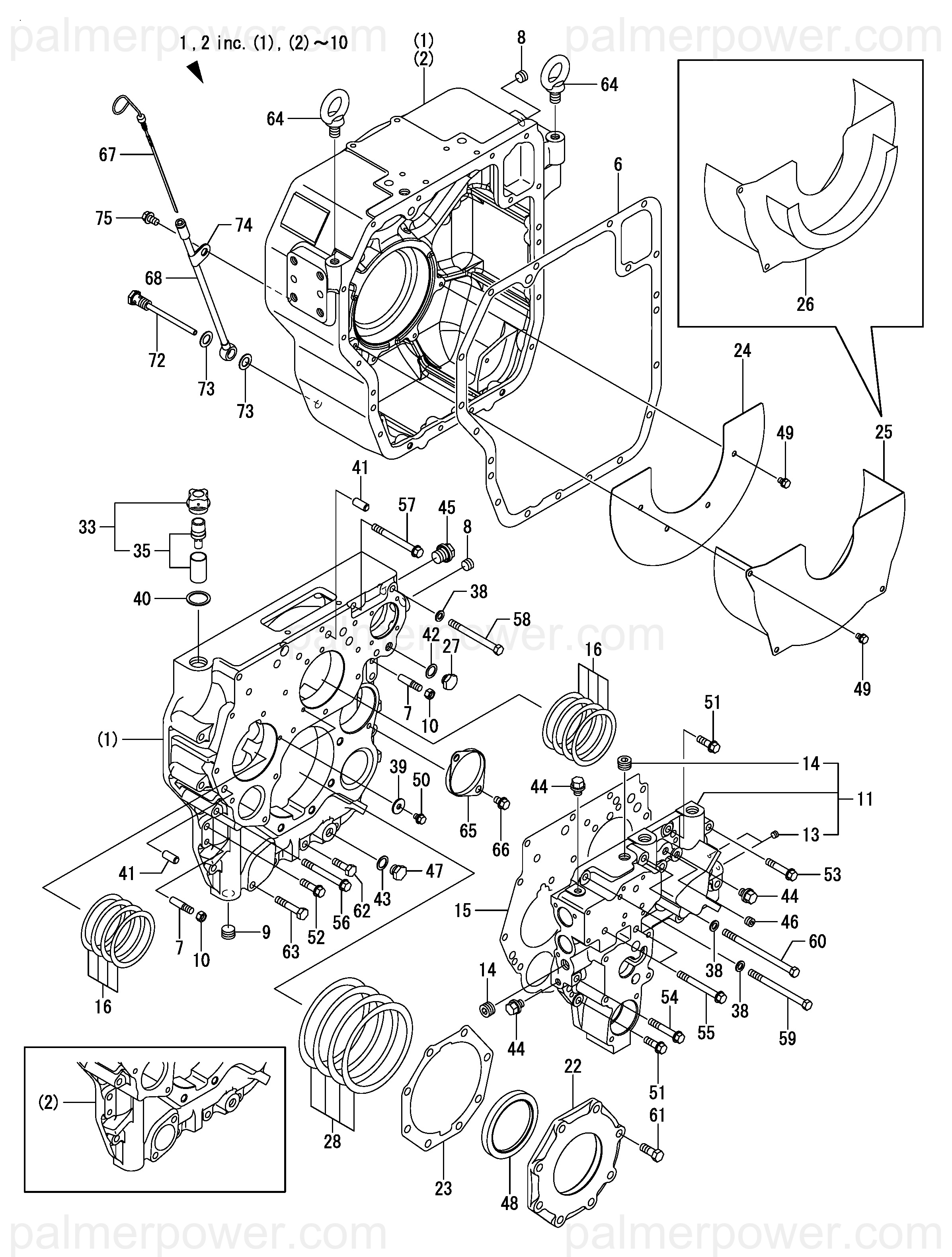

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177055-02001 Body Assy, Case

Schematic Object Key : 1

Product Description : BODY ASSY, CASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BODY ASSY, CASE 177055-02001
2 BODY ASSY, CASE 177055-02271
6 GASKET, COVER 177055-02041
7 PIN, TAPER 10X 28 22333-100280
8 PLUG, R03 23871-030000
9 PLUG, R04 23871-040000
10 NUT, M10 26716-100002
11 COVER ASSY 177055-02101
13 PLUG, R01 23871-010000
14 PLUG, R04 23871-040000
15 GASKET 177055-02121
16 SHIM SET 177411-02550
22 COVER 177055-02750
23 GASKET, COVER 177055-02761
24 PLATE, BAFFLE 177055-02800
25 PLATE, BAFFLE 177055-02810
26 PLATE, BAFFLE 177555-02810
27 PLUG, MAGNET M16X1.5 177035-02920
28 SHIM SET 139683-82551
33 PLUG ASSY, M30X1.5 123672-82850
35 THROWER ASSY, OIL 123672-82860
38 WASHER, 10 22117-100000
39 WASHER 8 22151-080000
40 WASHER, SEAL 30 22190-300002
41 PIN, PARALLEL M12X25 22312-120250
42 GASKET, 16X1.0 23414-160000
43 GASKET, 16X1.0 23414-160000
44 PLUG, 12 23490-120002
45 PLUG, 20 23490-200002
46 PLUG, R02 23871-020000
47 PLUG 16,HEX. 23884-160002
48 SEAL, OIL TC9011513 24423-901513
49 BOLT, SPRING M8X 12 26013-080122
50 BOLT, M8X 10 PLATED 26106-080102
51 BOLT, M10X 30 PLATED 26106-100302
52 BOLT, M10X 35 PLATED 26106-100352
53 BOLT, M10X 50 PLATED 26106-100502
54 BOLT, M10X 60 PLATED 26106-100602
55 BOLT, M10X 90 PLATED 26106-100902
56 BOLT, M10X 90 PLATED 26106-100902
57 BOLT, M10X 95 PLATED 26106-100952
58 BOLT, M10X105 PLATED 26116-101052
59 BOLT, M10X125 PLATED 26116-101252
60 BOLT, M10X155 PLATED 26116-101552
61 BOLT, M12X 30 PLATED 26116-120302
62 BOLT, M10X 35 PLATED 26203-100352
63 BOLT M10X 55 26203-100552
64 BOLT, EYE M16 26610-160002
65 COVER 177010-02430
66 BOLT, M10X 14 PLATED 26106-100142
67 DIPSTICK 177048-02650
68 PIPE ASSY, DIPSTICK 177055-02701
72 BOLT 177557-02730
73 WASHER, SEAL 16 22190-160003
74 CLAMP, A10X12 23297-100121
75 BOLT, M10X 16 PLATED 26106-100162
