YANMAR 177055-02050 Flange, Mounting

Write a Review
$2,930.02
SKU:
177055-02050
Schematic Object Key:
44

YANMAR 177055-02050 Flange, Mounting

$2,930.02

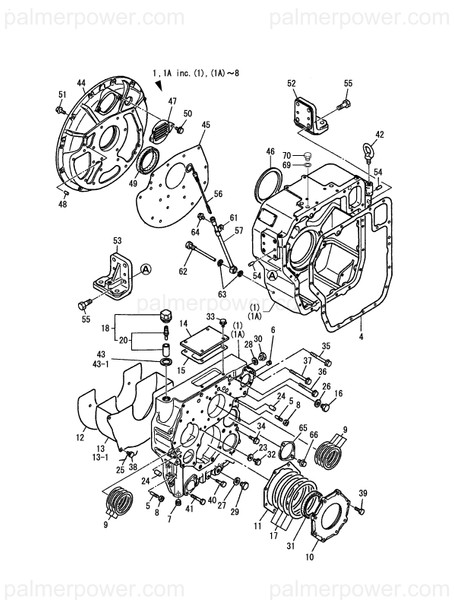

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177055-02050 Flange, Mounting

Schematic Object Key : 44

Product Description : FLANGE, MOUNTING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BODY ASSY, CASE 177055-02000
1-1 BODY ASSY, CASE 177055-02001
1A BODY ASSY, CASE 177055-02270
1A-1 BODY ASSY, CASE 177055-02271
4 GASKET, COVER 177055-02040
4-1 GASKET, COVER 177055-02041
5 PIN, TAPER 10X 28 22333-100280
6 PLUG, R03 23871-030000
7 PLUG, R04 23873-040000
7-1 PLUG, R04 23871-040000
8 NUT, M10 26716-100002
9 SHIM SET 177411-02550
10 COVER 177055-02750
11 GASKET, COVER 177055-02760
11-1 GASKET, COVER 177055-02761
12 PLATE, BAFFLE 177055-02800
13 PLATE, BAFFLE 177055-02810
13-1 PLATE, BAFFLE 177555-02810
14 COVER 177055-02850
15 GASKET, COVER 177055-02860
15-1 GASKET, COVER 177055-02861
16 PLUG, MAGNET M16X1.5 177035-02920
17 SHIM SET 139683-82550
17-1 SHIM SET 139683-82551
18 PLUG ASSY, M30X1.5 123672-82850
20 THROWER ASSY, OIL 123672-82860
23 WASHER 8 22151-080000
24 PIN, PARALLEL M12X25 22312-120250
25 WIRE, 1.0 22451-100000
26 GASKET, 16X1.0 23414-160000
27 GASKET, 16X1.0 23414-160000
28 GASKET, 20X1.0 23414-200000
29 PLUG, 16 23883-160002
29-1 PLUG 16,HEX. 23884-160002
30 PLUG, 20 23887-200002
30-1 PLUG, 20 23490-200002
31 SEAL, OIL TC9011513 24423-901513
32 BOLT, M8X 14 PLATED 26106-080142
32-1 BOLT, M8X 12 PLATED 26106-080122
32-2 BOLT, M8X 10 PLATED 26106-080102
33 BOLT, M10X 20 PLATED 26106-100202
34 BOLT, M10X 35 PLATED 26106-100352
35 BOLT, M10X 90 PLATED 26106-100902
36 BOLT, M10X 95 PLATED 26106-100952
37 BOLT, M10X105 PLATED 26106-101052
37-1 BOLT, M10X105 PLATED 26116-101052
38 BOLT M 8X 12 PLATED 26116-080126
38-1 BOLT, SPRING M8X 12 26013-080122
39 BOLT, M12X 30 PLATED 26116-120302
40 BOLT, M10X 35 PLATED 26203-100352
41 BOLT M10X 55 26203-100552
42 BOLT, EYE M16 26610-160002
43 WASHER, SEAL 30 43400-500610
43-1 WASHER, SEAL 30 22190-300002
44 FLANGE, MOUNTING 177055-02050
45 GASKET, MOUNTING 177055-02060
45-1 GASKET, MOUNTING 177055-02061
46 SPACER 177055-02070
47 BREATHER 123672-82071
48 PIN, PARALLEL M10X20 22312-100200
49 SEAL, OIL TC8511013 24423-851013
50 BOLT, M10X 16 PLATED 26106-100162
51 BOLT, M10X 30 PLATED 26106-100302
52 FOOT, MOUNTING 177015-02830
53 FOOT, MOUNTING 177019-02830
54 PIN, PARALLEL M12X32 22312-120320
55 BOLT, M16X 40 PLATED 26156-160402
56 DIPSTICK 177048-02650
57 PIPE ASSY, DIPSTICK 177055-02700
57-1 PIPE ASSY, DIPSTICK 177055-02701
61 CLAMP, A10X12 23297-100121
62 BOLT 177055-02710
62-1 BOLT 177557-02730
63 GASKET, 16X1.0 23414-160000
63-1 WASHER, SEAL 16 22190-160003
64 BOLT, M10X 16 PLATED 26106-100162
65 COVER 177010-02430
66 BOLT, M10X 14 PLATED 26106-100142
67 GASKET, 18X1.0 23414-180000
67-1 GASKET, 18X1.0 23414-180000
68 PLUG, 18 23887-180002
68-1 PLUG, 18 23887-180002
69 GASKET, 17X1.0 23414-170000
70 PLUG G3/8,HEX. 23897-030002
