YANMAR 177057-04100 Lever

Write a Review
$227.57
SKU:
177057-04100
Schematic Object Key:
20

YANMAR 177057-04100 Lever

$227.57

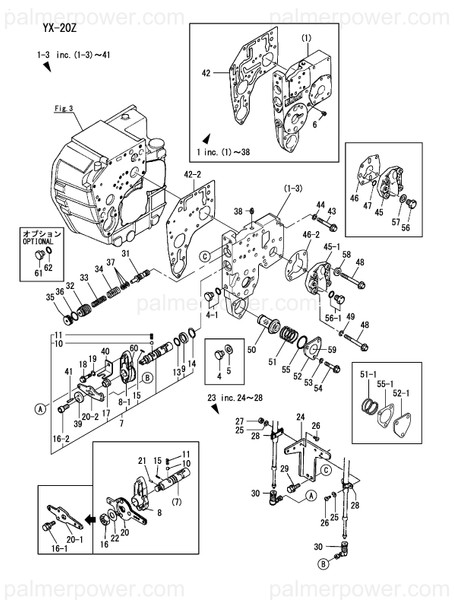

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177057-04100 Lever

Schematic Object Key : 20

Product Description : LEVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 COVER ASSY 777052-02560
1-1 COVER ASSY 777052-02561
1-2 COVER ASSY 777052-02562
1-3 COVER ASSY 777052-02563
4 PLUG, 12 23887-120002
4-1 PLUG, 12 23490-120002
5 GASKET, 12X1.0 23414-120016
6 PLUG, R01 23871-010000
7 VALVE ASSY, SWITCH 777040-02530
8 COVER, VALVE 177040-04101
8-1 COVER 177058-04090
9 SPACER 177040-04110
10 BALL, STEEL 5/16 24190-100001
11 SPRING 177040-04400
13 O-RING, 1AP18.0 24311-000180
14 RING, 22 22242-000220
15 PIN, SPRING 4.0X20 22351-040020
16 NUT, LOCK M16 26776-160002
16-1 BOLT, M10X 16 PLATED 26106-100162
16-2 BOLT, M10X 20 26450-100202
17 RING 177058-04160
18 BOLT, M8X 30 PLATED 26106-080302
19 WASHER, 8 22287-080000
20 LEVER 177057-04100
20-1 LEVER 177058-04100
20-2 LEVER 177058-04101
21 PARALLEL PIN 4X10 22312-040100
22 WASHER, 16 22137-160000
23 BRACKET ASSY 177057-04740
24 BRACKET, WIRE 177057-04750
25 SPRING WASHER 22212-050000
26 SCREW 26551-050122
27 NUT, M5 26716-050002
28 CLAMP 41710-000410
29 BOLT, M8X 20 PLATED 26106-080202
30 JOINT, BALL 41710-001300
31 VALVE, CONTROL 177052-04200
31-1 VALVE, CONTROL 177052-04201
31-2 VALVE 177052-04202
31-3 VALVE 177061-04201
32 VALVE 177052-04220
32-1 VALVE 177052-04221
32-2 VALVE 177058-04220
32-3 VALVE 177061-04221
33 SPRING, VALVE 177040-04240
33-1 SPRING, VALVE 177052-04240
33-2 SPRING, VALVE 177058-04240
33-3 SPRING, VALVE 177561-04250
34 SPRING, VALVE 177040-04260
34-1 SPRING, VALVE 177052-04260
34-2 SPRING, VALVE 177052-04261
35 COVER 177040-04230
36 O-RING, 1AP22.0 24311-000220
37 SHIM SET 177052-04300
37-1 SHIM SET 177561-04220
38 PLUG, R1/8 23171-010000
39 SPACER 177561-04120
40 SUPPORT, SWITCH 177561-04140
41 PIN, SPRING 5.0X10 22351-050010
42 GASKET 177052-02070
42-1 GASKET 177052-02071
42-2 GASKET, PLATE 177558-02070
43 BOLT, M8X 50 PLATED 26106-080502
44 WASHER, 8 22287-080000
45 COVER 177052-02100
45-1 COVER 177558-02100
46 GASKET 177052-02110
46-1 GASKET 177052-02111
46-2 PACKING 177558-02110
47 O-RING, 1AP9.0 24311-000090
48 BOLT, M8X 75 PLATED 26106-080752
49 WASHER, 8 22287-080000
50 STRAINER 177040-02800
51 SPRING, STRAINER 1E6440-55230
51-1 COVER, STRAINER 177524-04041
52 COVER, STRAINER 177040-02320
52-1 SPRING, STRAINER 177524-04090
53 WASHER, 8 22287-080000
54 BOLT, M8X 40 PLATED 26106-080402
55 O-RING, 1AG35.0 24321-000350
55-1 GASKET, COVER 177524-04082
56 PLUG, 12 23887-120002
56-1 PLUG, 12 23490-120002
57 GASKET, 12X1.0 23414-120016
58 GASKET, 8X1.0 23414-080000
59 LABEL, STRAINER 177050-02821
60 LABEL 177055-02960
60-1 LABEL 177055-02961
61 COVER 177061-04230
62 O-RING, 1AP22.0 24311-000220
