YANMAR 177058-04480 Spring, Valve

Write a Review
$16.13
SKU:
177058-04480
Schematic Object Key:
4

YANMAR 177058-04480 Spring, Valve

$16.13

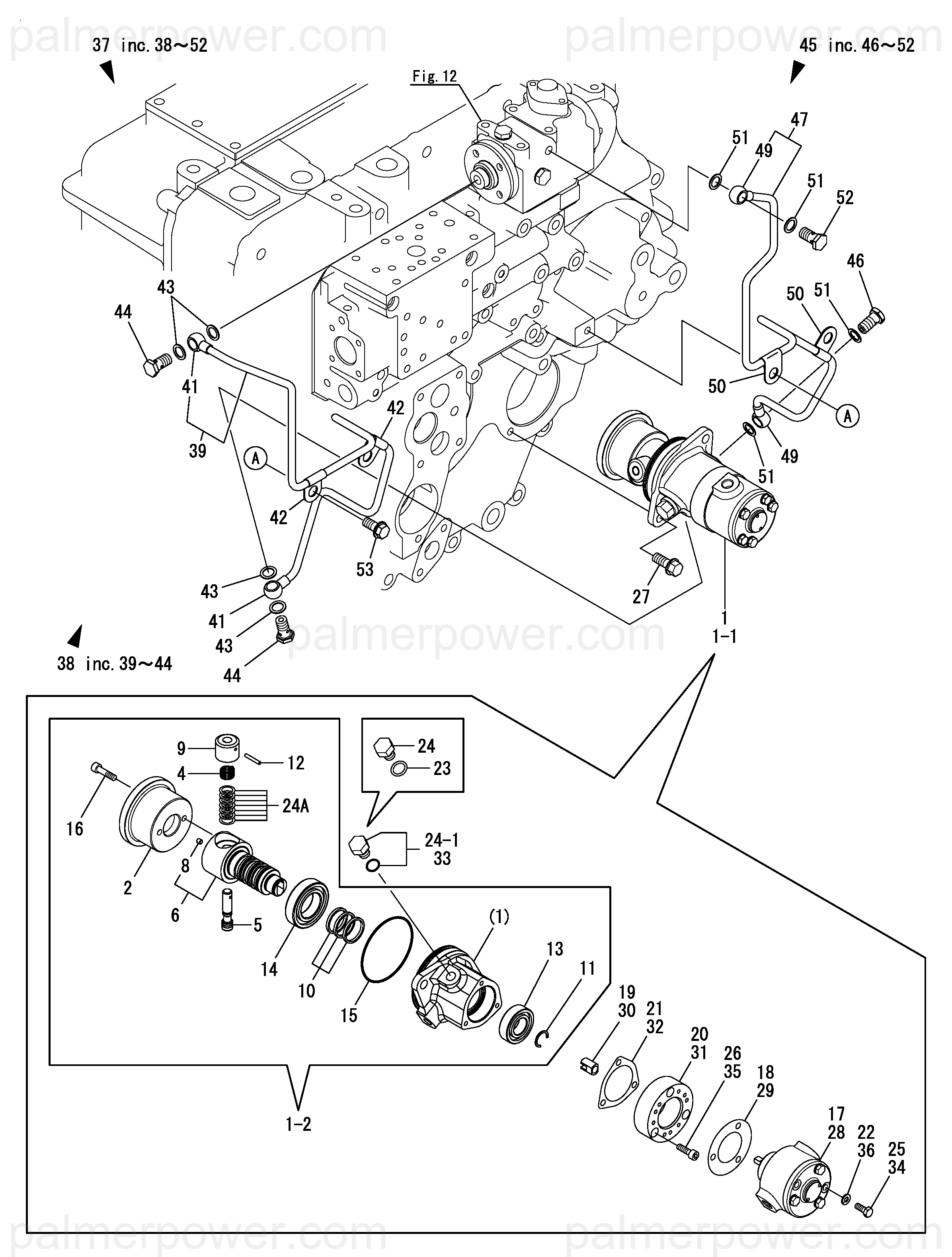

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177058-04480 Spring, Valve

Schematic Object Key : 4

Product Description : SPRING, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-2 VALVE ASSY, GOVERNOR 177512-04512
2 GEAR, Z=30 177406-03901
4 SPRING, VALVE 177058-04480
5 VALVE, GOVERNOR 177058-04531
6 SHAFT ASSY, GOVERNOR 177432-04530
8 SCREW, M5X 5 26911-050052
9 WEIGHT, GOVERNOR 177058-04541
10 RING, SEAL 145610-83400
11 RING, 20 22242-000200
12 PIN, SPRING 3.0X22 22351-030022
13 BEARING, BALL 6004 24101-060044
14 BEARING, BALL 6006 24101-060064
15 O-RING, 1AG75.0 24321-000750
16 BOLT, M6X 25 26450-060252
24A SHIM SET 177068-04600
27 BOLT, M10X 25 PLATED 26106-100252
28 PUMP ASSY, HYDRAULIC 196150-04011
29 GASKET, PUMP 196150-04031
30 JOINT 177432-04330
31 SPACER 177561-04900
32 GASKET, COVER 177010-05671
33 PLUG, 12 23490-120002
34-1 BOLT, M6X 55 PLATED 26116-060552
35 BOLT, M6X 20 26450-060202
36 WASHER, 6 22117-060000
37 PIPE ASSY 177512-07950
38 PIPE ASSY 177512-07960
39 PIPE 177512-07970
41 JOINT, PIPE 8-12 23341-081201
42 CLAMP, A8X12 23297-080121
43 GASKET, 12X1.0 23414-120000
44 BOLT, JOINT 6 23857-060000
45 PIPE ASSY 177512-07980
46 BOLT 177068-04360
47 PIPE 177512-07990
49 JOINT, PIPE 8-12 23341-081201
50 CLAMP, A8X12 23297-080121
51 GASKET, 12X1.0 23414-120000
52 BOLT, JOINT 6 23857-060000
53 BOLT, M10X 20 PLATED 26106-100202
