YANMAR 177058-04501 Valve Assy, Governor

Write a Review
$2,448.37
SKU:
177058-04501
Schematic Object Key:
42-1

YANMAR 177058-04501 Valve Assy, Governor

$2,448.37

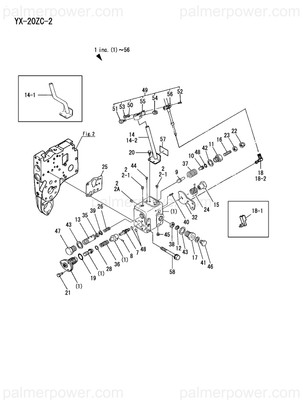

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177058-04501 Valve Assy, Governor

Schematic Object Key : 42-1

Product Description : VALVE ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY, TROLLING 177416-04010
1A VALVE ASSY, TROLLING 177416-04020
1B VALVE ASSY, TROLLING 177416-04030
1C VALVE ASSY, TROLLING 177416-04040
1D VALVE ASSY, TROLLING 177416-04050
2 BRACKET, WIRE 177057-04481
3 NUT 177068-04481
4 BRACKET ASSY, CABLE 177061-04490
5 SPRING WASHER 22212-050000
6 BOLT, M8X 20 PLATED 26116-080202
7-1 SCREW, M5X16 26557-050162
8 NUT, M5 26716-050002
9 NUT, M8 26716-080002
10 BRACKET 41701-001720
11 CLAMP 41710-000410
12 SPRING, RETURN 177068-04492
13 LEVER, TROLLING 177057-04602
15 PACKING 177416-04810
16 SLEEVE, VALVE 177416-04821
17 COVER 177416-04831
18 VALVE, TROLLING 177416-04841
18-1 VALVE,A BX TROLLING 177416-04842
19 VALVE, TROLLING 177416-04850
20 SHAFT, LEVER 177416-04860
21 COVER 177416-04870
22 SPRING 177416-04880
23 RETAINER, SPRING 177416-04940
24 CASE, STRAINER 177416-04950
25 SHIM SET, D12/6 177416-04990
25-1 SHIM ASSY, D12 177514-04780
25D SHIM, D12 T=1.0 177514-04770
26 STRAINER 194630-43220
27 PLUG, 1/16 123385-82200
28 RING, S-17 22292-000170
29 PIN, PARALLEL M4X16 22312-040160
30 PIN, SPRING 4.0X20 22351-040020
32-1 PLUG, 12 23490-120002
33 O-RING, 1AP9.0 24311-000090
34 O-RING, 1AP11.0 24311-000110
35 O-RING, 1AG30.0 24321-000300
36 BOLT, M6X 12 PLATED 26116-060122
36-1 BOLT, M6X 12 PLATED 26106-060122
37 BOLT, M6X 25 PLATED 26116-060252
37-1 BOLT, M6X 25 PLATED 26106-060252
38 BOLT, M8X 25 PLATED 26116-080252
38-1 BOLT, M8X 25 PLATED 26106-080252
39 BOLT, M8X 20 26450-080202
40 JOINT, BALL 41710-001300
41 SPRING 177416-04890
41A SPRING 177416-04900
41B SPRING 177416-04910
41C SPRING 177416-04920
42-1 VALVE ASSY, GOVERNOR 177058-04501
43 COVER 177061-02300
45 GEAR, GOVERNOR Z=30 177068-04392
46 SHAFT ASSY 177058-04510
48 SCREW, M5X 5 26911-050052
49 VALVE, GOVERNOR 177058-04531
50 WEIGHT, GOVERNOR 177058-04541
51 SPRING, VALVE 177058-04480
52-1 GASKET, COVER 177010-05671
53 RING, SEAL 145610-83400
54 RING, 20 22242-000200
55 PIN, SPRING 3.0X22 22351-030022
58 BEARING, BALL 6004 24101-060044
59 BEARING, BALL 6006 24101-060064
60 O-RING, 1AG75.0 24321-000750
61-1 BOLT, M6X 14 PLATED 26106-060142
62 BOLT, M6X 20 26450-060202
73-1 BOLT, M10X 20 PLATED 26106-100202
74-1 BOLT, M8X 90 PLATED 26106-080902
75 GEAR, GOVERNOR 177502-03800
77-1 PIPE ASSY, GOVERNOR 177433-07900
80-1 PIPE ASSY, GOVERNOR 177433-07920
83 CLAMP, A8X 8 23297-080081
84 GASKET, 12X1.0 23414-120000
85-1 BOLT, JOINT 6 23857-060000
85A BOLT 177068-04360
86 BOLT, M8X 12 PLATED 26106-080122
87 COVER 177416-04780
88-1 PACKING 177416-04811
90-1 PLUG, 12 23490-120002
91-1 BOLT, M8X 30 PLATED 26106-080302
93 BRACKET, PIPE 177433-04900
94 BOLT, M8X 16 PLATED 26106-080162
95 NUT, M8 26716-080002
96 BOLT, M8X 12 PLATED 26106-080122
97 PLUG, 12 23490-120002
