YANMAR 177061-02360 Gasket, Cover

Write a Review
$5.36
SKU:
177061-02360
Schematic Object Key:
9

YANMAR 177061-02360 Gasket, Cover

$5.36

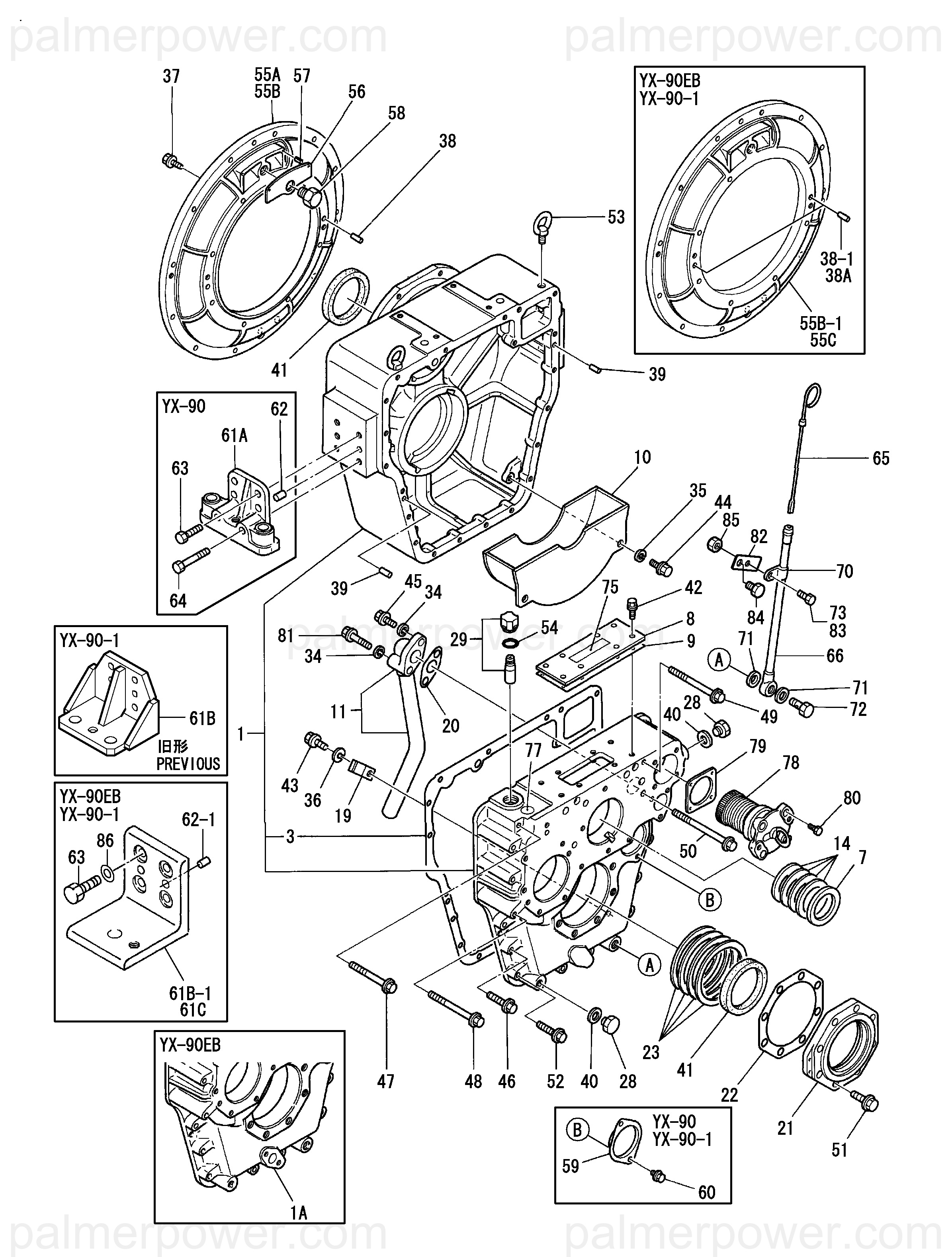

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177061-02360 Gasket, Cover

Schematic Object Key : 9

Product Description : GASKET, COVER 177061-02360

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A CASE 177067-02150
7 BUSH 177067-02250
8 COVER 177061-02350
9 GASKET, COVER 177061-02360
10 PLATE, BAFFLE 177067-02500
11 PIPE ASSY, OIL 177067-02550
14 SHIM SET 177411-02550
19 RETAINER 177064-02580
20 GASKET, BEND 177064-02590
21 COVER 177067-02750
22 GASKET, COVER 177067-02760
23 SHIM SET 177032-02860
28 PLUG, MAGNET M16X1.5 177035-02920
29 PLUG ASSY, M30X1.5 123672-82850
34 SPRING WASHER 10 22212-100000
35 SPRING WASHER 10 22212-100000
36 SPRING WASHER 10 22212-100000
37 BOLT, M10X 25 PLATED 26106-100252
38A PIN, D14/10 177561-02950
39 PIN, PARALLEL M10X32 22312-100320
40 GASKET, 16X1.0 23414-160000
41 SEAL, OIL TC8010513 24423-800513
42 BOLT, M8X 16 PLATED 26106-080162
43 BOLT, M10X 16 PLATED 26106-100162
44 BOLT, M10X 20 PLATED 26106-100202
45 BOLT, M10X 30 PLATED 26106-100302
46 BOLT, M10X 50 PLATED 26106-100502
47 BOLT, M10X100 PLATED 26106-101002
48 BOLT, M10X115 PLATED 26106-101152
49 BOLT, M10X125 PLATED 26116-101252
50 BOLT, M10X145 PLATED 26116-101452
51 BOLT, M12X 35 PLATED 26116-120352
52 BOLT, M10X 50 PLATED 26203-100502
53 BOLT, EYE M16 26610-160002
54-1 WASHER, SEAL 30 22190-300002
55C FLANGE, MOUNTING 177068-02101
56 COVER 177059-02381
58 PLUG, 18 23887-180002
62-1 PIN, PARALLEL M12X25 22312-120250
63 BOLT, M12X 30 PLATED 26116-120302
65 DIPSTICK 177048-02650
66-1 PIPE ASSY, DIPSTICK 177067-02700
70 CLAMP, A10X12 23297-100121
71 GASKET, 16X1.0 23414-160000
72 BOLT, JOINT 10 23854-100000
75-1 LABEL, YANMAR 104507-07190
77-1 LABEL 177050-02811
78 STRAINER 123672-84620
79-1 GASKET, COVER 123672-84631
80 BOLT, M8X 25 PLATED 26106-080252
81 BOLT, M10X 50 PLATED 26106-100502
82 BRACKET 177067-02340
83 BOLT, M10X 20 PLATED 26106-100202
84 BOLT, M12X 20 PLATED 26116-120202
85 NUT, M10 26712-100002

YANMAR 177061-02360 Gasket, Cover
