YANMAR 177062-04100 Cover, Valve

Write a Review
$51.42
SKU:
177062-04100
Schematic Object Key:
15

YANMAR 177062-04100 Cover, Valve

$51.42

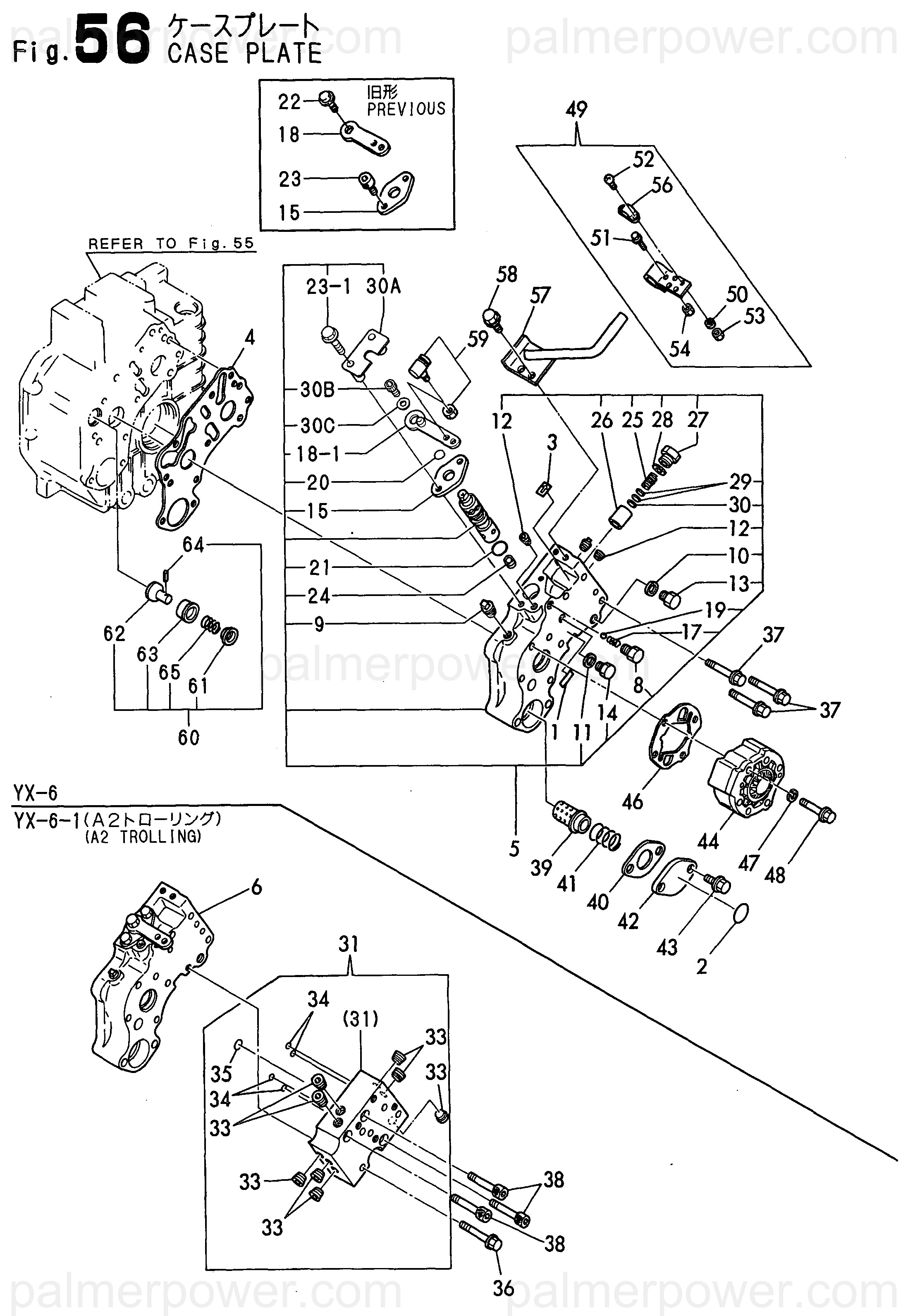

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177062-04100 Cover, Valve

Schematic Object Key : 15

Product Description : COVER, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 LABEL 177061-02810
1-1 LABEL,EMERGENCY BOLT 177061-02811
2 LABEL, STRAINER 176063-02930
2-1 LABEL, STRAINER 177050-02821
3 LABEL 177055-02950
3-1 LABEL 177055-02951
4 GASKET, PLATE 177062-02070
6 PLATE ASSY, CASE 777062-02510
6-1 PLATE ASSY, CASE 777062-02511
8 PLUG, 12 177062-02860
9 PLUG, R1/8 23171-010000
10 GASKET, 12X1.0 23414-120016
12 PLUG, R01 23871-010000
13 PLUG, 12 23887-120002
15 COVER, VALVE 177062-04100
17 SPRING 177040-04400
18 LEVER 177062-04400
18-1 LEVER ASSY 177062-04390
19 BALL, STEEL 5/16 24190-100001
20 O-RING, 1AP16.0 24311-000160
21 O-RING, 1AP18.0 24311-000180
22 BOLT, M8X 16 PLATED 26106-080162
23 BOLT, M8X 16 26450-080162
23-1 BOLT, M8X 50 PLATED 26106-080502
24 SCREW, M8X 8 26979-080082
25 SPRING, RELIEF 177062-04260
26 VALVE, CONTROL 125310-34031
27 RETAINER, VALVE 123672-84530
28 GASKET, 18X1.0 23414-180000
29 SHIM, T=1.0 45150-030760
30 SHIM, T=0.5 45150-030770
30A SUPPORT, SWITCH 177062-04440
30B BOLT, M8X 16 26450-080162
30C WASHER, 8 22137-080000
31 PLATE ASSY 777062-04510
33 PLUG, R01 23871-010000
34 O-RING, 1AP9.0 24311-000090
35 O-RING, 1AP12.0 24311-000120
36 BOLT, M8X 50 PLATED 26106-080502
38 BOLT, M8X 90 26450-080902
39 STRAINER 177040-02800
40 PACKING, STRAINER 1E6440-55220
40-1 PACKING, STRAINER 1E6440-55221
40-2 PACKING, STRAINER 1E6440-55222
41 SPRING, STRAINER 1E6440-55230
42 COVER,STRAINER 1E6440-55240
43 BOLT, M8X 65 PLATED 26106-080652
44 PUMP ASSY, HYDRAULIC 777040-04700
46 GASKET 177040-04030
47 WASHER, 8 22287-080000
48 BOLT, M8X100 PLATED 26106-081002
49 BRACKET ASSY, CABLE 177061-04490
50 SPRING WASHER 22212-050000
51 BOLT, M8X 20 PLATED 26116-080202
52 SCREW 26551-050122
53 NUT, M5 26716-050002
54 NUT, M8 26716-080002
56 CLAMP 41710-000410
57 BRACKET, WIRE 177062-04750
58 BOLT, M8X 16 PLATED 26106-080162
59 JOINT, BALL 41710-001300
60 VALVE ASSY, CONTROL 177040-04340
61 RETAINER, SPRING 177040-04361
62 VALVE, 2ND RELIEF 1E6190-55660
63 SEAT, 2ND RELIEF 1E6190-55710
64 PIN, SPRING 2.0X 8 22351-020008
65 SPRING 177040-04351
