YANMAR 177067-02070 Gasket, Plate

Write a Review
$43.68
SKU:
177067-02070
Schematic Object Key:
100

YANMAR 177067-02070 Gasket, Plate

$43.68

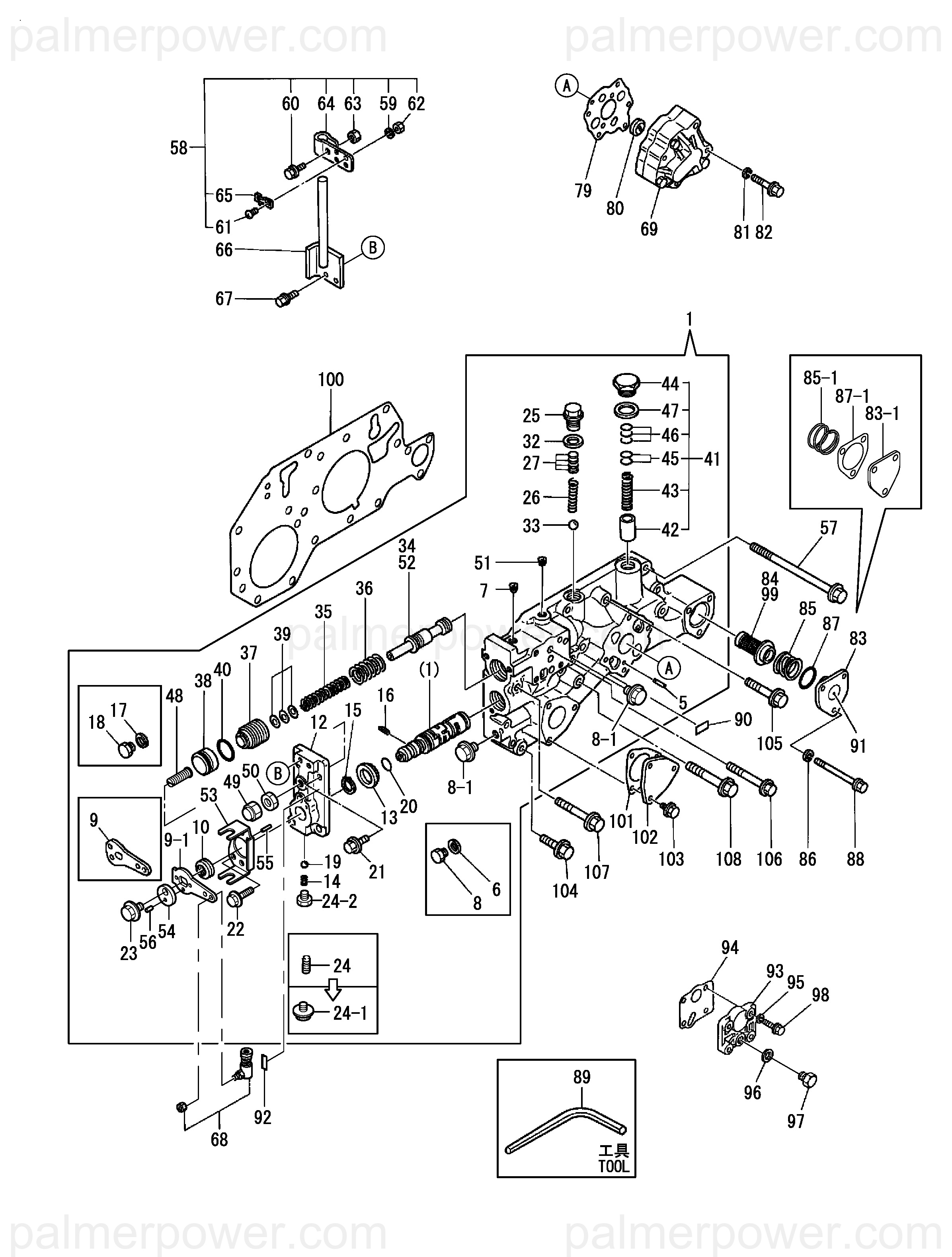

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177067-02070 Gasket, Plate

Schematic Object Key : 100

Product Description : GASKET, PLATE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1-1 COVER ASSY 777067-02561
5 PIN, SPRING 4.0X20 22351-040020
7-1 PLUG, R01 23871-010000
8-1 PLUG, 12 23490-120002
9-1 LEVER 177061-04111
10 RING 177058-04160
12 COVER, VALVE 177067-04210
13 SPACER 177067-04220
14 SPRING 177040-04400
15 RING, S-22 22292-000220
16 PIN, SPRING 4.0X20 22351-040020
19 BALL, STEEL 5/16 24190-100001
20 O-RING, 1AP24.0 24311-000240
21 BOLT, M8X 20 PLATED 26106-080202
22 BOLT, M8X 30 PLATED 26106-080302
23 BOLT, M10X 16 PLATED 26106-100162
24-2 PLUG 148616-54940
25 COVER 177061-04850
26 SPRING, VALVE 123672-84200
27 SHIM SET 123672-84220
32 GASKET, 20X1.0 23414-200000
33 BALL, STEEL 1/2 24190-160001
35 SPRING 177055-04110
36 SPRING 177055-04120
37 VALVE 177055-04150
38 COVER 177055-04160
39 SHIM 177055-04270
40 O-RING, 1AP26.0 24311-000260
41 VALVE ASSY, CONTROL 177017-04460
42-1 VALVE, CONTROL 177501-04520
43 SPRING 177017-04540
44 RETAINER, SPRING 177017-04560
45 SHIM, T=0.3 177017-04580
46 SHIM, T=1.0 177017-04590
47 GASKET, 22X1.0 23414-220000
48 SCREW 177557-04170
49 NUT, CAP M12 26687-120002
50 NUT, LOCK M12 26776-120002
51 PLUG, R1/8 23171-010000
52 RELIEF VALVE,HO 177551-04100
53 SUPPORT, SWITCH 177058-04120
54 SPACER 177561-04120
55 PIN, SPRING 4.0X16 22351-040016
56 PIN, SPRING 5.0X10 22351-050010
57 BOLT, M10X165 PLATED 26116-101652
58 BRACKET ASSY, CABLE 177061-04490
59 SPRING WASHER 22212-050000
60 BOLT, M8X 20 PLATED 26116-080202
61 SCREW 26551-050122
62 NUT, M5 26716-050002
63 NUT, M8 26716-080002
64 BRACKET 41701-001720
65 CLAMP 41710-000410
66 BRACKET, WIRE 177040-04750
67 BOLT, M8X 20 PLATED 26106-080202
68 JOINT, BALL 41710-001300
69 PUMP ASSY, HYDRAULIC 177067-04000
79 GASKET, PUMP 177059-04030
80 JOINT 177059-04081
81 WASHER, 8 22287-080000
82 BOLT, M8X 65 PLATED 26106-080652
83 COVER, STRAINER 177040-02320
83-1 COVER, STRAINER 177524-04041
84 STRAINER 177067-04080
85 SPRING, STRAINER 1E6440-55230
85-1 SPRING, STRAINER 177524-04090
86 WASHER, 8 22287-080000
87 O-RING, 1AG35.0 24321-000350
87-1 GASKET, COVER 177524-04082
88 BOLT, M8X 80 PLATED 26106-080802
89 WRENCH 177055-09050
90-1 LABEL,EMERGENCY BOLT 177061-02811
91-1 LABEL, STRAINER 177050-02821
92-1 LABEL 177055-02951
99 STRAINER 177067-04110
100 GASKET, PLATE 177067-02070
101 GASKET 124223-42021
101-1 GASKET 177561-02400
102 COVER 145410-82800
103 BOLT, M8X 16 PLATED 26106-080162
104 BOLT, M10X 35 PLATED 26106-100352
105 BOLT, M10X 50 PLATED 26106-100502
106-1 BOLT, M8X 75 PLATED 26106-080752
107-1 BOLT, M10X 65 PLATED 26106-100652
108-1 BOLT, M10X 75 PLATED 26106-100752
