YANMAR 177080-02730 Bracket

Write a Review
$51.78
SKU:
177080-02730
Schematic Object Key:
26

YANMAR 177080-02730 Bracket

$51.78

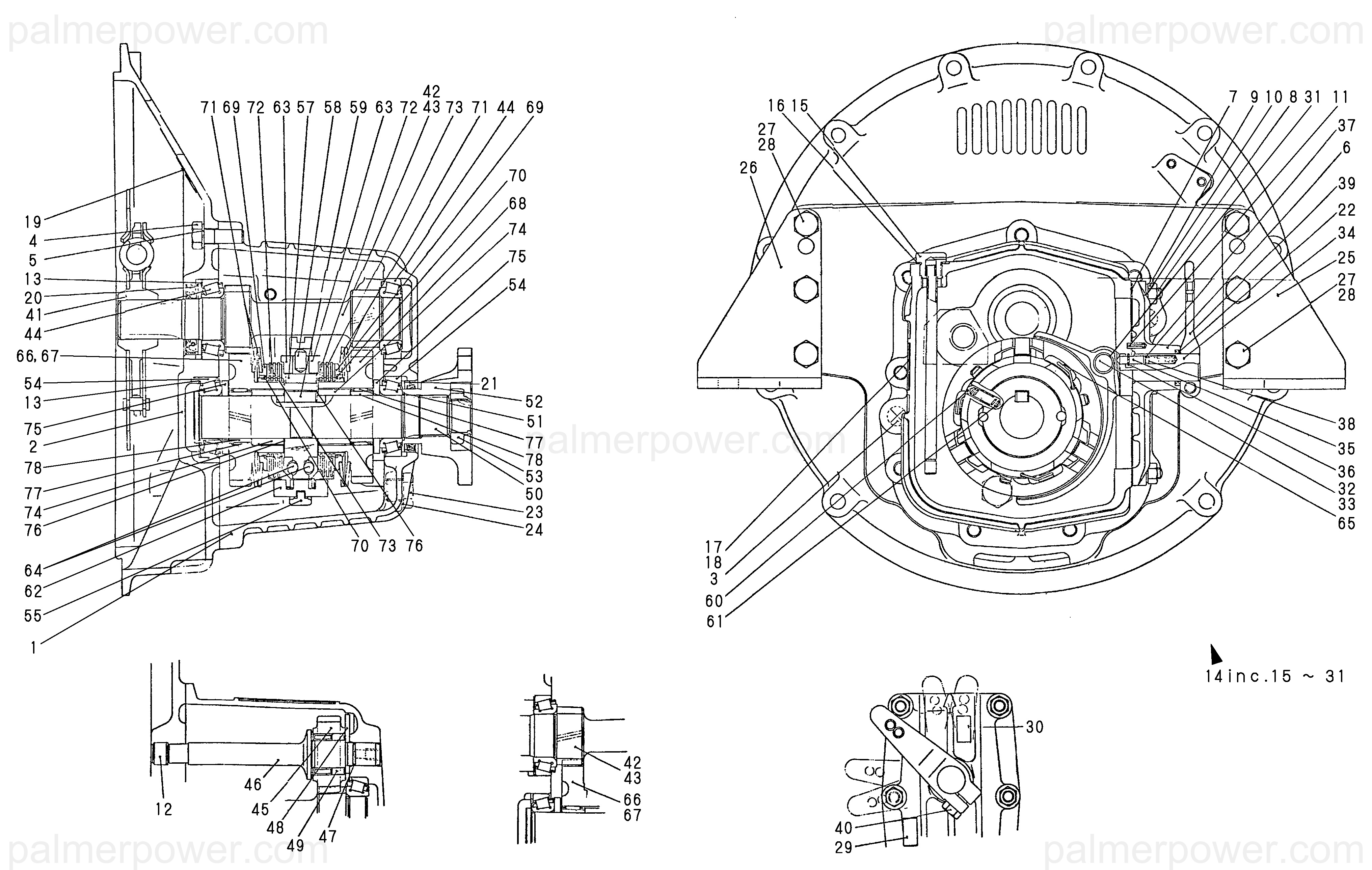

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177080-02730 Bracket

Schematic Object Key : 26

Product Description : BRACKET 177080-02730

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING, CLUTCH 177099-02110
2 FLANGE 177099-02120
3 PIN, PARALLEL 177099-02130
4 BOLT, M10X 30 PLATED 26116-100302
5 WASHER, 10 22287-100000
6 COVER 177099-02081
7 GASKET 177099-02091
8 STUD, M8X 22 26216-080222
9 NUT, M8 26716-080002
10 WASHER, 8 22287-080000
11 SPRING PIN 4X12 22352-040012
12 PLUG 177099-06050
13 SHIM SET 177099-02250
14 FORK ASSY 177099-06010
15 DIPSTICK 177099-02450
16 GASKET, 16X1.0 23414-160021
17 LABEL 177099-02421
18 RIVET 102210-07990
19 LABEL 177095-02400
20 SEAL TC30 52 8, OIL 177099-02950
21 SEAL TC40 52 8, OIL 177099-02960
22 SEAL, OIL 177095-02980
23 PLUG 16,HEX. 23884-160002
24 GASKET, 16X1.0 23414-160000
25 BRACKET 177080-02720
26 BRACKET 177080-02730
27 BOLT, M10X 30 PLATED 26116-100302
28 WASHER, 10 22287-100000
29 LABEL 177090-02620
30 LABEL 177090-02630
31 BEARING 177095-06070
32 SHAFT, SHIFT 177099-06041
33 PLUG 177099-06050
34 CAM, SHIFT 177095-06030
35 PIN 177095-06050
36 CIRCLIP 177095-06140
37 SPRING 177095-03200
38 SPRING 177095-06060
39 LEVER 177095-06040
40 BOLT, M8X 25 PLATED 26116-080252
41 DISK, DAMPER 177099-03500
42 SHAFT, INPUT I=2.14 177099-03011
43 SHAFT, INPUT I=2.83 177099-03411
44 ROLLER BEARING 177099-03920
45 GEAR, IDLE Z=25 177099-03301
46 SHAFT, GEAR 177099-03311
46-1 SHAFT, GEAR 177099-03980
47 O-RING, 1AS15.0 24341-000150
48 WASHER 177099-03321
49 NEEDLE BEARING 177099-03900
49-1 NEEDLE BEARING 177099-03901
50 SHAFT, OUTPUT 177099-03021
51 O-RING, 1AG30.0 24321-000300
52 COUPLING 177099-03550
53 NUT, LOCK 177099-03540
54 ROLLER BEARING 177099-03920
55 PLATE ASSY, DRIVE 177099-03040
57 PIN, PARALLEL 177095-03030
58 PIN, PARALLEL 177095-03040
59 KEY 177090-03230
60 PIN 177095-03190
61 SPRING 177095-03200
62 RING, SHIFT 177099-03070
63 PLATE, PRESSURE 177099-03080
64 BALL, STEEL 177090-03180
65 SPRING 177095-03210
66 GEAR, Z=47 I=2.14 177099-03101
67 GEAR, Z=51 I=2.83 177099-03431
68 GEAR, Z=45 177099-03111
69 RETAINER 177090-03110
70 CIRCLIP 177095-03280
71 SPRING 177090-03121
72 DISK, D78 T1.7 177090-03080
73 PLATE, STEEL 177090-03090
74 SPACER 177099-03161
75 COLLAR, THRUST 177090-03270
76 SHIM SET 177095-03800
77 ROLLER BEARING 177095-03900
78 RACE, INNER 177099-03470
