YANMAR 177090-03750 Shaft

Write a Review
$434.12
SKU:
177090-03750
Schematic Object Key:
48

YANMAR 177090-03750 Shaft

$434.12

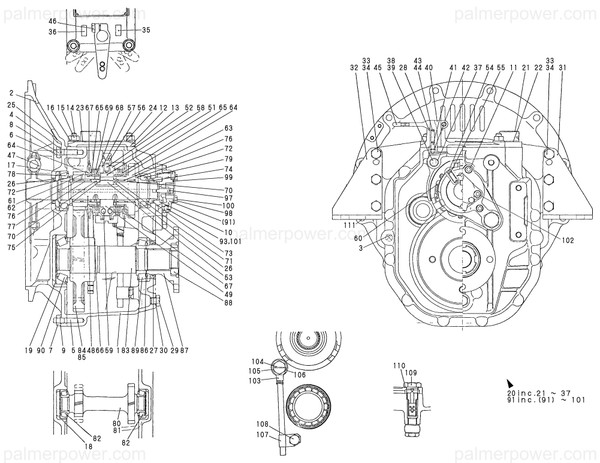

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177090-03750 Shaft

Schematic Object Key : 48

Product Description : SHAFT, INPUT 177090-03750

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING, CLUTCH 177090-02700
2 FLANGE 177091-02710
3 PIN, PARALLEL 177099-02130
4 WASHER, 10 22287-100000
5 STUD, M10X 25 26223-100252
6 STUD, M10X 25 26226-100252
7 NUT, M10 26713-100002
8 NUT, M10 26716-100002
9 WASHER, 10 22133-100000
10 SPACER 177090-02800
11 BOLT, M8X 22 26450-080222
12 COVER 177090-02070
13 PACKING, COVER 177090-02120
14 STUD, M10X 25 26226-100252
15 NUT, M10 26716-100002
16 WASHER, 10 22287-100000
17 SHIM SET 177095-02250
18 SHIM 177090-02250
19 SHIM 177095-02310
20 FORK ASSY, SHIFT 177090-06010
21 DIPSTICK 177090-02451
22 GASKET, 27X1.0 23418-270035
23 LABEL 177090-02421
24 RIVET 102210-07990
25 LABEL 177095-02400
26 SEAL SB35 47 7, OIL 177095-02960
27 SEAL TC54 70 9, OIL 177090-02970
28 SEAL, OIL 177095-02980
29 PLUG M12,HEX. 23884-120002
30 GASKET, 12X1.0 23414-120000
31 BRACKET 177091-02720
32 BRACKET 177091-02730
33 BOLT M10X 28 PLATED 26116-100282
34 WASHER, 10 22287-100000
35 LABEL 177090-02620
36 LABEL 177090-02630
37 BEARING 177095-06070
38 SHAFT, SHIFT 177090-06300
39 PLUG 177099-06050
40 CAM, SHIFT 177095-06030
41 PIN 177095-06050
42 CIRCLIP 177095-06140
43 SPRING 177095-03200
44 SPRING 177095-06060
45 LEVER 177095-06040
46 BOLT, M8X 25 PLATED 26116-080252
47 DISK, DAMPER D190 177090-03500
48 SHAFT, INPUT 177090-03750
49 PLATE ASSY, DRIVE 177090-03020
51 PIN, PARALLEL 177095-03030
52 PIN, PARALLEL 177095-03040
53 KEY 177090-03230
54 PIN 177095-03190
55 SPRING 177095-03200
56 RING, SHIFT 177090-03050
57 PLATE, PRESSURE 177090-03060
58 PLATE, PRESSURE 177090-03070
59 BALL, STEEL 177090-03180
60 SPRING 177090-03210
61 PINION, Z=24 I=3 177090-03300
62 PINION, Z=32 177090-03600
63 GEAR, Z=36 177090-03310
64 RETAINER 177090-03100
65 RETAINER 177090-03110
66 CIRCLIP 177095-03280
67 SPRING 177090-03121
68 DISK, D78 T1.7 177090-03080
69 PLATE, STEEL 177090-03090
70 SPACER 177090-03130
71 SPACER 177090-03140
72 COLLAR, THRUST 177090-03270
73 NUT 177090-03760
74 SPACER 177095-03240
75 SHIM SET 177095-03800
76 ROLLER BEARING 177095-03900
77 BUSH 177095-03150
78 BEARING, 30207 24141-302070
79 BEARING, 30206 24141-302060
80 GEAR, IDLE Z=17/26 177090-03320
81 GEAR, IDLE Z=24/26 177090-03610
82 BEARING, 30205 24141-302050
83 SHAFT, OUTPUT 177090-03800
84 GEAR, I=3 Z=72 177090-03810
85 GEAR, OUTPUT Z=65 177090-03820
86 O-RING, 1AS38.0 24341-000380
87 COUPLING 177090-03391
88 NUT 177090-03400
89 BEARING, 30208 24141-302080
90 ROLLER BERG. #30308 177090-03920
91 PUMP ASSY, HYDRAULIC 777095-04900
93 PLUG 124060-32990
97 PIN 101304-32560
98 COVER 124060-32070
99 O-RING 103338-32570
100 BOLT, M6X 10 PLATED 26116-060102
101 GASKET, 8X1.0 23414-080000
102 BOLT, M8X 22 26450-080222
103 PIPE 177090-07400
104 BOLT, JOINT 10 23851-100006
105 GASKET, 16X1.0 23414-160000
106 WIRE, 1.0 22451-100000
107 RETAINER, PIPE 177090-07410
108 BOLT, M10X 15 PLATED 26116-100152
109 STRAINER 177090-04400
110 GASKET, 20X1.0 23414-200000
111 GASKET, PUMP 177095-04120
