YANMAR 177411-02160 Cover Assy

Write a Review
$1,066.76
SKU:
177411-02160
Schematic Object Key:
28

YANMAR 177411-02160 Cover Assy

$1,066.76

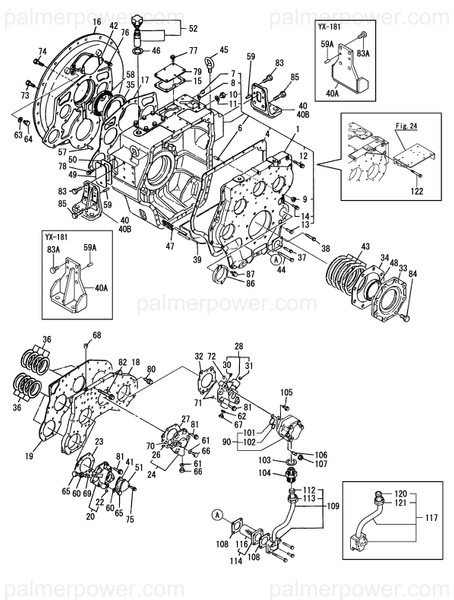

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177411-02160 Cover Assy

Schematic Object Key : 28

Product Description : COVER ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY, CLUTCH 777417-02550
4-1 GASKET, COVER 177411-02042
6 PIN, TAPER 13X 30 22333-130300
7 PLUG, R03 23871-030000
8 PLUG, R03 23871-030000
9 NUT, M12 26716-120002
10 PLUG, MAGNET M16X1.5 177035-02920
11 GASKET, 16X1.0 23414-160000
12 BOLT, M10X 70 PLATED 26106-100702
13 BOLT, M10X 25 PLATED 26203-100252
14 BOLT, M10X 25 PLATED 26106-100252
15 GASKET 145610-01460
16A FLANGE, MOUNTING 177417-02070
18 PLATE, CASE 177411-02081
19-1 GASKET, PLATE 177411-02092
20 COVER ASSY 177411-02100
22 PLUG, R01 23871-010000
23-1 GASKET, COVER 177411-02121
24 COVER ASSY 177411-02130
26 PLUG, R01 23871-010000
27-1 GASKET, COVER 177411-02151
28 COVER ASSY 177411-02160
30 PLUG, R01 23871-010000
31 PLUG, R03 23871-030000
32-1 GASKET, COVER 177411-02181
33 COVER 177411-02220
33-1 COVER, REAR 177411-02221
34-1 GASKET, COVER 177411-02231
35 SPACER, INPUT 177411-02250
36 SHIM SET 177411-02550
37 BOLT, M10X 40 PLATED 26203-100402
38 BOLT, M10X 65 PLATED 26203-100652
39-1 PLATE, BAFFLE 177411-02801
40B FOOT, MOUNTING 177417-02830
41-1 GASKET 124223-42021
41-2 GASKET 177561-02400
43 SHIM SET 135633-82400
44 BOLT, M10X100 PLATED 26203-101002
45 BOLT, EYE M20 26610-200002
46-1 WASHER, SEAL 30 22190-300002
47 SPRING 47734-045320
48 OIL SEAL 177411-02300
49 COVER 145610-82450
50 PACKING 145610-82460
51 COVER 145410-82800
52 PLUG ASSY, M30X1.5 123672-82850
59 PIN, PARALLEL M12X40 22312-120400
65-1 PLUG, 12 23490-120002
66-1 PLUG, 12 23490-120002
67-1 PLUG, 12 23490-120002
68 PLUG, R01 23871-010000
68-1 PLUG, R03 23871-030000
69 O-RING, 1AP12.0 24311-000120
70 O-RING, 1AP12.0 24311-000120
71 O-RING, 1AP12.0 24311-000120
72 O-RING, 1AP16.0 24311-000160
75 BOLT, M8X 16 PLATED 26106-080162
77 BOLT, M10X 20 PLATED 26106-100202
78 BOLT, M10X 20 PLATED 26106-100202
79 COVER 145610-01450
80 BOLT, M10X 35 PLATED 26106-100352
81 BOLT, M10X 50 PLATED 26106-100502
82 BOLT, M10X100 PLATED 26106-101002
83 BOLT, M16X 40 PLATED 26156-160402
84 BOLT, M16X 40 PLATED 26116-160402
85 BOLT, M16X 50 PLATED 26156-160502
86 COVER 177010-02430
87 BOLT, M10X 14 PLATED 26106-100142
90-1 PUMP ASSY, HYDRAULIC 177411-04140
101 O-RING, 1AP16.0 24311-000160
102 O-RING, 1AG30.0 24321-000300
103 GASKET, 30X1.0 23414-300000
104 UNION, 25 23831-250000
105 BOLT, M10X 25 PLATED 26106-100252
106 STUD BOLT M10X22 26212-100222
107 NUT, M10 26366-100002
108 GASKET, STRAINER 177411-04010
109 PIPE ASSY, OIL 177412-04801
112 JOINT, 25 23311-250000
113 NUT, CAP 25 23821-250000
114 STRAINER 136613-84610
116 FILTER 136613-84631
117 PIPE ASSY, HYDRAULIC 177417-04680
120 JOINT, 25 23311-250000
121 NUT, CAP 25 23821-250000
122 BOLT, M10X 75 PLATED 26106-100752
