YANMAR 177415-04730 Pipe Assy, Oil

Write a Review
$199.15
SKU:
177415-04730
Schematic Object Key:
56A

YANMAR 177415-04730 Pipe Assy, Oil

$199.15

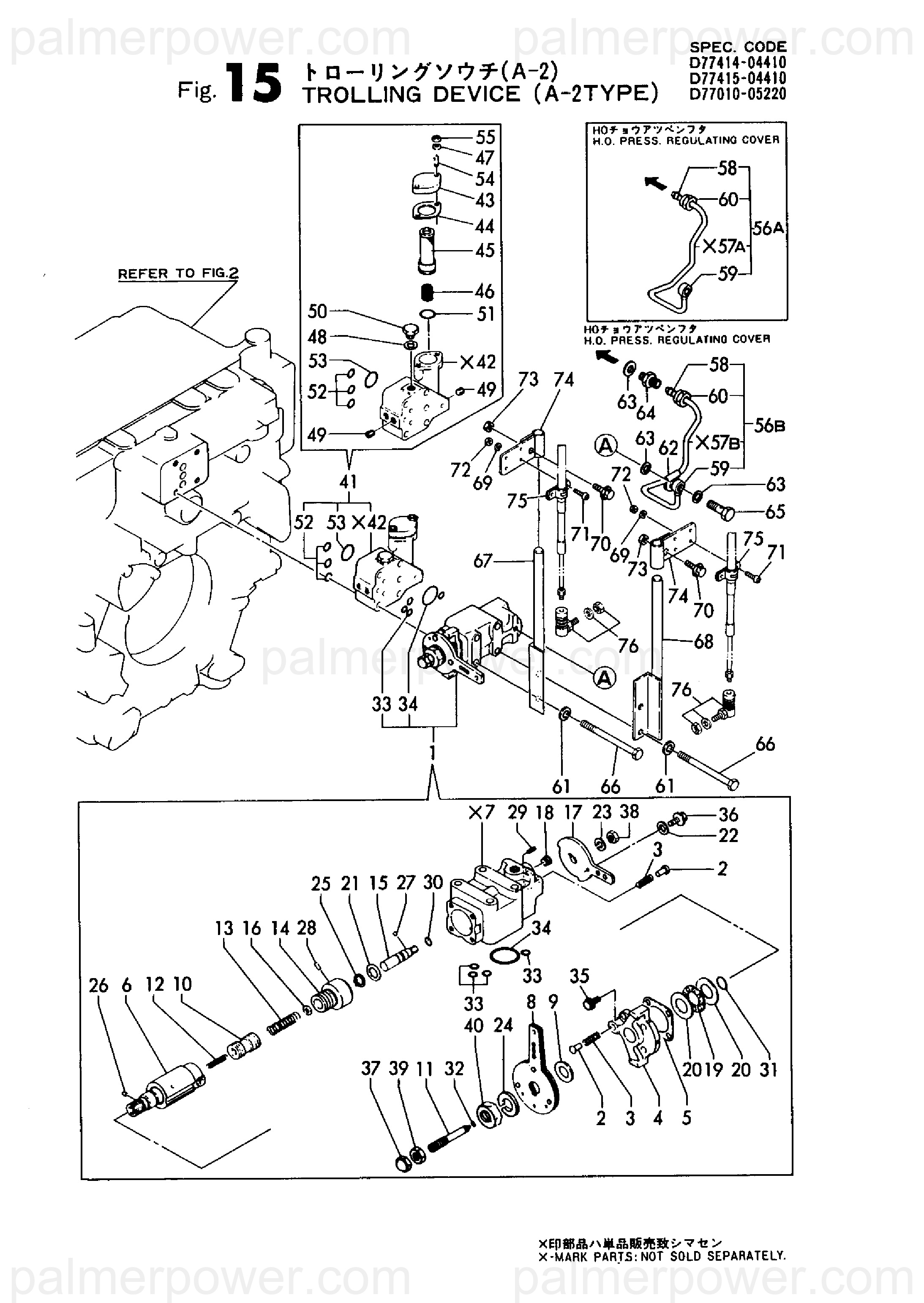

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177415-04730 Pipe Assy, Oil

Schematic Object Key : 56A

Product Description : PIPE ASSY, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY, SWITCH 177019-04101
2 CLAW 122117-03670
3 SPRING 122117-03680
4 COVER, VALVE 196103-04030
5 GASKET, COVER 177001-04040
6 COCK, VALVE 177019-04073
8 LEVER 196103-04100
9 WASHER 196103-04110
10 VALVE, TROLLING A 196103-04131
11 SCREW, ADJUST 196103-04220
12 SPRING 196103-04241
13 SPRING, VALVE 196103-04550
14 VALVE, TROLLING A-2 196103-04560
15 SHAFT, LEVER 196103-04570
16 WASHER 196103-04590
17 LEVER, DRIVING 196103-04600
18 PLUG, 1/16 123385-82200
19 BEARING, NEEDLE 125310-84580
20 WASHER, THRUST 125310-84590
21 WASHER 12 22111-120000
22 WASHER, SPRING 6 22217-060000
23 WASHER, SPRING 8 22217-080000
24 WASHER, SPRING 16 22217-160000
25 RING, 12 22242-000120
26 PIN, PARALLEL M4X 6 22312-040060
27 PIN, PARALLEL M4X 6 22312-040060
28 PIN, PARALLEL M4X14 22312-040140
29 PIN, SPRING 4.0X16 22351-040016
30 O-RING, 1AP9.0 24311-000090
31 O-RING, 1AP16.0 24311-000160
32 O-RING, 1AS5.0 24341-000050
33 O-RING, 1AS11.2 24341-000112
34 O-RING, 1AS32.0 24341-000320
35 BOLT, M6X 16 PLATED 26106-060162
36 BOLT, M6X 16 PLATED 26106-060162
37 NUT, CAP M10 26678-100002
38 NUT, LOCK M8 26756-080002
39 NUT, LOCK M10 26776-100002
40 NUT, LOCK M16 26776-160002
41 PLATE ASSY 196103-04460
43 COVER, STRAINER 196103-04161
44 GASKET 196103-04170
44-1 GASKET, COVER 196103-04171
45 STRAINER ASSY 196103-04251
46 SPRING 196103-04270
47 WASHER, SPRING 6 22217-060000
48 GASKET, 12X1.0 23414-120000
49 PLUG, R01 23871-010000
50 PLUG, 12 23887-120002
51 O-RING, 1AP21.0 24311-000210
52 O-RING, 1AS11.2 24341-000112
53 O-RING, 1AS24.0 24341-000240
54 STUD, M6X 18 26226-060182
55 NUT, M6 26716-060002
56A PIPE ASSY, OIL 177415-04730
58 JOINT, 6 23314-060000
59 JOINT, PIPE 6-12 23341-060000
60 NUT, CAP 6 23821-060000
61 WASHER, 8 22117-080000
62 CLAMP, A6X12 23297-060121
63 GASKET, 12X1.0 23414-120000
64 UNION, 6 23831-060000
65 JOINT BOLT 6 23851-060000
66 BOLT, M8X118 PLATED 26116-081182
67 BRACKET, WIRE 196103-04480
68 BRACKET, WIRE 196103-04760
69 SPRING WASHER 22212-050000
70 BOLT, M8X 20 PLATED 26106-080202
71 SCREW 26551-050122
72 NUT, M5 26711-050002
73 NUT, LOCK M8 26756-080002
74 BRACKET 41701-001720
75 CLAMP 41710-000410
76 JOINT, BALL 41710-001300
