YANMAR 177416-04050 Valve Assy, Trolling

Write a Review
$4,644.59
SKU:
177416-04050
Schematic Object Key:
1E

YANMAR 177416-04050 Valve Assy, Trolling

$4,644.59

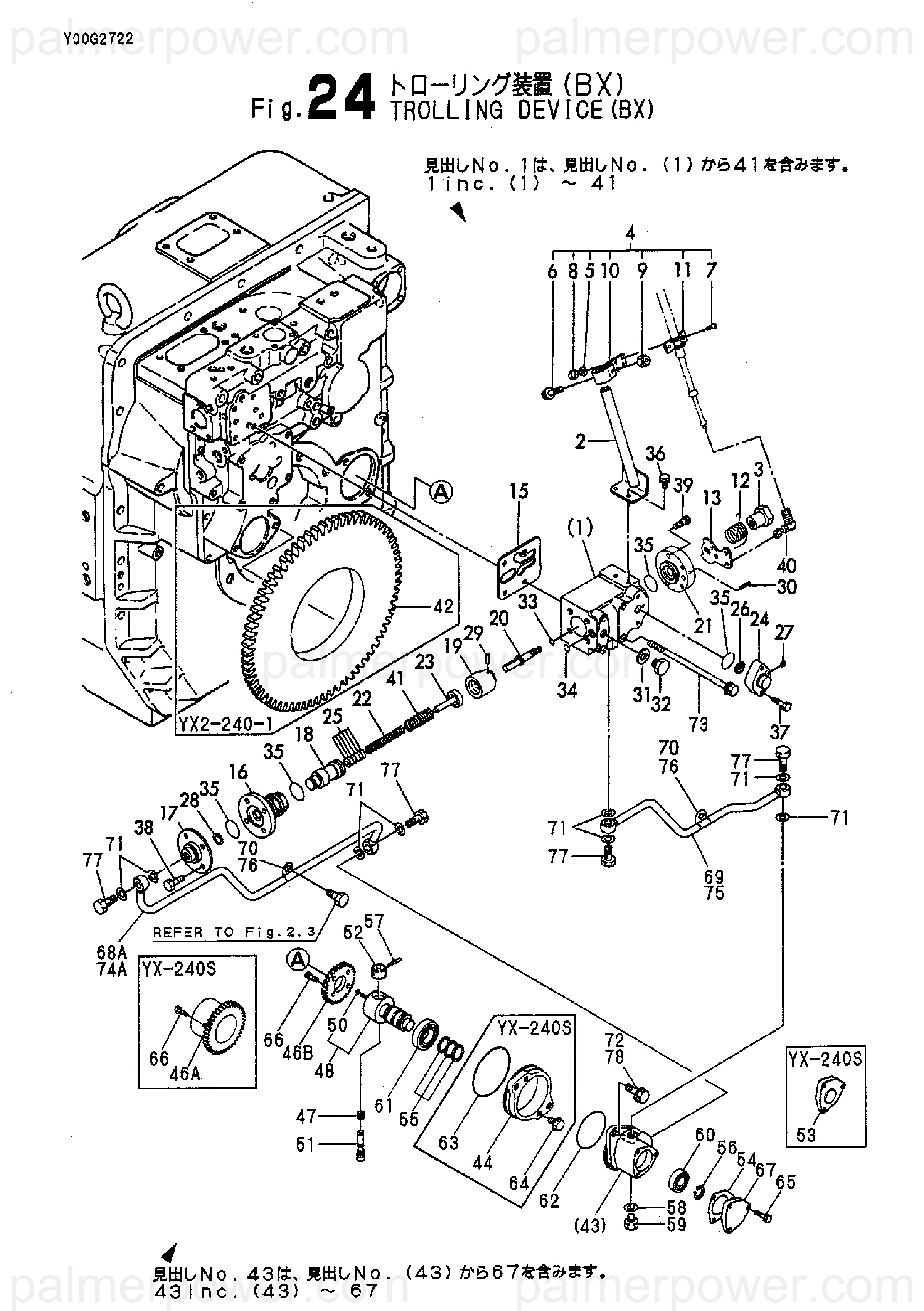

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177416-04050 Valve Assy, Trolling

Schematic Object Key : 1E

Product Description : VALVE ASSY, TROLLING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A VALVE ASSY, TROLLING 177416-04010
1B VALVE ASSY, TROLLING 177416-04020
1C VALVE ASSY, TROLLING 177416-04030
1D VALVE ASSY, TROLLING 177416-04040
1E VALVE ASSY, TROLLING 177416-04050
2 BRACKET, WIRE 177057-04481
3 NUT 177068-04481
4 BRACKET ASSY, CABLE 177061-04490
5 SPRING WASHER 22212-050000
6 BOLT, M8X 20 PLATED 26116-080202
7 SCREW 26551-050122
8 NUT, M5 26716-050002
9 NUT, M8 26716-080002
10 BRACKET 41701-001720
11 CLAMP 41710-000410
12 SPRING, RETURN 177068-04492
13 LEVER, TROLLING 177057-04602
15 PACKING 177416-04810
16 SLEEVE, VALVE 177416-04821
17 COVER 177416-04831
18 VALVE, TROLLING 177416-04841
19 VALVE, TROLLING 177416-04850
20 SHAFT, LEVER 177416-04860
21 COVER 177416-04870
22 SPRING 177416-04880
23 RETAINER, SPRING 177416-04940
24 CASE, STRAINER 177416-04950
25 SHIM SET, D12/6 177416-04990
26 STRAINER 194630-43220
27 PLUG, 1/16 123385-82200
28 RING, S-17 22292-000170
29 PIN, PARALLEL M4X16 22312-040160
30 PIN, SPRING 4.0X20 22351-040020
31 GASKET, 12X1.0 23414-120000
32 PLUG, 12 23887-120002
33 O-RING, 1AP9.0 24311-000090
34 O-RING, 1AP11.0 24311-000110
35 O-RING, 1AG30.0 24321-000300
36 BOLT, M6X 12 PLATED 26116-060122
37 BOLT, M6X 25 PLATED 26116-060252
38 BOLT, M8X 25 PLATED 26116-080252
39 BOLT, M8X 20 26450-080202
40 JOINT, BALL 41710-001300
41A SPRING 177416-04890
41B SPRING 177416-04900
41C SPRING 177416-04910
41D SPRING 177416-04920
43A VALVE ASSY, GOVERNOR 177425-04700
44 BRACKET 177425-02850
46A GEAR, GOVERNOR Z=38 177425-04391
47 SPRING, VALVE 177058-04480
48 SHAFT ASSY 177058-04510
50 SCREW, M5X 5 26911-050052
51 VALVE, GOVERNOR 177058-04531
52 WEIGHT, GOVERNOR 177058-04541
53 COVER 177010-05660
54 GASKET, COVER 177010-05670
55 RING, SEAL 145610-83400
56 RING, 20 22242-000200
57 PIN, SPRING 3.0X22 22351-030022
58 GASKET, 12X1.0 23414-120000
59 PLUG, 12 23887-120002
60 BEARING, BALL 6004 24101-060044
61 BEARING, BALL 6006 24101-060064
62 O-RING, 1AG75.0 24321-000750
63 O-RING, 1AG95.0 24321-000950
64 BOLT, M10X 20 PLATED 26106-100202
65 BOLT, M6X 16 PLATED 26116-060162
66 BOLT, M6X 20 26450-060202
68A PIPE, OIL 177425-07901
69 PIPE, OIL 177425-07951
70 CLAMP, A6X12 23297-060121
71 GASKET, 12X1.0 23414-120000
72 BOLT, M10X 30 PLATED 26106-100302
73 BOLT, M8X 90 PLATED 26116-080902
77 BOLT, JOINT 6 23857-060000
