YANMAR 177416-04880 Spring

Write a Review
$89.12
SKU:
177416-04880
Schematic Object Key:
7

YANMAR 177416-04880 Spring

$89.12

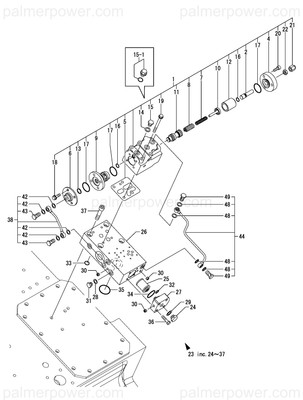

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177416-04880 Spring

Schematic Object Key : 7

Product Description : SPRING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY,ELEC 177360-04920
2 SCREW 177125-04340
4 COVER 177129-04550
5 PACKING 177416-04811
6 COVER 177416-04831
7 SPRING 177416-04880
8 SPRING 177416-04900
9 SLEEVE VALVE,ELEC 177360-04940
10 RETAINER, SPRING 177416-04940
11 VALVE A,ELEC 177360-04950
12 VALVE B,ELEC 177360-04960
13 RING, S-17 22292-000170
14 GASKET, 12X1.0 23414-120000
15 PLUG, 12 23887-120002
15-1 PLUG, 12 23490-120002
16 O-RING, 1AP11.0 24311-000110
17 O-RING, 1AG30.0 24321-000300
18 BOLT, M8X 25 PLATED 26116-080252
19 BOLT, M8X 90 PLATED 26116-080902
20 BOLT, M8X 20 26450-080202
21 NUT, CAP M12 26686-120002
22 NUT, LOCK M12 26772-120002
23 PLATE ASSY 177318-54900
23-1 PLATE ASSY 177382-54900
24 PLUG, MAGNET M16X1.5 177035-02920
25 ELEMENT 177129-04830
26 PLATE 177318-54910
26-1 PLATE, SUB VALVE 177318-54911
26-2 PLATE, SUB VALVE 177382-54911
27 COVER 177318-54920
28 GASKET, 12X1.0 23414-120000
29 GASKET, 16X1.0 23414-160000
30 PLUG, R01 23871-010000
31 PLUG, 12 23887-120002
32 O-RING, 1AP11.0 24311-000110
33 O-RING, 1AP14.0 24311-000140
34 O-RING, 1AG30.0 24321-000300
35 O-RING, 1AG40.0 24321-000400
36 BOLT, M8X 30 PLATED 26116-080302
36-1 BOLT, M8X 30 PLATED 26106-080302
37 BOLT, M12X 60 26450-120602
38 PIPE ASSY,VALVE 177318-57450
42 GASKET, 12X1.0 23414-120000
43 BOLT, JOINT 6 23857-060000
44 PIPE ASSY, VALVE 177318-57560
44-1 PIPE ASSY,VALVE 177318-57460
48 GASKET, 12X1.0 23414-120000
49 BOLT, JOINT 6 23857-060000
