YANMAR 177418-02250 Cover Assy

Write a Review
$2,127.64
SKU:
177418-02250
Schematic Object Key:
67

YANMAR 177418-02250 Cover Assy

$2,127.64

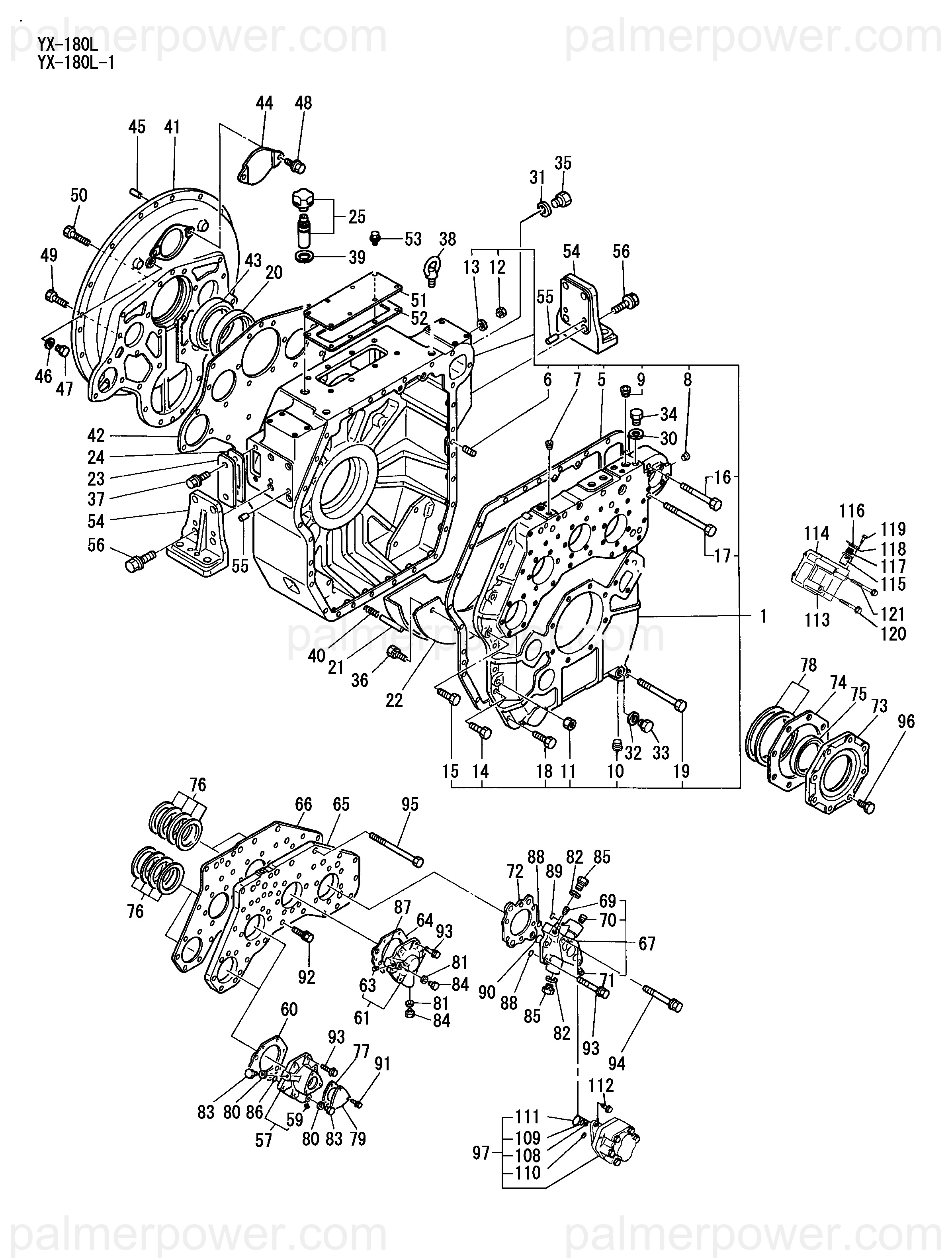

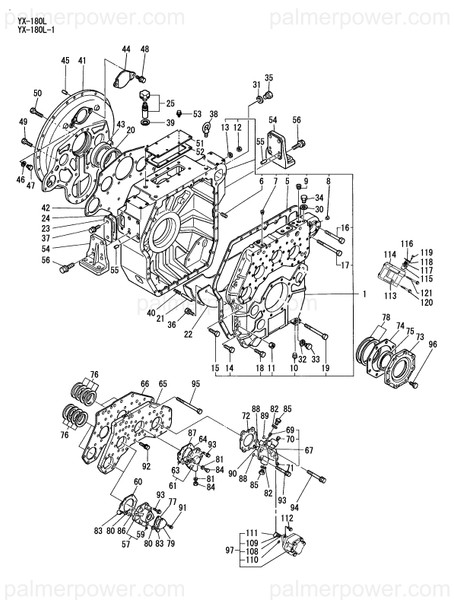

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177418-02250 Cover Assy

Schematic Object Key : 67

Product Description : COVER ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY, CLUTCH 777418-02550
1A HOUSING ASSY, CLUTCH 777418-02560
5 GASKET, COVER 177418-02150
6 PIN, TAPER 13X 30 22333-130300
7 PLUG, R01 23871-010000
8 PLUG, R03 23871-030000
9 PLUG, R06 23871-060000
10 PLUG, R06 23873-060000
11 NUT, M12 26716-120002
12 PLUG, MAGNET M16X1.5 177035-02920
13 GASKET, 16X1.0 23414-160000
14 BOLT, M12X 30 PLATED 26116-120302
15 BOLT, M12X 45 PLATED 26116-120452
16 BOLT, M12X 70 PLATED 26116-120702
17 BOLT, M12X 85 PLATED 26116-120852
18 BOLT, M12X 30 PLATED 26203-120302
19 BOLT, M12X 85 PLATED 26203-120852
20 SPACER, INPUT 177411-02250
21 PLATE, BAFFLE 177418-02800
21-1 PLATE, BAFFLE 177418-02801
22 PLATE, BAFFLE 177418-02810
22-1 PLATE, BAFFLE 177418-02811
23 COVER 145610-82450
24 PACKING 145610-82460
25 PLUG ASSY, M30X1.5 123672-82850
30 GASKET, 16X1.0 23414-160000
31 GASKET, 20X1.0 23414-200000
32 GASKET, 20X1.0 23414-200000
33 PLUG 20 23884-200002
34 PLUG, 16 23887-160002
35 PLUG, 20 23887-200002
36 BOLT, M8X 12 PLATED 26106-080122
37 BOLT, M10X 20 PLATED 26106-100202
38 BOLT, EYE M24 26610-240002
39-1 WASHER, SEAL 30 22190-300002
40 SPRING 47734-045320
41 FLANGE, MOUNTING 177418-02170
42 GASKET, MOUNTING 177418-02180
43 THROWER, OIL 177411-02270
44 BREATHER 145610-82070
45 PIN, PARALLEL M10X25 22312-100250
48 BOLT, M10X 16 PLATED 26106-100162
49 BOLT, M12X 30 PLATED 26116-120302
50 BOLT, M12X 45 PLATED 26116-120452
51 COVER 177415-02250
52-1 GASKET 177415-02261
53A BOLT, M10X 20 PLATED 26106-100202
54A FOOT, MOUNTING 177418-02840
55 PIN, PARALLEL 177115-02840
56 BOLT, M16X 40 PLATED 26156-160402
57 COVER ASSY 177411-02100
59 PLUG, R01 23871-010000
60-1 GASKET, COVER 177411-02121
61 COVER ASSY 177411-02130
63 PLUG, R01 23871-010000
64-1 GASKET, COVER 177411-02151
65 PLATE, CASE 177418-02200
66 GASKET, PLATE 177418-02210
66-1 GASKET, PLATE 177418-02211
67 COVER ASSY 177418-02250
69 PLUG, R01 23871-010000
70 PLUG, R03 23871-030000
71 PLUG, R06 23871-060000
72 GASKET 177418-02270
73 COVER 177418-02300
74 GASKET 177418-02310
75 SEAL TC12015014,OIL 177418-02330
76 SHIM SET 177411-02550
77-1 GASKET 124223-42021
77-2 GASKET 177561-02400
78 SHIM 137690-82401
79 COVER 145410-82800
83-1 PLUG, 12 23490-120002
84-1 PLUG, 12 23490-120002
85-1 PLUG, 12 23490-120002
86 O-RING, 1AP12.0 24311-000120
87 O-RING, 1AP12.0 24311-000120
88 O-RING, 1AP12.0 24311-000120
89 O-RING, 1AP16.0 24311-000160
90 O-RING, 1AP24.0 24311-000240
91 BOLT, M8X 16 PLATED 26106-080162
92 BOLT, M10X 35 PLATED 26106-100352
93 BOLT, M10X 50 PLATED 26106-100502
94 BOLT, M10X 90 PLATED 26106-100902
95 BOLT, M12X110 PLATED 26116-121102
96 BOLT, M16X 40 PLATED 26156-160402
97-1 PUMP ASSY, HYDRAULIC 177418-04140
108 O-RING, 1AP5.0 24311-000050
109 O-RING, 1AP16.0 24311-000160
110 O-RING, 1AP24.0 24311-000240
111 O-RING, 1AG30.0 24321-000300
112 BOLT, M10X 25 PLATED 26106-100252
113 BODY, CASE 177418-04010
114 GASKET 177418-04020
115 STRAINER, SUCTION 177055-04050
116 COVER, STRAINER 177055-04060
117 SPRING 177010-05430
118-1 O-RING, 1AG55.0 24321-000550
119 BOLT, M10X 20 PLATED 26106-100202
120 BOLT, M10X 80 PLATED 26106-100802
121 BOLT, M10X100 PLATED 26106-101002
