YANMAR 177421-04511 Valve Assy, Governor

Write a Review
$7,567.34
SKU:
177421-04511
Schematic Object Key:
77

YANMAR 177421-04511 Valve Assy, Governor

$7,567.34

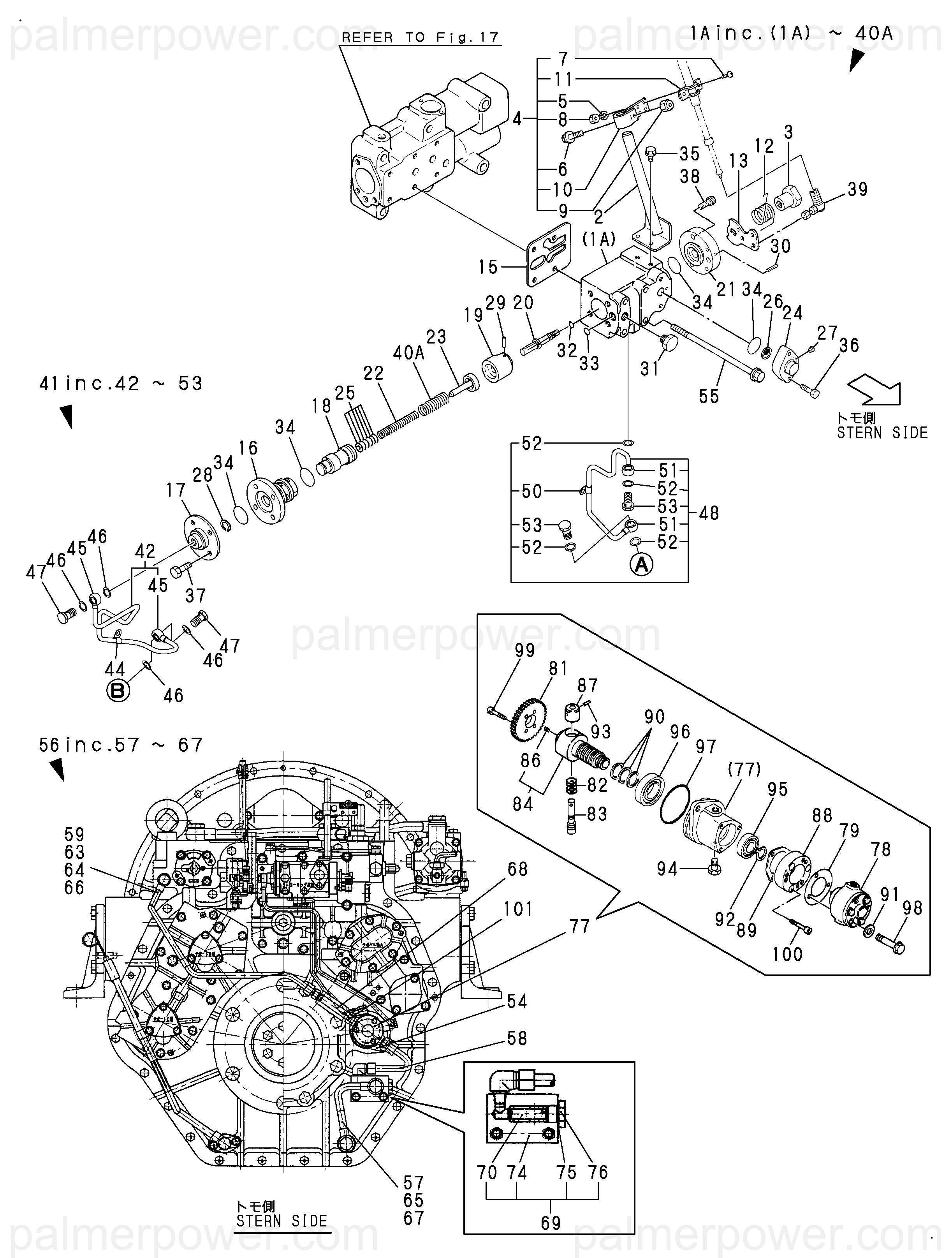

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177421-04511 Valve Assy, Governor

Schematic Object Key : 77

Product Description : VALVE ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A VALVE ASSY, TROLLING 177416-04010
1B VALVE ASSY, TROLLING 177416-04020
1C VALVE ASSY, TROLLING 177416-04030
1D VALVE ASSY, TROLLING 177416-04040
1E VALVE ASSY, TROLLING 177416-04050
2 BRACKET, WIRE 177057-04481
3 NUT 177068-04481
4 BRACKET ASSY, CABLE 177061-04490
5 SPRING WASHER 22212-050000
6 BOLT, M8X 20 PLATED 26116-080202
7 SCREW, M5X16 26557-050162
8 NUT, M5 26716-050002
9 NUT, M8 26716-080002
10 BRACKET 41701-001720
11 CLAMP 41710-000410
12 SPRING, RETURN 177068-04492
13 LEVER, TROLLING 177057-04602
15 PACKING 177416-04811
16 SLEEVE, VALVE 177416-04821
17 COVER 177416-04831
18 VALVE, TROLLING 177416-04841
19 VALVE, TROLLING 177416-04850
20 SHAFT, LEVER 177416-04860
21 COVER 177416-04870
22 SPRING 177416-04880
23 RETAINER, SPRING 177416-04940
24 CASE, STRAINER 177416-04950
25 SHIM SET, D12/6 177416-04990
26 STRAINER 194630-43220
27 PLUG, 1/16 123385-82200
28 RING, S-17 22292-000170
29 PIN, PARALLEL M4X16 22312-040160
30 PIN, SPRING 4.0X20 22351-040020
31 PLUG, 12 23490-120002
32 O-RING, 1AP9.0 24311-000090
33 O-RING, 1AP11.0 24311-000110
34 O-RING, 1AG30.0 24321-000300
35 BOLT, M6X 12 PLATED 26116-060122
36 BOLT, M6X 25 PLATED 26116-060252
37 BOLT, M8X 25 PLATED 26116-080252
38 BOLT, M8X 20 26450-080202
39 JOINT, BALL 41710-001300
40A SPRING 177416-04890
40B SPRING 177416-04900
40C SPRING 177416-04910
40D SPRING 177416-04920
41 PIPE ASSY, OIL 177421-07891
42 PIPE ASSY 177421-07901
44 CLAMP, A8X12 23297-080121
45 JOINT, PIPE 8-12 23341-081201
46 GASKET, 12X1.0 23414-120000
47 BOLT, JOINT 6 23857-060000
48 PIPE ASSY 177421-07951
50 CLAMP, A8X12 23297-080121
51 JOINT, PIPE 8-12 23341-081201
52 GASKET, 12X1.0 23414-120000
53 BOLT, JOINT 6 23857-060000
54 BOLT, M10X 25 PLATED 26106-100252
55 BOLT, M8X 90 PLATED 26116-080902
56 PIPE ASSY, OIL 177421-04240
57 PIPE ASSY, OIL 177421-04250
58 PIPE ASSY, OIL 177421-04280
59 PIPE ASSY, OIL 177421-04291
63 CLAMP, A12X 8 23297-120081
64 GASKET, 16X1.0 23414-160000
65 GASKET, 20X1.0 23414-200000
66 JOINT BOLT 10 23851-100000
67 BOLT, JOINT 15 23854-150000
68 VALVE, CHECK 196150-04400
69 STRAINER ASSY 177421-04430
70 STRAINER ASSY 176061-04351
74 CASE, STRAINER 177421-04440
75 GASKET, 20X1.0 23414-200000
76 PLUG, 20 23887-200002
77 VALVE ASSY, GOVERNOR 177421-04511
78 PUMP ASSY, HYDRAULIC 196150-04011
79 GASKET, PUMP 196150-04031
81 GEAR, GOVERNOR Z=30 177061-04391
82 SPRING, VALVE 177058-04480
83 VALVE, GOVERNOR 177058-04531
84 SHAFT ASSY, GOVERNOR 177421-04530
86 SCREW, M5X 5 26911-050052
87 WEIGHT, GOVERNOR 177058-04541
88 SPACER 177561-04900
89 GASKET, COVER 177010-05671
90 RING, SEAL 145610-83400
91 WASHER, 6 22117-060000
92 RING, 20 22242-000200
93 PIN, SPRING 3.0X22 22351-030022
94 PLUG, 12 23490-120002
95 BEARING, BALL 6004 24101-060044
96 BEARING, BALL 6006 24101-060064
97 O-RING, 1AG75.0 24321-000750
98 BOLT, M6X 55 PLATED 26106-060552
99 BOLT, M6X 20 26450-060202
100 BOLT, M6X 20 26450-060202
101 NIPPLE, R3/8X1/4 23164-030200
