YANMAR 177427-02200 Plate Assy, Case

Write a Review
$7,966.34
SKU:
177427-02200
Schematic Object Key:
2

YANMAR 177427-02200 Plate Assy, Case

$7,966.34

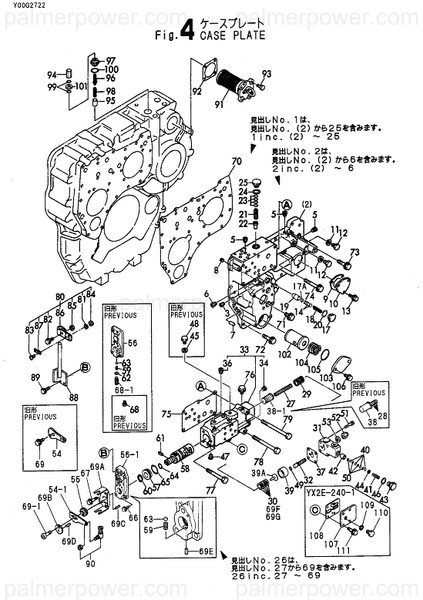

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177427-02200 Plate Assy, Case

Schematic Object Key : 2

Product Description : PLATE ASSY, CASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PLATE ASSY, CASE 777427-02500
2 PLATE ASSY, CASE 177427-02200
3 PLUG, PT1/8 124060-01050
5 PLUG, R02 23871-020000
6 PLUG, R03 23871-030000
7 PIN, PARALLEL 177115-02840
8 THROTTLE, 3.5 177427-04270
9 GASKET, WATER PUMP 124223-42020
9-1 GASKET 124223-42021
9-2 GASKET 177561-02400
10 COVER 145410-82800
11 GASKET, 12X1.0 23414-120000
12 PLUG, 12 23887-120002
13 BOLT, M8X 16 PLATED 26106-080162
14 SHIM SET 177115-04250
17 RETAINER, SPRING 177115-04260
17A SHIM, T=0.3 177017-04580
18 SPRING, VALVE 177425-04300
19 VALVE, SAFETY 137690-84060
20 GASKET, 25X1.0 23414-250000
21 SPRING, VALVE 177427-04100
22 VALVE, HYDRAULIC OIL 177416-04520
23 SHIM, T=1.0 123672-84230
24 GASKET, 30X1.0 23414-300000
25 PLUG M30 23887-300002
26 CASE ASSY, VALVE 777427-04380
27-1 SPRING, INNER 177427-04130
29-2 SPRING, OUTER 177427-04120
31 COVER 177421-04310
32 SCREW 177125-04340
33 CASE ASSY, VALVE 177427-04390
34 PLUG, PT1/8 124060-01050
36 PLUG, R02 23871-020000
37-2 GASKET, COVER 177411-04412
38-1 VALVE, HYDRAULIC 177427-04520
39-1 VALVE 177427-04560
39A RETAINER 177427-04550
40 THROTTLE 177421-04801
41 SPRING 177421-04820
42 VALVE, THROTTLE 177421-04880
43 RETAINER, SPRING 123672-84210
44 RING, 10 22252-000100
46 GASKET, 20X1.0 23414-200000
47 PLUG, R01 23871-010000
49 O-RING, 1AP11.0 24311-000110
50 O-RING, 1AS7.0 24341-000070
51 BOLT, M8X 40 PLATED 26106-080402
52 NUT, CAP M12 26687-120002
53 NUT, LOCK M12 26776-120002
54-1 LEVER 177061-04111
55 RING 177058-04160
56-1 COVER, VALVE 177421-04211
57 SPACER 177421-04220
58 VALVE, SWITCH 177427-04240
59 SPRING 177040-04400
60 RING, S-22 22292-000220
61 PIN, SPRING 4.0X20 22351-040020
63 BALL, STEEL 5/16 24190-100001
64 O-RING, 1AP18.0 24311-000180
65 O-RING, 1AS36.0 24341-000360
66 BOLT, M8X 16 PLATED 26106-080162
67-1 BOLT, M8X 30 PLATED 26106-080302
69-1 BOLT, M10X 20 26450-100202
69A SUPPORT, SWITCH 177058-04120
69B-2 SPACER 177503-04120
69C PIN, SPRING 4.0X16 22351-040016
69D PIN, SPRING 5.0X10 22351-050010
69E PIN, SPRING 3.0X10 22351-030010
69F SHIM, D16/8XT0.3 177427-04570
69G SHIM, D16/8XT0.5 177427-04580
70 GASKET, PLATE 177425-02240
71 BOLT, M10X 16 PLATED 26106-100162
72 BOLT, M10X 35 PLATED 26106-100352
73 BOLT, M10X 50 PLATED 26106-100502
74 BOLT, M10X 85 PLATED 26106-100852
75-1 GASKET, CASE 177427-04371
76 BOLT, M10X 16 PLATED 26106-100162
77 BOLT, M10X100 PLATED 26116-101002
78 BOLT, M10X140 PLATED 26116-101402
79 BOLT, M10X155 PLATED 26116-101552
80 BRACKET ASSY, CABLE 177061-04490
81 SPRING WASHER 22212-050000
82 BOLT, M8X 20 PLATED 26116-080202
83 SCREW 26551-050122
84 NUT, M5 26716-050002
85 NUT, M8 26716-080002
86 BRACKET 41701-001720
87 CLAMP 41710-000410
88 BRACKET, WIRE 177040-04750
89 BOLT, M8X 16 PLATED 26106-080162
90 JOINT, BALL 41710-001300
91 STRAINER 123672-84620
92 GASKET, COVER 123672-84630
93 BOLT 8X20 26112-080202
94 CAP NUT 139653-34090
95 VALVE, CONTROL 135610-84260
96 SCREW 135655-84280
97 RETAINER 135655-84310
98 SPRING 145610-84330
99 GASKET, 16X1.0 23414-160000
100 GASKET, 33X1.0 23414-330000
101 NUT, LOCK M16 26772-160002
102 STRAINER, SUCTION 177427-04050
103 COVER, STRAINER 177055-04060
104 SPRING 177010-05430
105 O-RING, 1AG55.0 24321-000550
106 BOLT, M10X 20 PLATED 26106-100202
107 COVER 177416-04780
108 PACKING 177416-04810
109 GASKET, 12X1.0 23414-120016
110 PLUG, 12 23887-120002
111 BOLT, M8X 30 PLATED 26116-080302
