YANMAR 177510-04570 Gasket, Valve

Write a Review
$11.37
SKU:
177510-04570

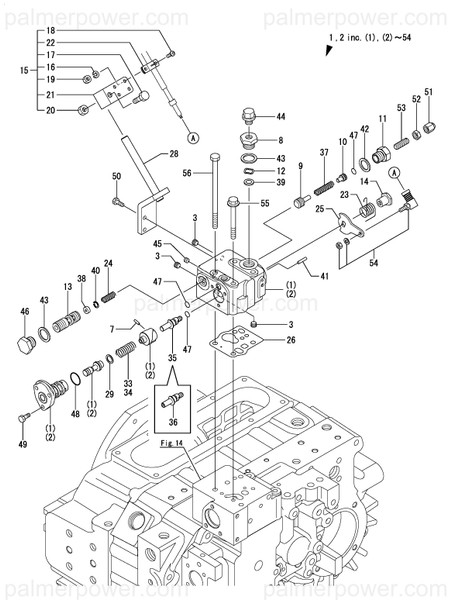

Schematic Object Key:
26

YANMAR 177510-04570 Gasket, Valve

$11.37

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177510-04570 Gasket, Valve

Schematic Object Key : 26

Product Description : GASKET, VALVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY, TROLLING 177510-04600
2 VALVE ASSY, TROLLING 177510-04610
3 PLUG, PT1/8 124060-01050
7 PIN, PARALLEL 3.5 177068-04310
8 PLUG 177068-04330
9 VALVE, CONTROL 177068-04351
10 COVER 177068-04370
11 PLUG 177068-04380
12 WASHER, 17 177068-04400
13 VALVE, SPOOL 177068-04421
14 NUT 177068-04481
15 BRACKET ASSY, CABLE 177061-04490
16 SPRING WASHER 22212-050000
17 BOLT, M8X 20 PLATED 26116-080202
18 SCREW, M5X16 26557-050162
19 NUT, M5 26716-050002
20 NUT, M8 26716-080002
21 BRACKET 41701-001720
22 CLAMP 41710-000410
23 SPRING, RETURN 177068-04492
24 SPRING, VALVE 177068-04521
25 LEVER, TROLLING 177510-04560
26 GASKET, VALVE 177510-04570
28 BRACKET, WIRE 177510-04592
29 SHIM SET 177068-04600
33 SPRING, NO.3 177068-04871
33-1 SPRING,NO3 177510-04840
34 SPRING, NO.4 177068-04881
35 SHAFT, LEVER 177510-04900
36 SHAFT, LEVER 177068-04301
37 SPRING, VALVE 177068-04931
38 ORIFICE, 4.0 177061-04990
39 STRAINER 194630-43220
40 RING, 12 22252-000120
41 PIN, SPRING 4.0X22 22351-040022
42 GASKET, 18X1.0 23414-180000
43 GASKET, 20X1.0 23414-200000
44 PLUG, 12 23490-120002
45 PLUG, R005 23871-005000
46 PLUG, 20 23887-200002
47 O-RING, 1AP9.0 24311-000090
48 O-RING, 1AP21.0 24311-000210
49 BOLT, M6X 16 PLATED 26116-060162
50 BOLT, M6X 16 PLATED 26116-060162
51 NUT, CAP M10 26667-100002
52 NUT, LOCK M10 26756-100002
53 SCREW, M10X30 26911-100302
54 JOINT, BALL 41710-001300
55 BOLT, M8X 75 PLATED 26106-080752
56 BOLT, M8X150 PLATED 26116-081502
