YANMAR 177510-04681 Valve Assy, Governor

Write a Review
$4,569.65
SKU:
177510-04681
Schematic Object Key:
1-1

YANMAR 177510-04681 Valve Assy, Governor

$4,569.65

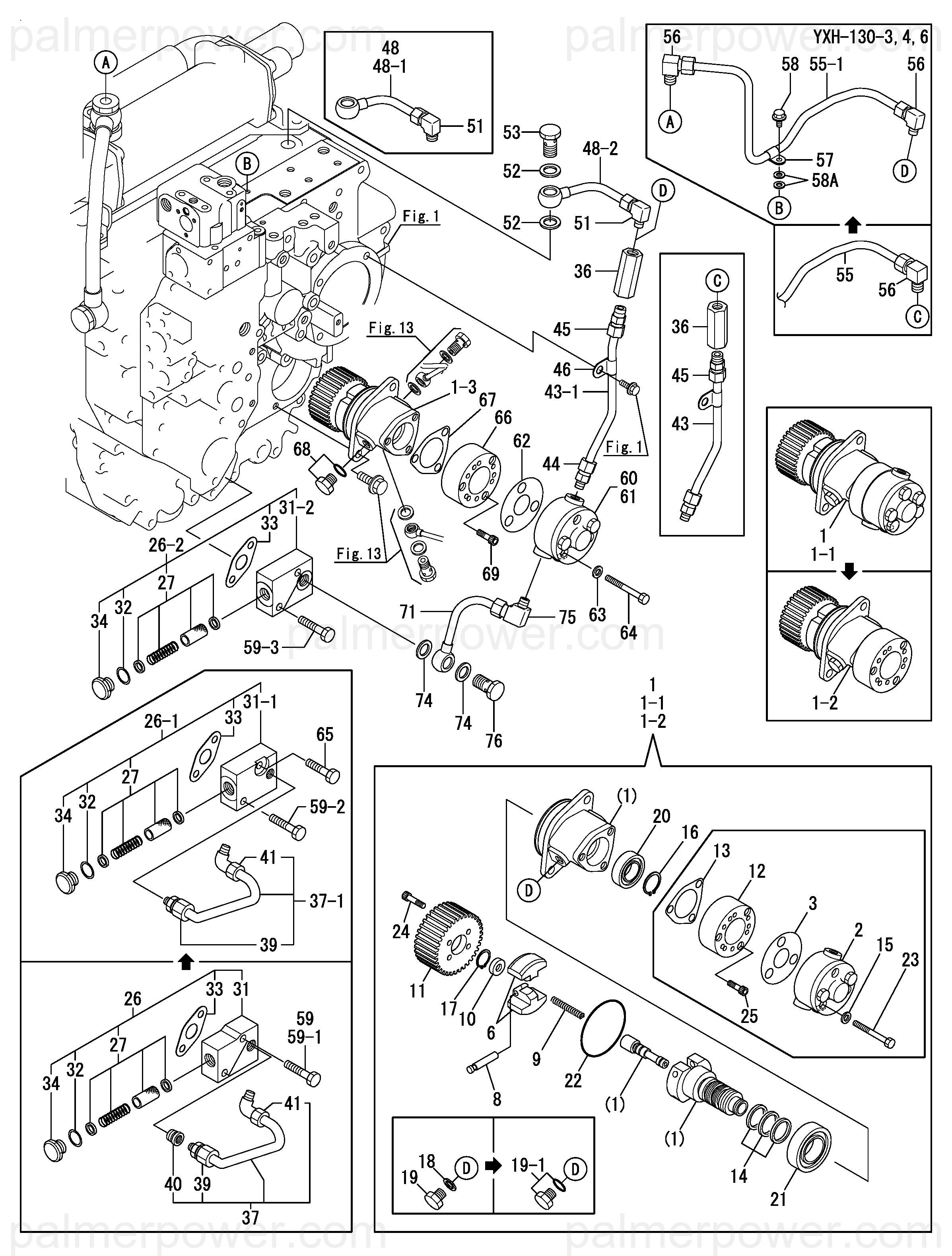

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177510-04681 Valve Assy, Governor

Schematic Object Key : 1-1

Product Description : VALVE ASSY, GOVERNOR

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 VALVE ASSY, GOVERNOR 177510-04680
1-1 VALVE ASSY, GOVERNOR 177510-04681
1-2 VALVE ASSY, GOVERNOR 177510-04682
1-3 VALVE ASSY, GOVERNOR 177510-04683
2 PUMP ASSY, HYDRAULIC 196150-04011
3 GASKET, PUMP 196150-04031
6 WEIGHT, B=20M/M 177061-04340
8 PIN 177061-04361
9 SPRING 177061-04370
10 RETAINER, SPRING 177061-04380
11 GEAR, GOVERNOR Z=30 177510-04390
12 SPACER 177561-04900
13 GASKET, COVER 177010-05670
13-1 GASKET, COVER 177010-05671
13-2 GASKET, COVER 177010-05671
14 RING, SEAL 145610-83400
15 WASHER, 6 22117-060000
16 RING, 20 22242-000200
17 RING, 20 22252-000200
18 GASKET, 12X1.0 23414-120000
19 PLUG, 12 23887-120002
19-1 PLUG, 12 23490-120002
19-2 PLUG, 12 23490-120002
20 BEARING, BALL 6004 24101-060044
21 BEARING, BALL 6006 24101-060064
22 O-RING, 1AG75.0 24321-000750
23 BOLT, M6X 55 PLATED 26116-060552
24 BOLT, M6X 25 26450-060252
25 BOLT, M6X 20 26450-060202
26 STRAINER ASSY 177061-04861
26-1 STRAINER ASSY 177510-04470
26-2 STRAINER ASSY 177510-04471
27 STRAINER ASSY 176061-04351
31 CASE, STRAINER 177061-04871
31-1 CASE, STRAINER 177510-04480
31-2 CASE, STRAINER 177510-04481
32 GASKET, 20X1.0 23414-200000
33 PACKING 23 23424-230000
34 PLUG 20 23884-200002
36 VALVE, CHECK 196150-04400
37 PIPE ASSY 177510-07310
37-1 PIPE ASSY 177510-07311
37-2 PIPE ASSY 177510-07311
39 CONNECTOR, 14-R1/4 23102-140021
40 BUSH, R3/8X1/4 23161-030200
41 ELBOW, 14XR1/4 23169-140021
43 PIPE B,TRAILING 177510-07340
43-1 PIPE B,TRAILING 177510-07341
44 CONNECTOR, 12-R1/4 23102-120021
45 CONNECTOR, 12-R3/8 23102-120031
46 CLAMP, A12X12 23297-120121
48 PIPE C ASSY,TRAILING 177510-07360
48-1 PIPE C ASSY,TRAILING 177510-07360
51 ELBOW, 12XR3/8 23169-120031
52 GASKET, 20X1.0 23414-200000
53 BOLT,JOINT 15 23851-150000
55 PIPE 177510-07420
55-1 PIPE, TR PUMP C 177510-07421
56 ELBOW, 12XR3/8 23169-120031
57 CLAMP, A12X 8 23297-120081
58 BOLT, M8X 16 PLATED 26106-080162
58A WASHER, 8 22137-080000
59 BOLT, M10X 50 PLATED 26206-100502
59-1 BOLT, M10X 50 PLATED 26203-100502
59-2 BOLT, M10X 50 PLATED 26203-100502
59-3 BOLT, M10X 50 PLATED 26203-100502
61 PUMP, TROLLING 177406-04541
62 GASKET, PUMP 196150-04031
63 WASHER, 6 22117-060000
64 BOLT, M6X 55 PLATED 26116-060552
65 BOLT, M10X 45 PLATED 26203-100452
65-1 BOLT, M10X 45 PLATED 26203-100452
66 SPACER 177561-04900
67 GASKET, COVER 177010-05671
68 PLUG, 12 23490-120002
69 BOLT, M6X 20 26450-060202
71 PIPE ASSY, A 177510-07370
74 WASHER, SEAL 18 22190-180003
75 ELBOW, 12XR1/4 23169-120021
76 BOLT, JOINT 12 23857-120000
