YANMAR 177512-02001 Case Assy

Write a Review
$24,577.21
SKU:
177512-02001
Schematic Object Key:
2-1

YANMAR 177512-02001 Case Assy

$24,577.21

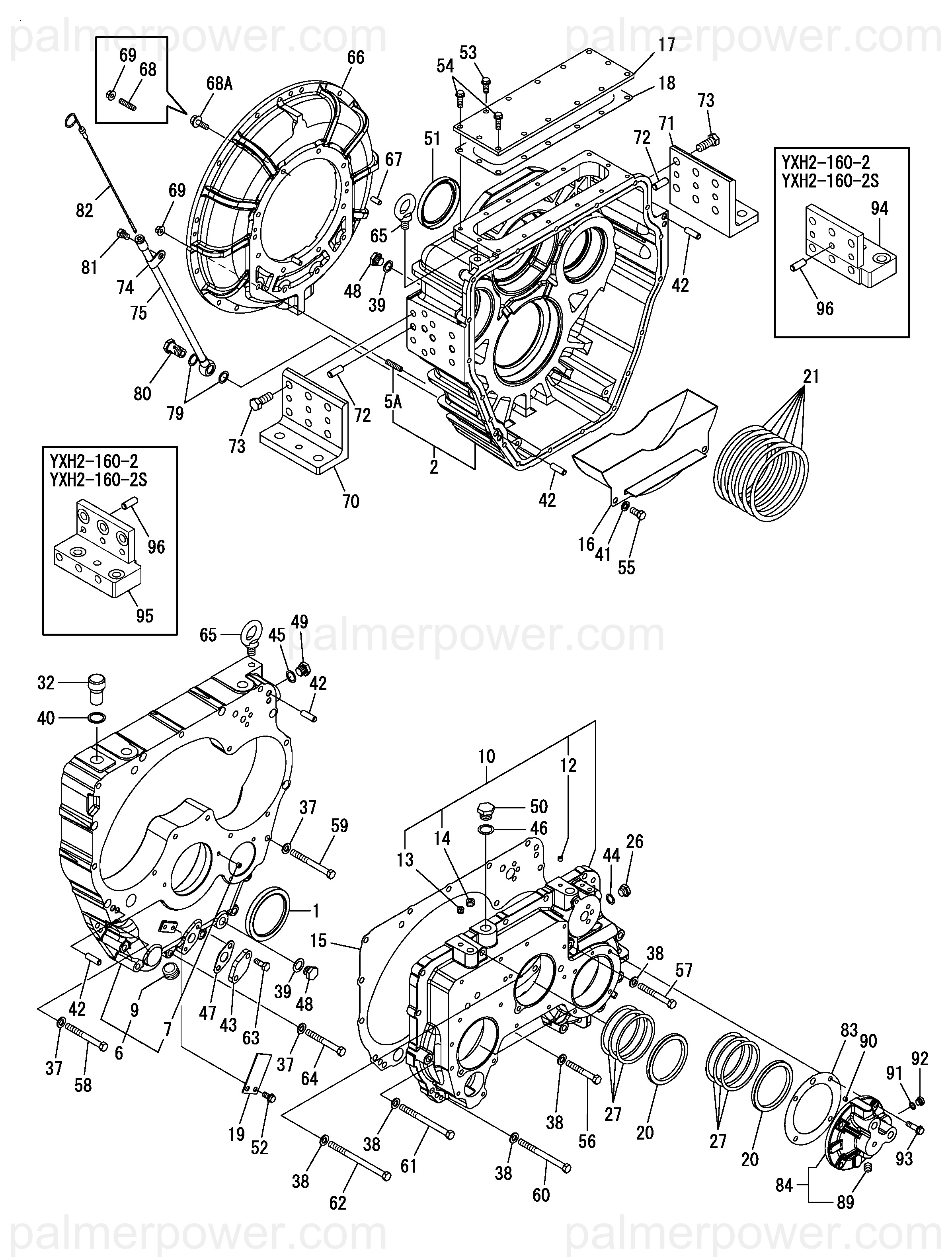

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177512-02001 Case Assy

Schematic Object Key : 2-1

Product Description : CASE ASSY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 SEAL, OIL 113202-01875
2-1 CASE ASSY 177512-02001
2-2 CASE ASSY, A 177512-02002
5A STUD, M10X 25 26226-100252
6 CASE ASSY 177512-02040
6-1 CASE ASSY, B 177512-02041
7 PLUG, PT1/8 124060-01050
9 PLUG PT 1 23873-100000
10 CASE ASSY 177512-02080
12-1 PLUG, R01 23875-010000
12-2 PLUG, R01 23871-010000
13 PLUG, R02 23871-020000
14 PLUG, R03 23871-030000
15-1 GASKET, CASE 177512-02121
16 PLATE, BAFFLE 177512-02140
16-1 PLATE, BAFFLE 177512-02141
17 COVER, CASE 177512-02150
18 GASKET 177512-02160
19 RETAINER 177514-02250
20 BUSH 177512-02410
21 SHIM SET 177512-02450
26 PLUG, MAGNET M16X1.5 177035-02920
27 SHIM SET 135210-82400
32 PLUG ASSY, M30X1.5 123672-82850
37 WASHER, 12 22133-120000
38 WASHER, 12 22137-120000
39 WASHER, SEAL 20 22190-200003
40 WASHER, SEAL 30 22190-300002
41 WASHER, SPRING 12 22217-120000
42 PIN, PARALLEL M12X40 22312-120400
43 FLANGE, 22 23221-220001
44 GASKET, 16X1.0 23414-160000
45 GASKET, 20X1.0 23414-200000
46 GASKET, 25X1.0 23414-250000
47 PACKING 23 23424-230000
48 PLUG, 20 23883-200002
49 PLUG, 20 23887-200002
50 PLUG 23887-250002
51 SEAL, OIL TC9512013 24423-952013
52 BOLT, M10X 20 PLATED 26106-100202
53 BOLT, M10X 25 PLATED 26106-100252
54 BOLT, M10X 30 PLATED 26106-100302
55 BOLT, M12X 25 PLATED 26116-120252
56 BOLT, M12X 75 PLATED 26116-120752
57 BOLT, M12X 95 PLATED 26116-120952
58 BOLT, M12X100 PLATED 26116-121002
59 BOLT, M12X115 PLATED 26116-121152
60 BOLT, M12X165 PLATED 26116-121402
61 BOLT, M12X170 PLATED 26116-121702
62 BOLT, M12X190 PLATED 26116-121902
63 BOLT, M10X 30 PLATED 26203-100302
64 BOLT, M12X100 PLATED 26203-121002
65 BOLT, EYE M16 26610-160002
66 FLANGE, MOUNTING 177512-02270
67 PIN, PARALLEL M10X25 22312-100250
68A BOLT, M10X 30 PLATED 26106-100302
69-1 NUT, M10 26366-100002
72 PIN, PARALLEL 177115-02840
73 BOLT, M16X 40 PLATED 26156-160402
74 RETAINER 177501-04950
74-1 CLAMP, A15X12 23297-150121
75 PIPE ASSY, DIPSTICK 177501-07301
79 WASHER, SEAL 20 22190-200003
80 BOLT, JOINT 15 23857-150000
81 BOLT, M12X 16 PLATED 26116-120162
82 DIPSTICK 42130-500530
83 GASKET 177513-02170
84 COVER ASSY 177513-02130
89 PLUG, R02 23871-020000
90 THROTTLE, 3.0 177501-04260
92-1 PLUG, 12 23490-120002
93 BOLT, M10X 35 PLATED 26106-100352
94 FOOT, MOUNTING 177512-02570
95 FOOT, MOUNTING 177512-02580
96 BOLT, M16X115 PLATED 26156-161152
