YANMAR 177514-02250 Retainer

Write a Review
$61.64
SKU:
177514-02250
Schematic Object Key:
26

YANMAR 177514-02250 Retainer

$61.64

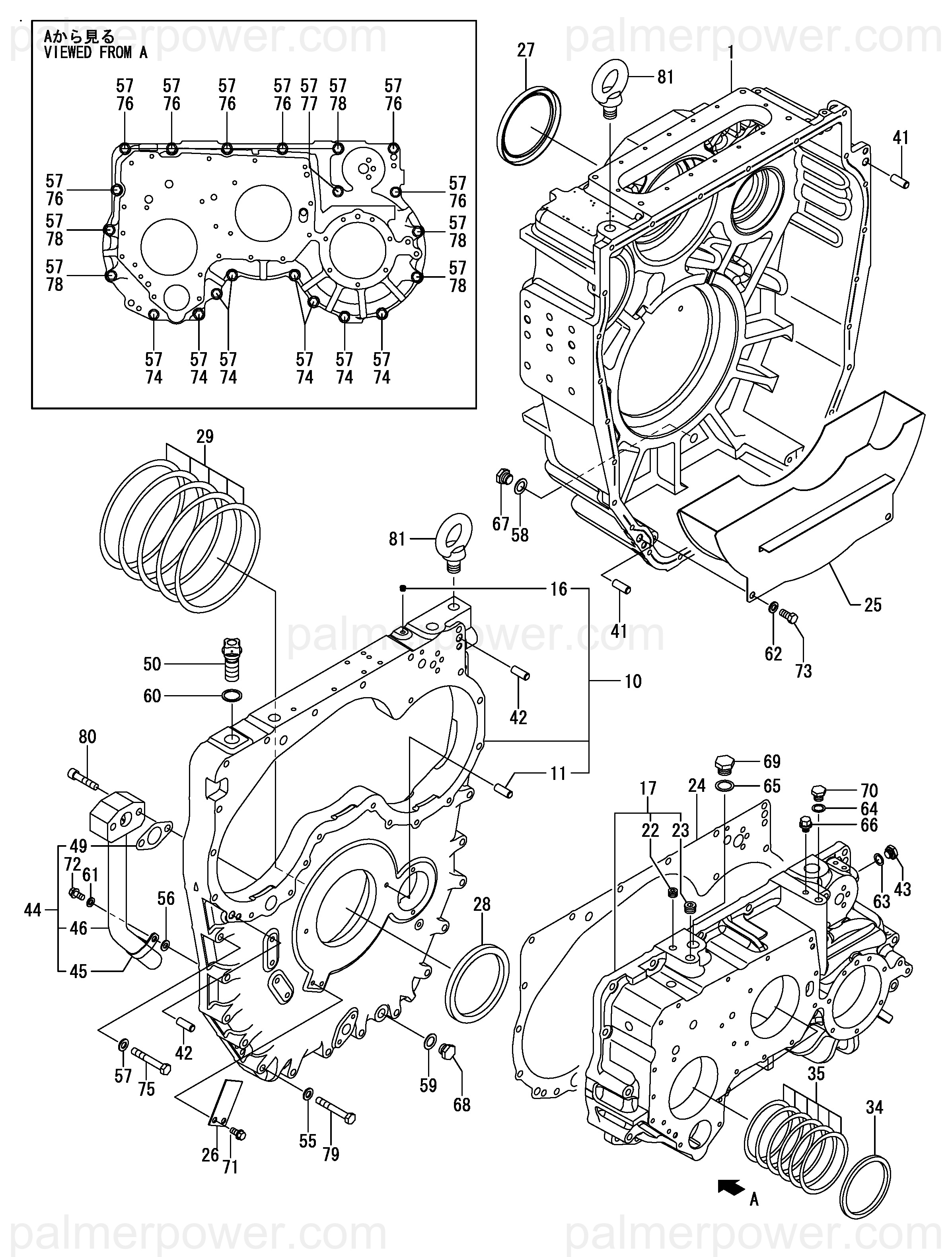

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177514-02250 Retainer

Schematic Object Key : 26

Product Description : RETAINER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY, A 177506-02000
10 HOUSING ASSY, B 177506-02040
11 PLUG, PT1/8 124060-01050
16 PLUG, R01 23871-010000
17 HOUSING ASSY, C 177506-02080
22 PLUG, R03 23871-030000
23 PLUG, R04 23871-040000
24 PACKING, CASE B.C 177506-02120
25 PLATE, BAFFLE 177506-02190
26 RETAINER 177514-02250
27 SEAL, OIL 177425-02350
28 SEAL, OIL 177425-02350
29 SHIM, ADJUST 177506-02400
34 BUSH 177514-02410
35 SHIM SET, ADJUSTING 177506-02600
41 PIN, PARALLEL 177115-02840
42 PIN, PARALLEL 177115-02840
43 PLUG, MAGNET M16X1.5 177035-02920
44 PIPE, HYDRAULIC OIL 177506-07210
45 RETAINER 177421-02581
46 PIPE, HYDRAULIC OIL 177506-07220
49 PACKING 36 23423-360100
50 PLUG ASSY, M30X1.5 123672-82850
55 WASHER, 12 22133-120000
56 WASHER, 10 22137-100000
57 WASHER, 12 22137-120000
58 WASHER, SEAL 20 22190-200003
59 WASHER, SEAL 20 22190-200003
60 WASHER, SEAL 30 22190-300002
61 WASHER, SPRING 10 22217-100000
62 WASHER, SPRING 12 22217-120000
63 GASKET, 16X1.0 23414-160000
64 GASKET, 17X1.0 23414-170000
65 GASKET, 25X1.0 23414-250000
66 PLUG, 12 23490-120002
67 PLUG, 20 23883-200002
68 PLUG, 20 23883-200002
69 PLUG 23887-250002
70 PLUG G3/8,HEX. 23897-030002
71 BOLT, M10X 20 PLATED 26106-100202
72 BOLT, M10X 20 PLATED 26106-100202
73 BOLT, M12X 25 PLATED 26116-120252
74 BOLT, M12X 45 PLATED 26116-120452
75 BOLT, M12X 85 PLATED 26116-120852
76 BOLT, M12X110 PLATED 26116-121102
77 BOLT, M12X120 PLATED 26116-121202
78 BOLT, M12X190 PLATED 26116-121902
79 BOLT, M12X 85 PLATED 26203-120852
80 BOLT, M12X 55 26450-120552
81 BOLT, EYE M24 26610-240002
