YANMAR 177555-07811 Pipe Assy, Oil

Write a Review
$829.70
SKU:
177555-07811
Schematic Object Key:
86-1

YANMAR 177555-07811 Pipe Assy, Oil

$829.70

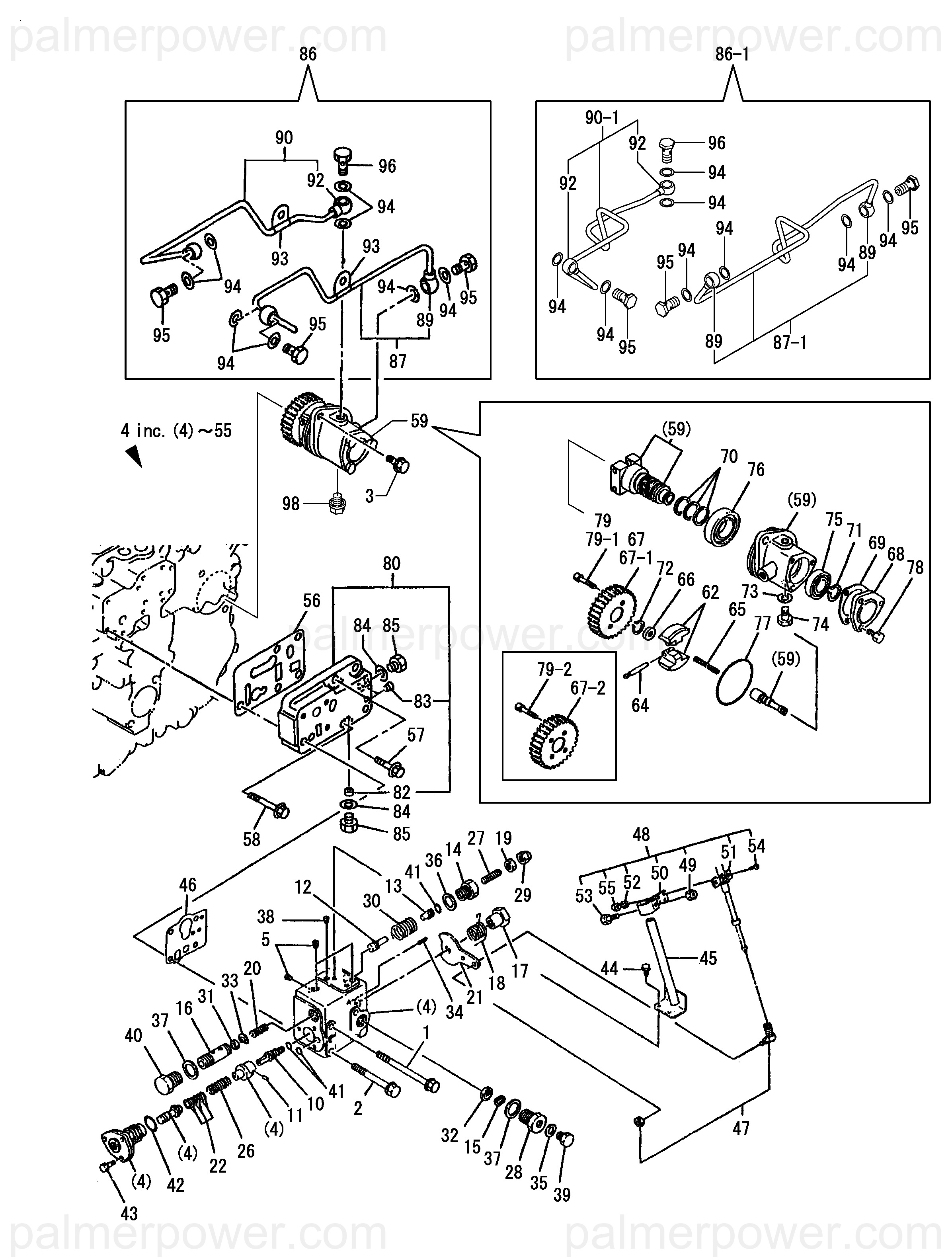

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177555-07811 Pipe Assy, Oil

Schematic Object Key : 86-1

Product Description : PIPE ASSY, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 BOLT, M8X 75 PLATED 26106-080752
2 BOLT, M8X105 PLATED 26106-081052
3 BOLT, M10X 25 PLATED 26106-100252
4 VALVE ASSY, TROLLING 177068-04150
4A VALVE ASSY, TROLLING 177068-04160
4B VALVE ASSY, TROLLING 177068-04170
4C VALVE ASSY, TROLLING 177068-04180
5 PLUG, PT1/8 124060-01050
10 SHAFT, LEVER 177068-04301
11 PIN, PARALLEL 3.5 177068-04310
12 DIPSTICK ASSY 177068-04350
12-1 VALVE, CONTROL 177068-04351
12-2 VALVE, CONTROL 177068-04450
13 COVER 177068-04370
14 PLUG 177068-04380
15 WASHER, 17 177068-04400
16 VALVE, SPOOL 177068-04420
16-1 VALVE, SPOOL 177068-04421
17 NUT 177068-04481
18 SPRING, RETURN 177068-04492
19 NUT, LOCK M10 26756-100002
20 SPRING, VALVE 177068-04521
21 LEVER, TROLLING 177057-04602
22 SHIM SET 177068-04600
26 SPRING, NO.1 177068-04851
26A SPRING, NO.2 177068-04861
26B SPRING, NO.3 177068-04871
26C SPRING, NO.4 177068-04881
27 SCREW, M10X30 26911-100302
28 PLUG 177068-04330
29 NUT, CAP M10 26667-100002
30 SPRING 177068-04930
30-1 SPRING, VALVE 177068-04931
30-2 SPRING, VALVE 177068-04830
31 ORIFICE, 4.0 177061-04990
32 STRAINER 194630-43220
33 RING, 12 22252-000120
34 PIN, SPRING 4.0X20 22351-040020
34-1 PIN, SPRING 4.0X22 22351-040022
35 GASKET, 12X1.0 23414-120000
36 GASKET, 18X1.0 23414-180000
37 GASKET, 20X1.0 23414-200000
38 PLUG, R005 23871-005000
39 PLUG, 12 23887-120002
39-1 PLUG, 12 23490-120002
40 PLUG, 20 23887-200002
41 O-RING, 1AP9.0 24311-000090
42 O-RING, 1AP21.0 24311-000210
43 BOLT, M6X 16 PLATED 26116-060162
44 BOLT, M6X 12 PLATED 26116-060122
45 BRACKET, WIRE 177057-04481
46 GASKET, VALVE 177061-04520
47 JOINT, BALL 41710-001300
48 BRACKET ASSY, CABLE 177061-04490
49 NUT, M8 26716-080002
50 BRACKET 41701-001720
51 CLAMP 41710-000410
52 SPRING WASHER 22212-050000
53 BOLT, M8X 20 PLATED 26116-080202
54 SCREW 26551-050122
54-1 SCREW, M5X16 26557-050162
55 NUT, M5 26716-050002
56 GASKET, PLATE 177055-04911
56-1 GASKET, PLATE 177055-04912
57 BOLT, M8X 30 PLATED 26106-080302
58 BOLT, M8X 45 PLATED 26106-080452
59 VALVE ASSY, GOVERNOR 177561-04350
59-1 VALVE, GOVERNOR 177068-04290
59-2 VALVE ASSY, GOVERNOR 177068-04291
62 WEIGHT, B=20M/M 177061-04340
64 PIN 177061-04361
65 SPRING 177061-04370
66 RETAINER, SPRING 177061-04380
67 GEAR, GOVERNOR Z=30 177061-04390
67-1 GEAR, GOVERNOR Z=30 177068-04391
67-2 GEAR, GOVERNOR Z=30 177068-04392
68 COVER 177061-02300
69 GASKET, COVER 177010-05670
69-1 GASKET, COVER 177010-05671
70 RING, SEAL 145610-83400
71 RING, 20 22242-000200
72 RING, 20 22252-000200
73 GASKET, 12X1.0 23414-120000
74 PLUG, 12 23887-120002
75 BEARING, BALL 6004 24101-060044
76 BEARING, BALL 6006 24101-060064
77 O-RING, 1AG75.0 24321-000750
78 BOLT, M6X 16 PLATED 26116-060162
78-1 BOLT, M6X 14 PLATED 26116-060142
79 BOLT, M6X 20 26450-060202
79-1 BOLT, M6X 25 26450-060252
79-2 BOLT, M6X 25 26450-060252
80 PLATE ASSY 177557-04910
82 THROTTLE, 2.0 177557-04970
83 PLUG, R01 23871-010000
84 GASKET, 12X1.0 23414-120016
85 PLUG, 12 23887-120002
86 PIPE ASSY, OIL 177555-07810
86-1 PIPE ASSY, OIL 177555-07811
87 PIPE ASSY 177555-07900
87-1 PIPE ASSY 177555-07901
89 JOINT, PIPE 6-12 23341-060000
90 PIPE ASSY 177555-07950
90-1 PIPE ASSY 177555-07951
92 JOINT, PIPE 6-12 23341-060000
93 CLAMP, A6X12 23297-060121
93-1 CLAMP, A6X12 23297-060121
94 GASKET, 12X1.0 23414-120016
95 BOLT, JOINT 6 23857-060000
96 BOLT 177068-04360
97 RETAINER, 6X12 177573-07050
98 PLUG, 12 23490-120002
