YANMAR 177561-02750 Cover

Write a Review
$474.13
SKU:
177561-02750
Schematic Object Key:
6

YANMAR 177561-02750 Cover

$474.13

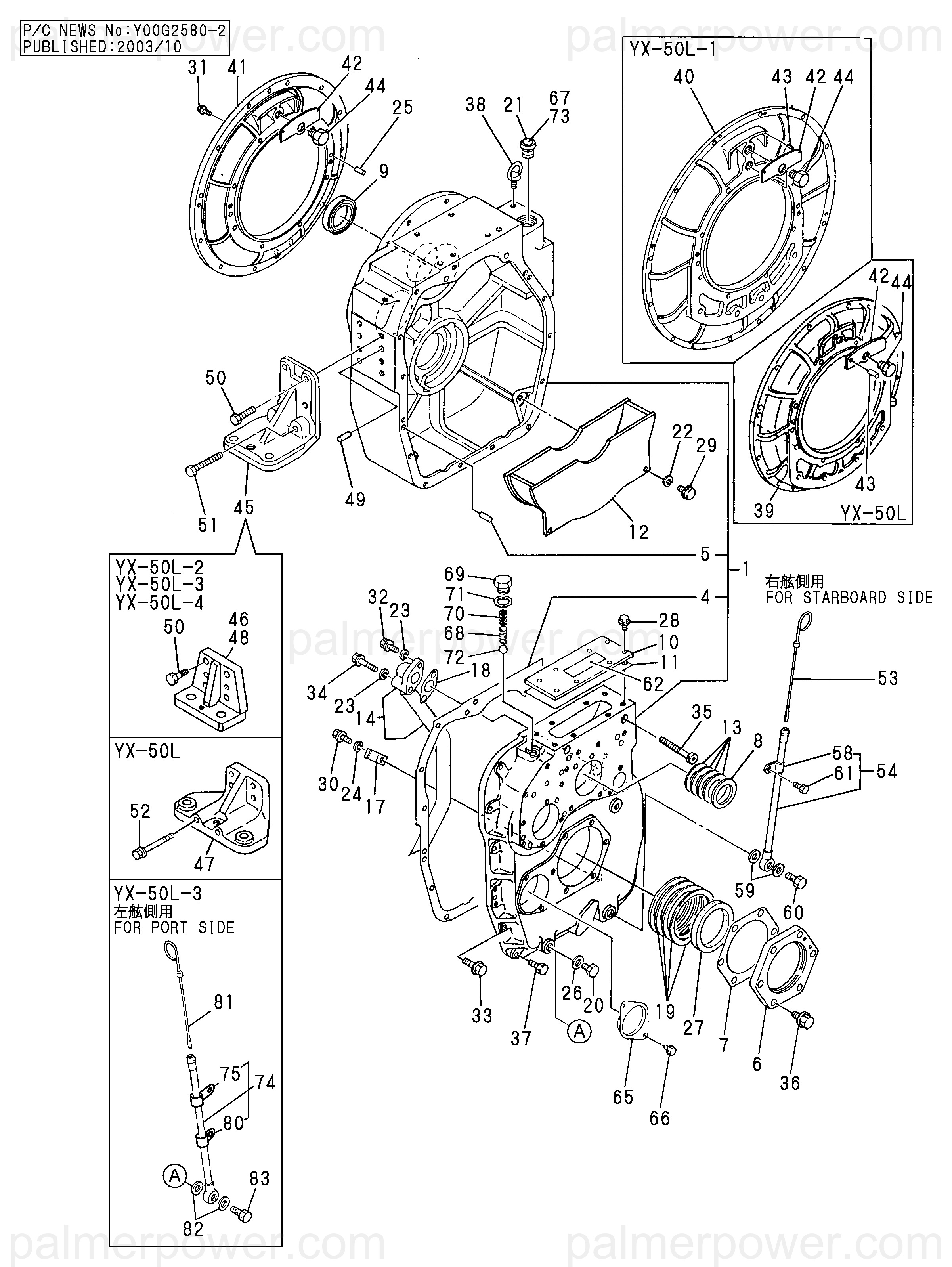

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177561-02750 Cover

Schematic Object Key : 6

Product Description : COVER

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 HOUSING ASSY 177065-02020
4 GASKET 177066-02050
5 PIN, PARALLEL M10X32 22312-100320
6 COVER 177561-02750
7 GASKET, COVER 177061-02760
8 SPACER 177059-02250
9 OIL SEAL 177030-02261
10 COVER 177061-02351
11 GASKET, COVER 177061-02360
12 PLATE, BAFFLE 177065-02500
13 SHIM SET 177040-02550
14 PIPE ASSY, OIL 177066-02550
17 RETAINER 177064-02580
18 GASKET, BEND 177064-02590
19 SHIM 145610-82550
20 PLUG, MAGNET M16X1.5 177035-02920
21 BREATHER ASSY 177025-02960
22 SPRING WASHER 10 22212-100000
23 SPRING WASHER 10 22212-100000
24 SPRING WASHER 10 22212-100000
25 PIN, PARALLEL M10X25 22312-100250
26 GASKET, 16X1.0 23414-160000
27 SEAL, OIL TC709212 24423-709212
28 BOLT, M8X 16 PLATED 26106-080162
29 BOLT, M10X 16 PLATED 26106-100162
30 BOLT, M10X 16 PLATED 26106-100162
31 BOLT, M10X 25 PLATED 26106-100252
32 BOLT, M10X 25 PLATED 26106-100252
33 BOLT, M10X 35 PLATED 26106-100352
34 BOLT, M10X 45 PLATED 26106-100452
35 BOLT, M10X 90 26450-100902
36 BOLT, M12X 30 PLATED 26116-120302
37 BOLT, M10X 35 PLATED 26203-100352
38 EYE BOLT M12 26610-120002
41 FLANGE, MOUNTING 177061-02100
42 COVER 177059-02381
44 PLUG, 18 23887-180002
46 FOOT, MOUNTING 177066-02210
49 PIN, PARALLEL M12X32 22312-120320
50 BOLT, M12X 35 PLATED 26116-120352
53 DIPSTICK 177048-02650
54 PIPE ASSY, DIPSTICK 177066-02300
58 CLAMP, A10X12 23297-100121
59 GASKET, 16X1.0 23414-160000
59-1 WASHER, SEAL 16 22190-160003
60 BOLT, JOINT 10 23854-100000
61 BOLT, M12X 16 PLATED 26116-120162
62 LABEL 104704-07090
65 COVER 177010-02430
66 BOLT, M10X 14 PLATED 26106-100142
67 LABEL 177061-02800
68 SPRING, VALVE 123672-84200
69 RETAINER, SPRING 123672-84210
70 SHIM SET 123672-84220
71 GASKET, 20X1.0 23414-200000
72 BALL, STEEL 1/2 24190-160001
