YANMAR 177561-04261 Spring

Write a Review
$27.90
SKU:
177561-04261
Schematic Object Key:
13-1

YANMAR 177561-04261 Spring

$27.90

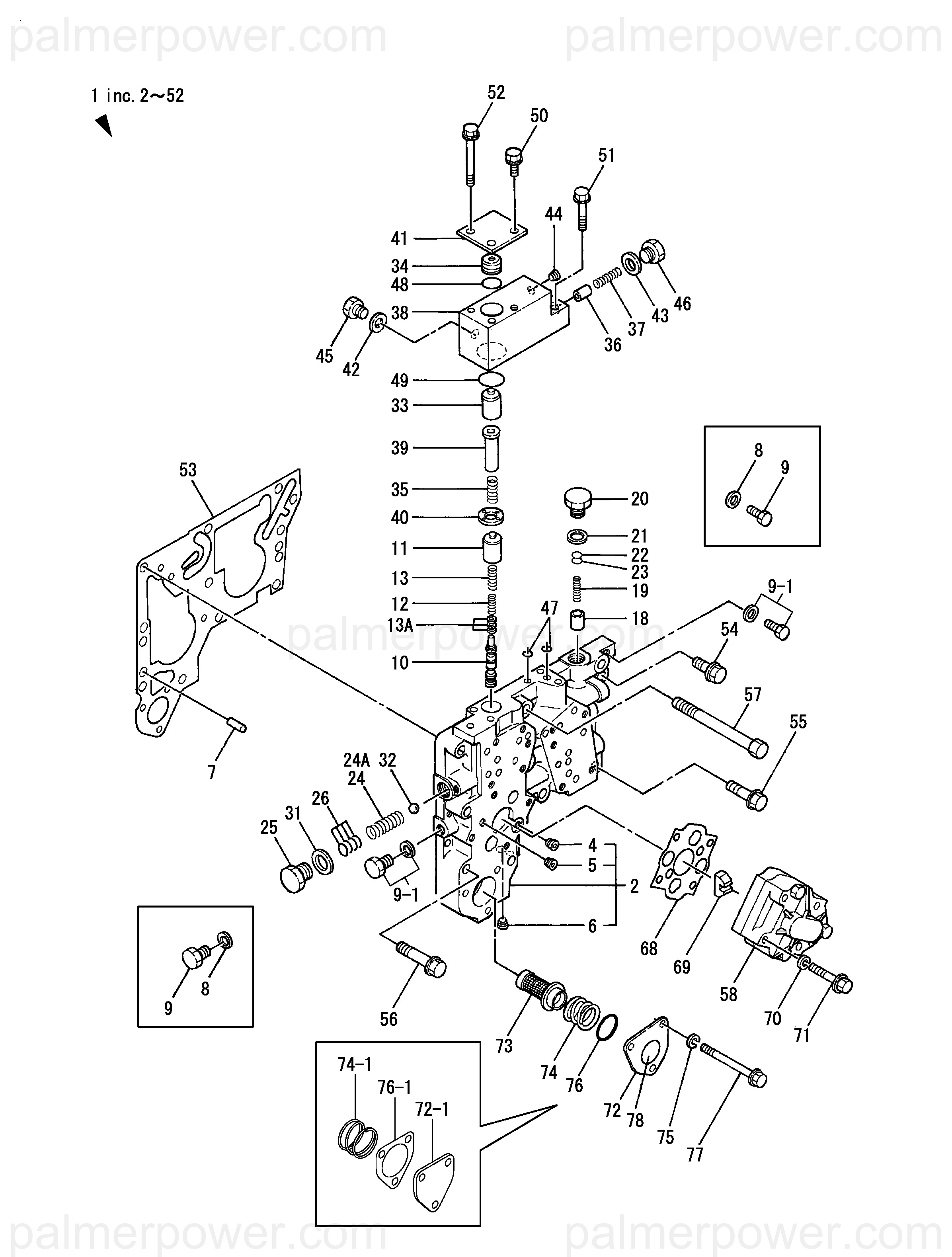

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177561-04261 Spring

Schematic Object Key : 13-1

Product Description : SPRING 177561-04261

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PLATE ASSY, CASE 777069-02520
2 PLATE ASSY, CASE 177069-02100
4 THROTTLE, 2.5 177069-04251
5 PLUG, R01 23871-010000
6 PLUG, R02 23871-020000
7 PIN, PARALLEL M10X32 22312-100320
9-1 PLUG, 12 23490-120002
10-1 VALVE 177061-04201
11-1 VALVE 177061-04221
12-1 SPRING, VALVE 177561-04250
13-1 SPRING 177561-04261
13A SHIM SET 177561-04220
18 VALVE, CONTROL 125310-34031
19 SPRING, VALVE 125310-34040
20 RETAINER, VALVE 123672-84530
21 GASKET, 18X1.0 23414-180000
22 SHIM, T=1.0 45150-030760
23 SHIM, T=0.5 45150-030770
24A SPRING 177069-04080
25 RETAINER, SPRING 123672-84210
26 SHIM SET 123672-84220
31 GASKET, 20X1.0 23414-200000
32 BALL, STEEL 1/2 24190-160001
33-1 VALVE 177061-04221
34 COVER 177040-04230
35-1 SPRING 177561-04261
36 VALVE, THROTTLE 177069-04640
37 SPRING, VALVE 177069-04650
38 BODY, VALVE 177069-04811
39-1 PISTON 177069-04821
40 RETAINER, SPRING 177069-04830
41 COVER 177069-04840
42 GASKET, 12X1.0 23414-120000
43 GASKET, 14X1.0 23414-140000
44 PLUG, R01 23871-010000
45 PLUG, 12 23887-120002
46 PLUG M14 23887-140002
47 O-RING, 1AP11.0 24311-000110
48 O-RING, 1AP22.0 24311-000220
49 O-RING, 1AS32.0 24341-000320
50 BOLT, M8X 16 PLATED 26106-080162
51 BOLT, M8X 40 PLATED 26106-080402
52 BOLT, M8X 80 PLATED 26106-080802
53 GASKET, PLATE 177069-02170
54 BOLT, M10X 30 PLATED 26106-100302
55 BOLT, M10X 50 PLATED 26106-100502
56 BOLT, M10X 60 PLATED 26106-100602
57 BOLT, M10X140 PLATED 26116-101402
58 PUMP ASSY, HYDRAULIC 177059-04000
68 GASKET, PUMP 177059-04030
69 JOINT 177059-04081
70 WASHER, 8 22287-080000
71 BOLT, M8X 60 PLATED 26106-080602
72 COVER, STRAINER 177040-02320
72-1 COVER, STRAINER 177524-04041
73 STRAINER 1E6440-55210
74 SPRING, STRAINER 1E6440-55230
74-1 SPRING, STRAINER 177524-04090
75 WASHER, 8 22287-080000
76 O-RING, 1AG35.0 24321-000350
76-1 GASKET, COVER 177524-04082
77 BOLT, M8X 65 PLATED 26106-080652
78-1 LABEL, STRAINER 177050-02821
