YANMAR 177561-04291 Pump Assy, Trolling

Write a Review
$3,226.75
SKU:
177561-04291
Schematic Object Key:
1

YANMAR 177561-04291 Pump Assy, Trolling

$3,226.75

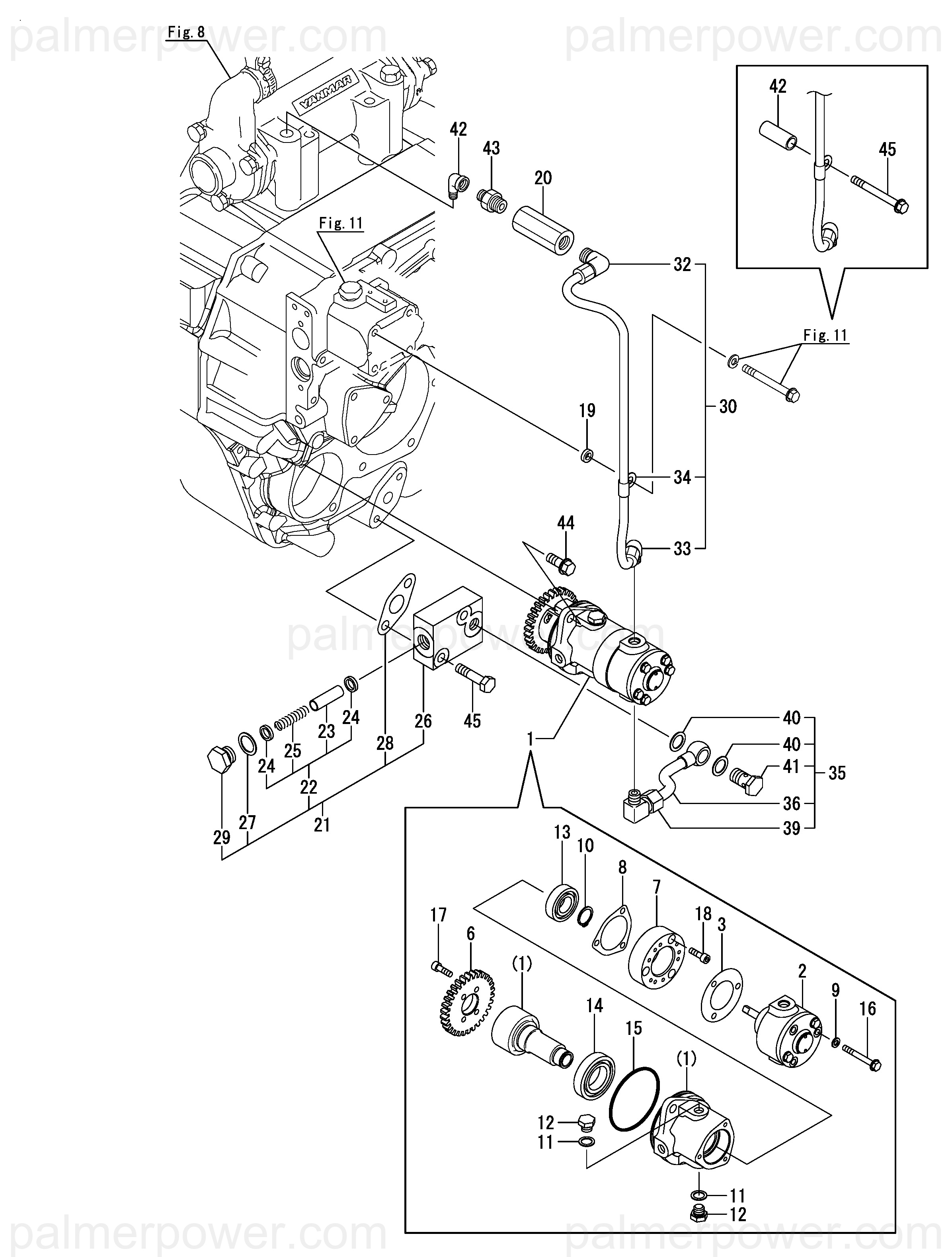

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177561-04291 Pump Assy, Trolling

Schematic Object Key : 1

Product Description : PUMP ASSY, TROLLING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 PUMP ASSY, TROLLING 177561-04291
2 PUMP 196150-04021
3 GASKET, PUMP 196150-04031
6 GEAR, GOVERNOR Z=30 177061-04391
7 SPACER 177561-04900
8 GASKET, COVER 177010-05671
9 WASHER, 6 22117-060000
10 RING, 20 22242-000200
11 GASKET, 12X1.0 23414-120000
12 PLUG, 12 23887-120002
13 BEARING, BALL 6004 24101-060044
14 BEARING, BALL 6006 24101-060064
15 O-RING, 1AG75.0 24321-000750
16 BOLT, M6X 50 PLATED 26116-060502
17 BOLT, M6X 20 26450-060202
18 BOLT, M6X 20 26450-060202
19 SPACER 177561-04310
20 VALVE, CHECK 196150-04400
21 STRAINER ASSY 177566-04890
22 STRAINER ASSY 176061-04351
23 STRAINER 176061-04361
24 RETAINER 176061-04371
25 SPRING 176061-04381
26 CASE, STRAINER 177566-04880
27 GASKET, 20X1.0 23414-200000
28 PACKING 23 23424-230000
29 PLUG 20 23884-200002
30 PIPE ASSY, OIL 177561-07041
32 CONNECTOR, 10-R3/8 23102-100031
33 ELBOW, 10XR1/4 23169-100021
34 CLAMP, A10X8 23297-100081
35 PIPE ASSY, OIL 177566-07060
36 PIPE A 177566-07150
39 ELBOW, 12XR1/4 23169-120021
40 GASKET, 16X1.0 23414-160000
41 JOINT BOLT 10 23851-100000
42 ELBOW, R3/8 23112-030000
43 NIPPLE, R3/8 23163-030000
44 BOLT, M10X 25 PLATED 26106-100252
45 BOLT, M10X 45 PLATED 26203-100452
