YANMAR 177564-07040 Pipe Assy, Oil

Write a Review
$1,554.35
SKU:
177564-07040
Schematic Object Key:
39

YANMAR 177564-07040 Pipe Assy, Oil

$1,554.35

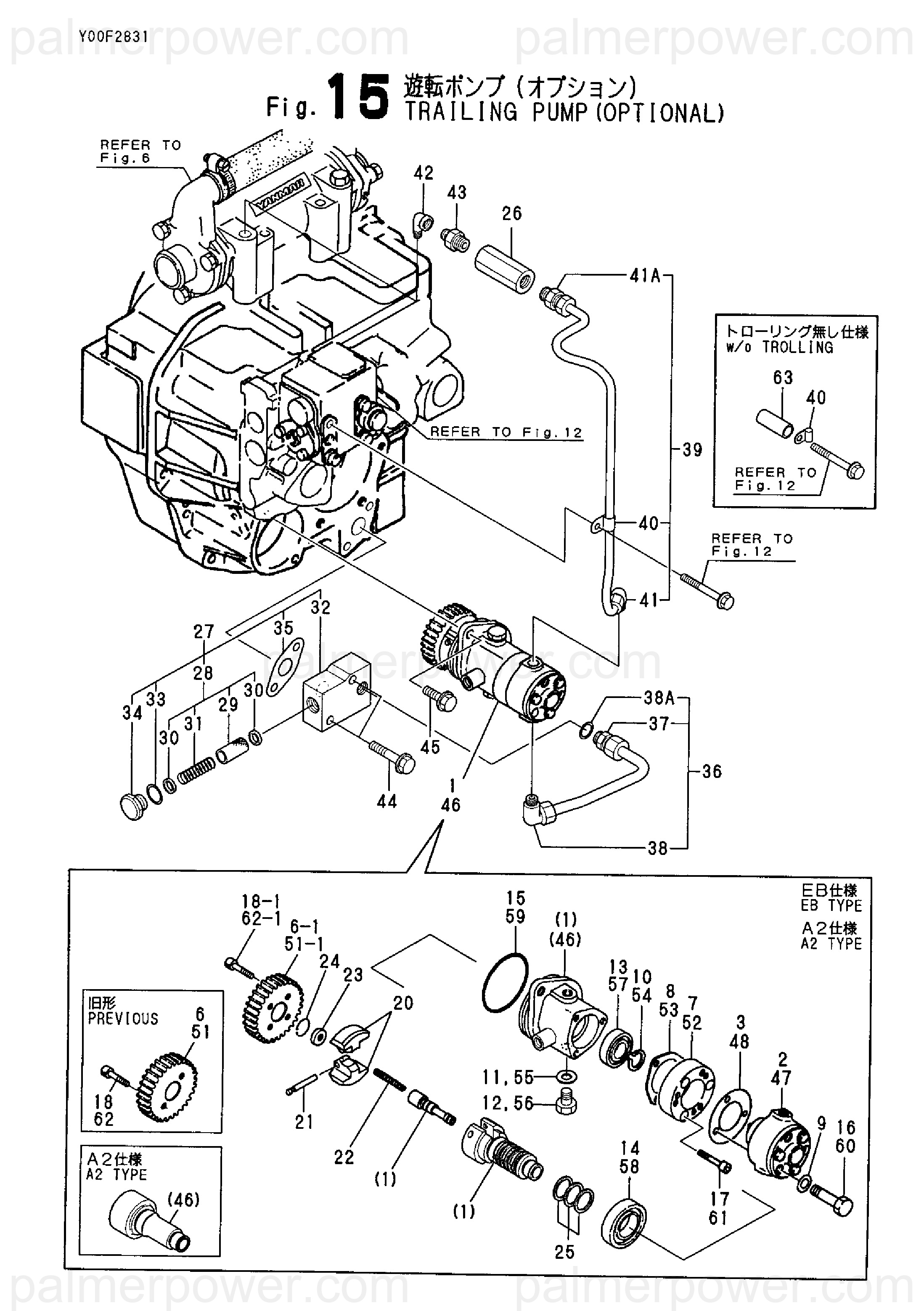

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 177564-07040 Pipe Assy, Oil

Schematic Object Key : 39

Product Description : PIPE ASSY, OIL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1 GOVERNOR ASSY 177564-04270
2 PUMP 196150-04020
2-1 PUMP 196150-04021
3 GASKET, PUMP 196150-04031
6 GEAR, GOVERNOR Z=26 177064-04390
6-1 GEAR, GOVERNOR Z=26 177064-04391
7 SPACER 177561-04900
8 GASKET, COVER 177010-05670
9 WASHER, 6 22117-060000
10 RING, 20 22242-000200
11 GASKET, 12X1.0 23414-120000
12 PLUG, 12 23887-120002
13 BEARING, BALL 6004 24101-060044
14 BEARING, BALL 6006 24101-060064
15 O-RING, 1AG75.0 24321-000750
16 BOLT, M6X 45 PLATED 26106-060452
16-1 BOLT, M6X 50 PLATED 26106-060502
17 BOLT, M6X 20 26450-060202
18 BOLT, M6X 25 26450-060252
18-1 BOLT, M6X 25 26450-060252
20 WEIGHT, B=20M/M 177061-04340
21 PIN 177061-04361
22 SPRING 177061-04370
23 RETAINER, SPRING 177061-04380
24 RING, 20 22252-000200
25 RING, SEAL 145610-83400
26 VALVE, CHECK 196150-04400
27 STRAINER ASSY 177061-04860
27-1 STRAINER ASSY 177061-04861
28 STRAINER ASSY 176061-04351
29 STRAINER 176061-04361
30 RETAINER 176061-04371
31 SPRING 176061-04381
32 CASE, STRAINER 177061-04870
32-1 CASE, STRAINER 177061-04871
33 GASKET, 20X1.0 23414-200000
34 PLUG 20 23884-200002
35 PACKING 23 23424-230000
36 PIPE ASSY, OIL 177564-07020
36-1 PIPE ASSY, OIL 177564-07021
37 CONNECTOR, 12-16 23101-120161
37-1 CONNECTOR, 12-R3/8 23102-120031
38 ELBOW, 12XR1/4 23169-120021
38A GASKET, 16X1.0 23414-160000
38A-1 GASKET, 16X1.0 23414-160000
39 PIPE ASSY, OIL 177564-07040
40 CLAMP, A10X8 23297-100081
41 ELBOW, 10XR1/4 23169-100021
41A CONNECTOR, 10-R3/8 23102-100031
42 ELBOW, R3/8 23112-030000
43 NIPPLE, R3/8 23163-030000
44 BOLT, M10X 45 PLATED 26203-100452
45 BOLT, M10X 25 PLATED 26106-100252
46 PUMP, TROLLING 177564-04290
47 PUMP 196150-04020
48 GASKET, PUMP 196150-04031
51 GEAR, GOVERNOR Z=26 177064-04390
51-1 GEAR, GOVERNOR Z=26 177064-04391
52 SPACER 177561-04900
53 GASKET, COVER 177010-05670
54 RING, 20 22242-000200
55 GASKET, 12X1.0 23414-120016
56 PLUG, 12 23887-120002
57 BEARING, BALL 6004 24101-060044
58 BEARING, BALL 6006 24101-060064
59 O-RING, 1AG75.0 24321-000750
60 BOLT, M6X 45 PLATED 26116-060452
61 BOLT, M6X 20 26450-060202
62 BOLT, M6X 25 26450-060252
62-1 BOLT, M6X 25 26450-060252
63 SPACER, L=69 144626-77340
