YANMAR 196315-02240 Guard, Joint

Write a Review
$108.56
SKU:
196315-02240
Schematic Object Key:
19

YANMAR 196315-02240 Guard, Joint

$108.56

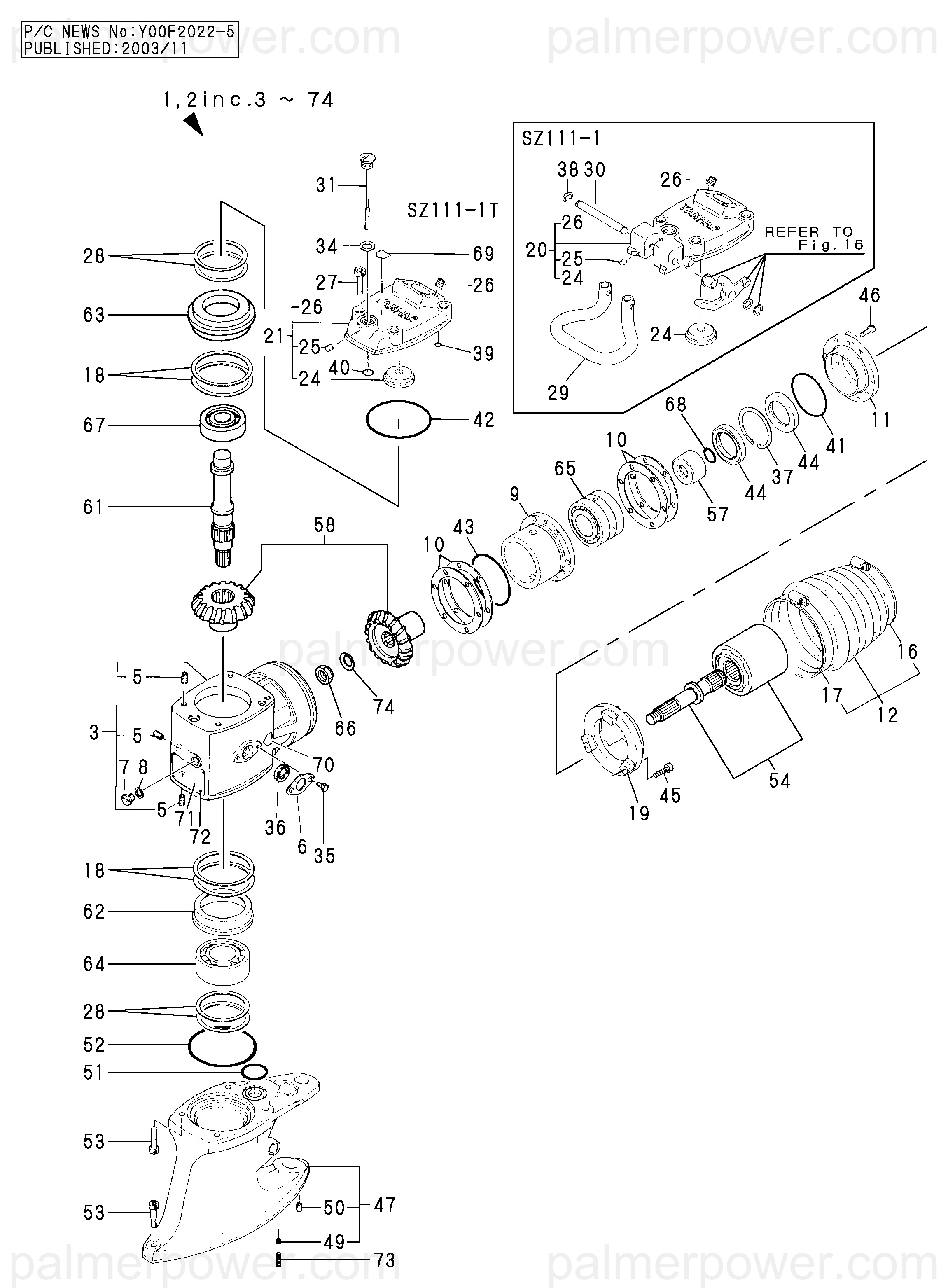

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196315-02240 Guard, Joint

Schematic Object Key : 19

Product Description : GUARD, JOINT 196315-02240

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 HOUSING ASSY, GEAR 796323-02970
3 CASE ASSY, GEAR 196322-02010
5 INSERT, 8X1.5D 26273-080151
6 RETAINER 196320-02090
7 PLUG, M10X10 189010-01120
8 GASKET 189010-01130
9 HOUSING, BEARING 196322-02110
10 SHIM SET, 90/114 196322-02120
11 CASE, OIL SEAL 196322-02180
12 PROTECTION ASSY 196311-02190
16 CLAMP, HOSE 77-95 196311-02231
17 CLIP, HOSE 104-138 196340-02211
18 SHIM SET, 90/97 196322-02230
19 GUARD, JOINT 196315-02240
21 COVER ASSY 196315-02310
21-1 COVER ASSY, UPPER 196315-02311
24 CAP 196320-02310
25 PLUG, 4X 5 27225-040050
26 INSERT, 8X1.5D 26273-080151
27 BOLT, M8X 35 26453-080352
28 SHIM SET, 75/85 196322-02320
31 DIPSTICK ASSY, L=132 196320-02410
34 GASKET, 14.5X1.5 196311-02440
35 SCREW, M6X8 196313-03900
36 GAUGE, OIL LEVEL 196312-06400
37 RING, 62 22252-000620
39 O-RING, 1AP9.0 24311-000090
40 O-RING, 1AP11.0 24311-000110
41 O-RING, 1AG75.0 24321-000750
42 O-RING, 1AG100.0 24321-001000
43 O-RING, 1AS85.0 24341-000850
44 SEAL, OIL SC456209 24413-456209
45 BOLT, M6X 30 26450-060302
46 BOLT, M6X 30 26450-060302
47 HOUSING ASSY 196315-02400
49 INSERT, 6X1.5D 26273-060151
50 INSERT, 8X1.5D 26273-080151
51 O-RING, 1AG30.0 24321-000300
52 O-RING, 1AG100.0 24321-001000
53 BOLT, M8X 35 26453-080352
54 SHAFT ASSY, PINION 196316-04100
57 COLLAR, SHAFT 196320-04140
58 GEAR SET, UPPER 196323-04151
61 SHAFT, GEAR 196316-04300
62 SLEEVE, BEARING 196322-04350
63 HOUSING, BEARING 196323-04380
64 BEARING, 3209C3 196322-04760
65 BEARING 196322-04780
66 NUT, M16 196315-04920
67 BEARING, BALL 6305 24101-063054
68 O-RING, 1AP24.0 24311-000240
69 LABEL 196312-02291
70 LABEL 196312-06371
71 LABEL 196316-02070
72 RIVET, 2X5 196311-02060
73 STUD, M6X 14 26213-060142
74 WASHER 196315-04930

YANMAR 196315-02240 Guard, Joint
