YANMAR 196320-02110 Housing, Bearing

Write a Review
$702.25
SKU:
196320-02110

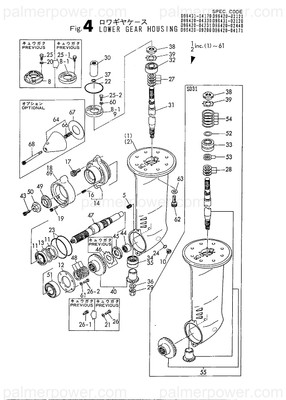

Schematic Object Key:
9

YANMAR 196320-02110 Housing, Bearing

$702.25

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196320-02110 Housing, Bearing

Schematic Object Key : 9

Product Description : HOUSING, BEARING 196320-02110

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
2 CASE ASSY, GEAR 796316-02950
3 CASE ASSY, GEAR 196320-02010
5 INSERT, 8X1.5D 26273-080151
6 PLUG, M10X10 189010-01120
7 GASKET 189010-01130
8 RETAINER 196320-02090
9 HOUSING, BEARING 196320-02110
10 SHIM SET, 85/110 196320-02120
11 CASE, OIL SEAL 196320-02180
12 PROTECTION ASSY 196311-02190
13 CLAMP, HOSE 196311-02230
13-1 CLAMP, HOSE 77-95 196311-02231
14 CLAMP, HOSE 196311-02240
14-1 CLIP, HOSE 104-138 196340-02211
15 GUARD, JOINT 196315-02220
16 SHIM SET, 85/92 196320-02230
17 SHIM SET, 70/80 196320-02320
18 DIPSTICK ASSY, L=132 196320-02410
19 GASKET, 14.5X1.5 196311-02440
20 SHIM SET, 66/72 196320-02720
21 SCREW, M6X8 196313-03900
22 GAUGE, OIL LEVEL 196312-06400
23 RING, 62 22252-000620
24 O-RING, 1AP9.0 24311-000090
25 O-RING, 1AP11.0 24311-000110
26 O-RING, 1AG75.0 24321-000750
27 O-RING, 1AG95.0 24321-000950
28 O-RING, 1AS80.0 24341-000800
29 SEAL, OIL SC456209 24413-456209
30 BOLT, M6X 30 26450-060302
31 BOLT, M6X 30 26450-060302
32 BOLT, M8X 35 26453-080352
34 COVER ASSY 196320-02291
37 CAP 196320-02310
39 INSERT, 8X1.5D 26273-080151
40 PLUG, 4X 5 27225-040050
44 HOUSING ASSY 196315-02380
46 INSERT, 6X1.5D 26273-060151
47 INSERT, 8X1.5D 26273-080151
48 O-RING, 1AG30.0 24321-000300
49 O-RING, 1AG95.0 24321-000950
50 BOLT, M8X 35 26453-080352
51 SHAFT ASSY, PINION 196316-04100
54 COLLAR, SHAFT 196320-04140
55 GEAR SET 196316-04150
58 SHAFT, GEAR 196316-04300
59 SLEEVE, BEARING 196320-04350
60 HOUSING, BEARING 196316-04380
61 BEARING 196315-04760
61-1 BEARING, BALL 5208C3 24512-052080
62 BEARING 196320-04780
63 NUT, FLANGE 196320-04920
63-1 NUT 196322-04920
63-2 NUT, M16 196315-04920
64 BEARING, BALL 6305 24101-063054
65 O-RING, 1AP24.0 24311-000240
66 LABEL 196312-02290
66-1 LABEL 196312-02291
67 LABEL 196312-06370
67-1 LABEL 196312-06371
68 LABEL,SZ110 196316-02050
69 RIVET, 2X5 196311-02060
70 STUD, M6X 14 26213-060142
71 WASHER 196315-04930
