YANMAR 196323-02050 Label

Write a Review
$75.44
SKU:
196323-02050
Schematic Object Key:
38A

YANMAR 196323-02050 Label

$75.44

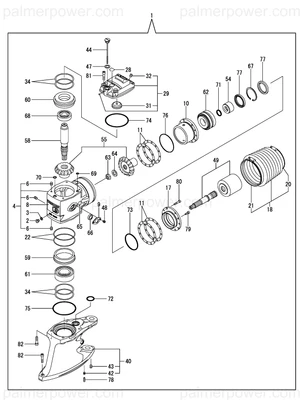

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

YANMAR 196323-02050 Label

Schematic Object Key : 38A

Product Description : LABEL

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Ref Description Part No.
1A CASE ASSY, GEAR 796323-02900
2 PLUG, M10X10 189010-01120
3 GASKET 189010-01130
4 CASE ASSY, GEAR 196322-02010
6 INSERT, 8X1.5D 26273-080151
7 RETAINER 196320-02090
8 HOUSING, BEARING 196322-02110
9 SHIM SET, 90/114 196322-02120
10 CASE, OIL SEAL 196322-02180
11 PROTECTION ASSY 196320-02190
13 CLAMP, HOSE 196320-02210
13-1 CLIP, HOSE 87-112 196320-02211
14 CLAMP, HOSE 196311-02240
14-1 CLIP, HOSE 104-138 196340-02211
15 SHIM SET, 90/97 196322-02230
16 COVER ASSY 196322-02290
16-1 COVER ASSY, UPPER 196322-02291
18 CAP 196320-02310
19 INSERT, 6X1.5D 26273-060151
21 SHIM SET, 75/85 196322-02320
22 DIPSTICK ASSY, L=132 196320-02410
25 GASKET, 14.5X1.5 196311-02440
26 SCREW, M6X8 196313-03900
27 GAUGE, OIL LEVEL 196312-06400
28 RING, 62 22252-000620
29 O-RING, 1AP9.0 24311-000090
30 O-RING, 1AP11.0 24311-000110
31 O-RING, 1AG75.0 24321-000750
32 O-RING, 1AG100.0 24321-001000
33 O-RING, 1AS85.0 24341-000850
34 SEAL, OIL SC456209 24413-456209
35 BOLT, M6X 16 26450-060162
36 BOLT, M6X 30 26450-060302
37 BOLT, M8X 35 26453-080352
38A LABEL 196323-02050
39 RIVET, 2X5 196311-02060
40 HOUSING ASSY 196322-02380
42 INSERT, 6X1.5D 26273-060151
43 INSERT, 8X1.5D 26273-080151
44 O-RING, 1AG30.0 24321-000300
45 O-RING, 1AG100.0 24321-001000
46 BOLT, M8X 35 26453-080352
47A SHAFT ASSY, PINION 196316-04100
50 COLLAR, SHAFT 196320-04140
51A GEAR SET 196323-04150
51A-1 GEAR SET, UPPER 196323-04151
54A SHAFT, GEAR 196316-04300
54A-1 SHAFT, GEAR 196316-04301
55 SLEEVE, BEARING 196322-04350
56 HOUSING, BEARING 196323-04380
57 BEARING, 3209C3 196322-04760
58 BEARING 196322-04780
58-1 BEARING 196322-04781
59 NUT, FLANGE 196320-04920
59-1 NUT 196322-04920
59-2 NUT, M16 196315-04920
59A WASHER 196315-04930
60 BEARING, BALL 6305 24101-063054
61 O-RING, 1AP24.0 24311-000240
62 LABEL 196312-02290
62-1 LABEL 196312-02291
63 LABEL 196312-06370
63-1 LABEL 196312-06371
64 STUD, M6X 14 26213-060142
